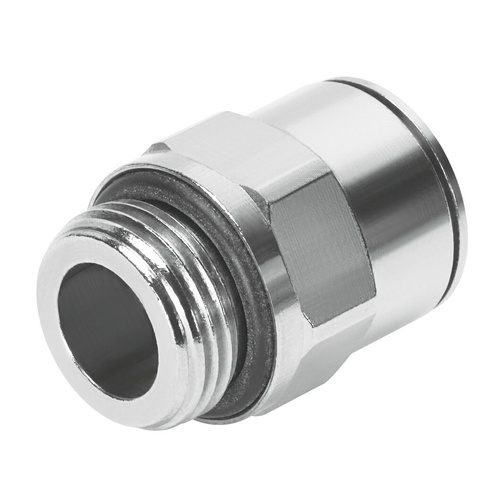

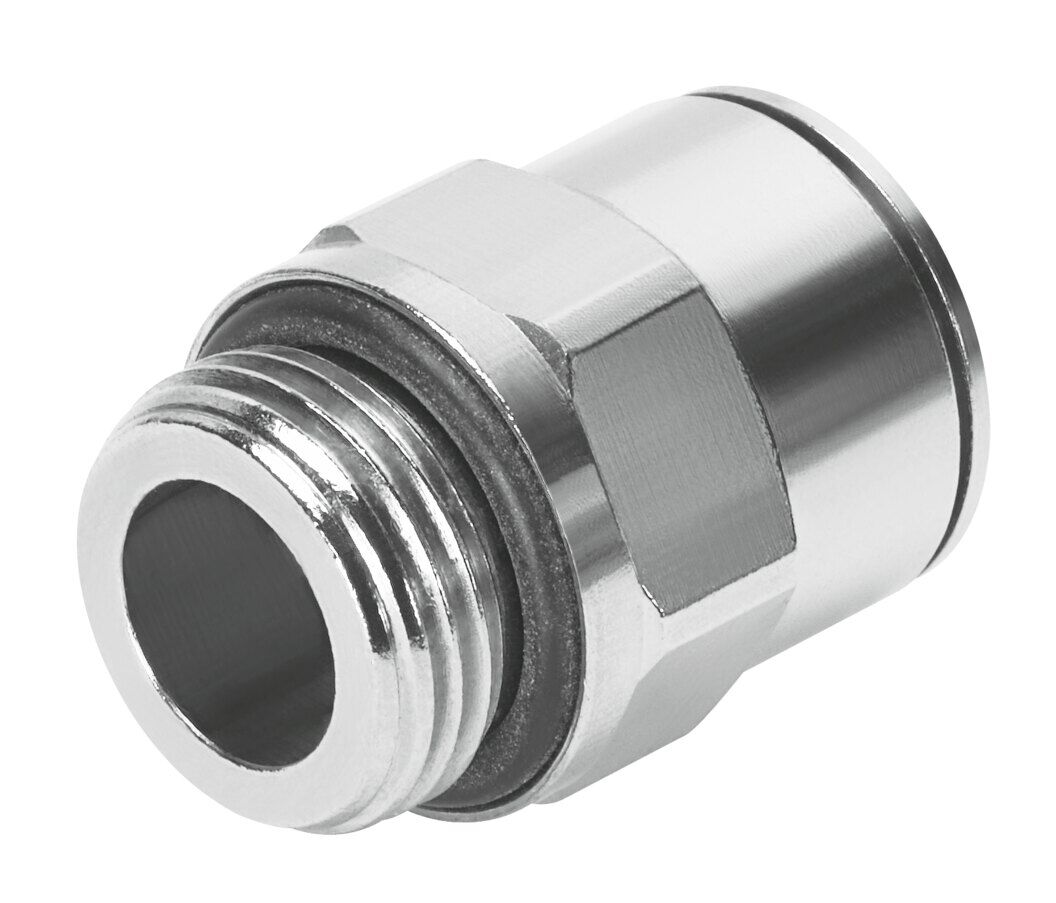

Push-in fitting

NPQM-D-G38-Q12-P10

558670





GTIN: 4052568054663

Pneumatic connection, port 1
Male thread G3/8
Pneumatic connection, port 2
For tubing outer diameter of 12 mm
Operating pressure complete temperature range
-0.95 bar - 16 bar
Ambient temperature
-20 °C - 70 °C
Nominal size
10 mm

Technical Data

  • SizeStandard
  • Nominal size10 mm
  • Type of seal on screwed plugSealing ring
  • DesignStraight design
  • Size of pack10
  • DesignPush-pull principle
  • Operating pressure complete temperature range-0.095 MPa ... 1.6 MPa
  • Operating pressure complete temperature range-0.95 bar ... 16 bar
  • Operating pressure complete temperature range-13.775 psi ... 232 psi
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-20 °C ... 70 °C
  • Nominal torque9 Nm
  • Tolerance for nominal tightening torque± 20%
  • Product weight28.9 g
  • Type of mountingExternal hexagon, A/F 19 mm Internal hexagon, size 10 mm
  • Pneumatic connection, port 1Male thread G3/8
  • Pneumatic connection, port 2For tubing outer diameter of 12 mm
  • Colour of release ringSilver
  • Note on materialsRoHS-compliant
  • Material housingBrass, nickel-plated
  • Material tubing sealNBR



SKU 558670
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
