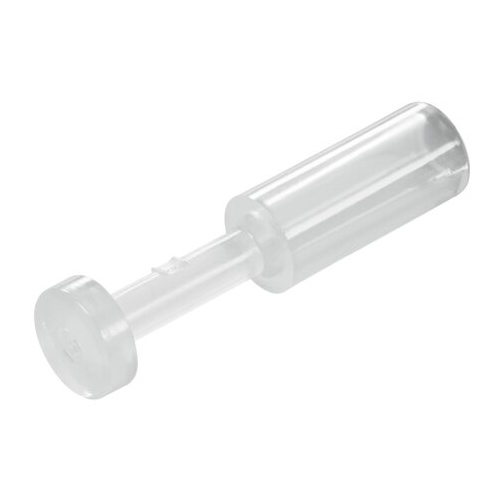

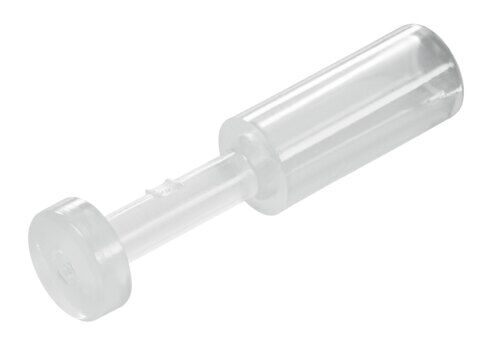

Blanking plug

NPQP-P-S6-FD-P10

133129





GTIN: 4052568030094

Pneumatic connection, port 1
Push-in sleeve Ø 6 mm
Temperature-dependent operating pressure
-0.95 bar - 10 bar
Ambient temperature
-20 °C - 60 °C

Technical Data

  • SizeStandard
  • DesignBlanking plug
  • Size of pack10
  • DesignPush-pull principle
  • Operating pressure complete temperature range-0.095 MPa ... 0.45 MPa
  • Operating pressure complete temperature range-0.95 bar ... 4.5 bar
  • Operating pressure complete temperature range-13.775 psi ... 65.25 psi
  • Temperature-dependent operating pressure-0.095 MPa ... 1 MPa
  • Temperature-dependent operating pressure-0.95 bar ... 10 bar
  • Temperature-dependent operating pressure-13.775 psi ... 145 psi
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible
  • Corrosion resistance class CRC4 - Very high corrosion stress
  • LABS (PWIS) conformityVDMA24364 zone III
  • Suitable for use with foodSee supplementary material information
  • Ambient temperature-20 °C ... 60 °C
  • Product weight0.5 g
  • Pneumatic connection, port 1Push-in sleeve Ø 6 mm
  • Note on materialsRoHS-compliant
  • Material housingPP
  • Material tubing clamp componentHigh-alloy stainless steel





SKU 133129
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
