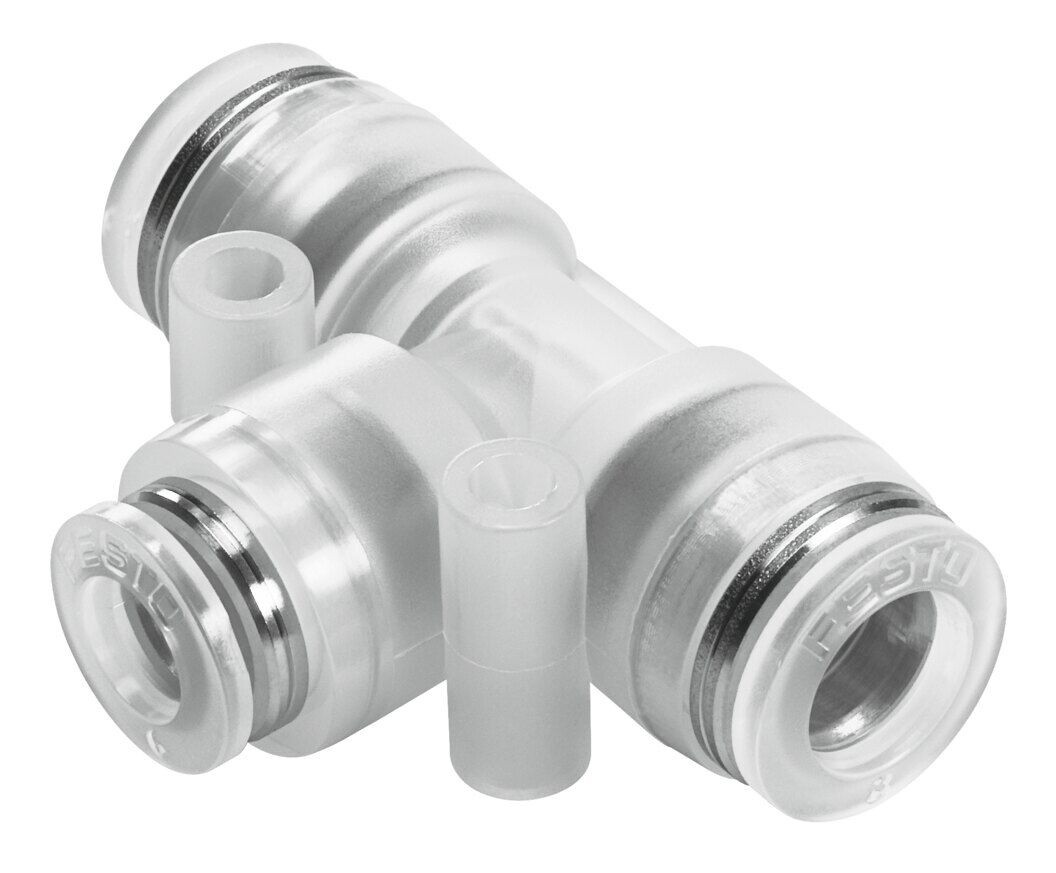

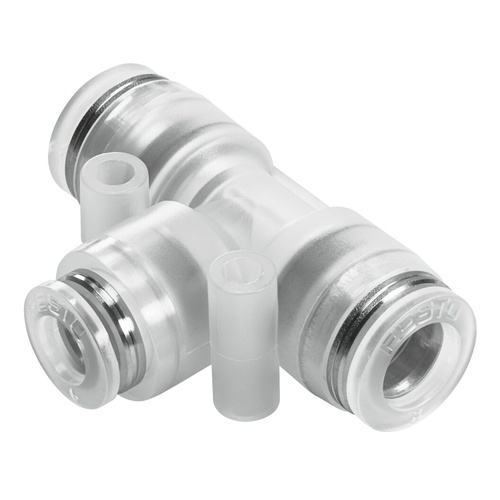

Push-in T-connector

NPQP-T-Q12-Q10-FD-P10

133118





GTIN: 4052568029982

Pneumatic connection, port 1
For tubing outer diameter of 12 mm
Pneumatic connection, port 2
For tubing outside diameter of 10 mm
Temperature-dependent operating pressure
-0.95 bar - 10 bar
Ambient temperature
-20 °C - 60 °C
Nominal size
6.4 mm

Technical Data

  • SizeStandard
  • Nominal size6.4 mm
  • DesignT-shape
  • Size of pack10
  • DesignPush-pull principle
  • Operating pressure complete temperature range-0.095 MPa ... 0.45 MPa
  • Operating pressure complete temperature range-0.95 bar ... 4.5 bar
  • Operating pressure complete temperature range-13.775 psi ... 65.25 psi
  • Temperature-dependent operating pressure-0.095 MPa ... 1 MPa
  • Temperature-dependent operating pressure-0.95 bar ... 10 bar
  • Temperature-dependent operating pressure-13.775 psi ... 145 psi
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible
  • Corrosion resistance class CRC4 - Very high corrosion stress
  • LABS (PWIS) conformityVDMA24364 zone III
  • Suitable for use with foodSee supplementary material information
  • Ambient temperature-20 °C ... 60 °C
  • Product weight28 g
  • Pneumatic connection, port 1For tubing outer diameter of 12 mm
  • Pneumatic connection, port 2For tubing outside diameter of 10 mm
  • Colour of release ringTransparent white
  • Note on materialsRoHS-compliant
  • Material housingPP
  • Material tubing clamp componentHigh-alloy stainless steel





SKU 133118
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
