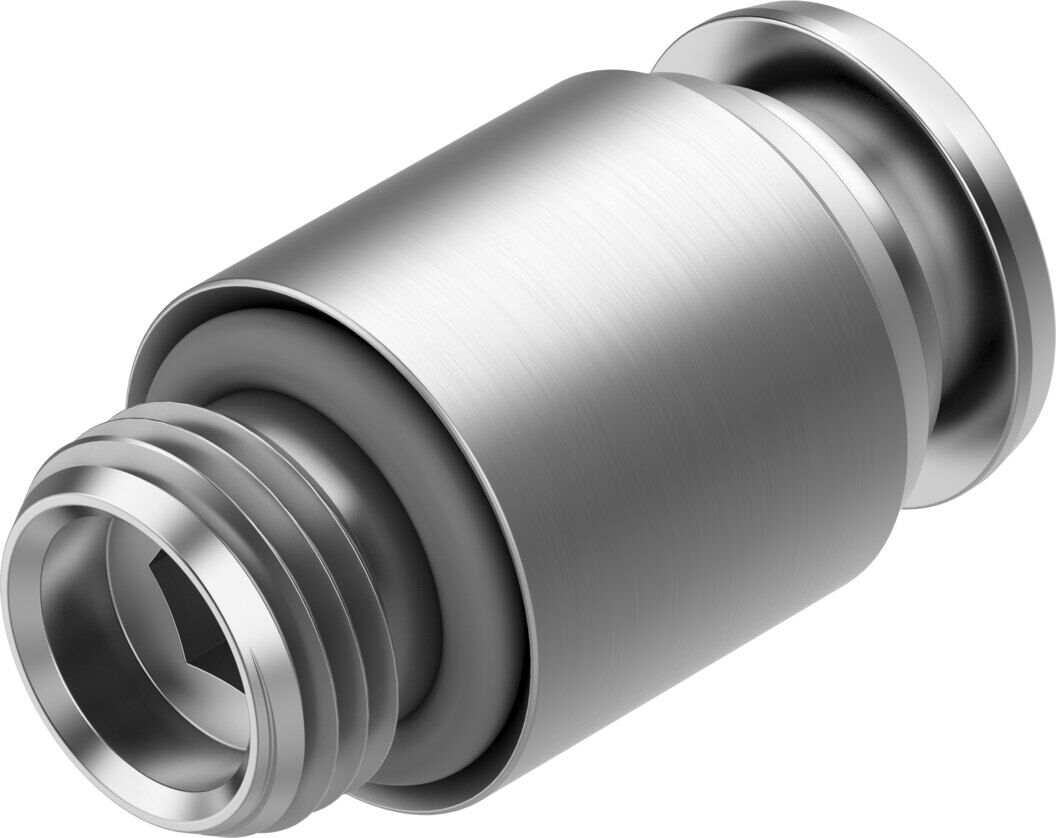

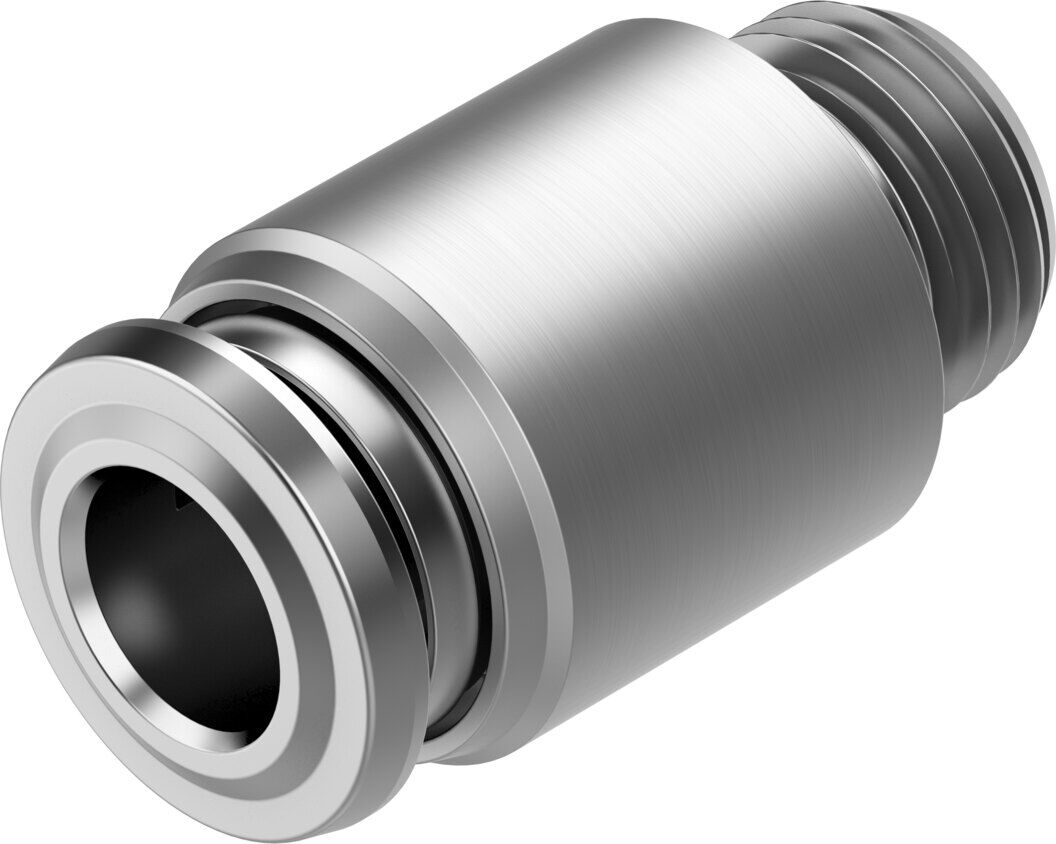

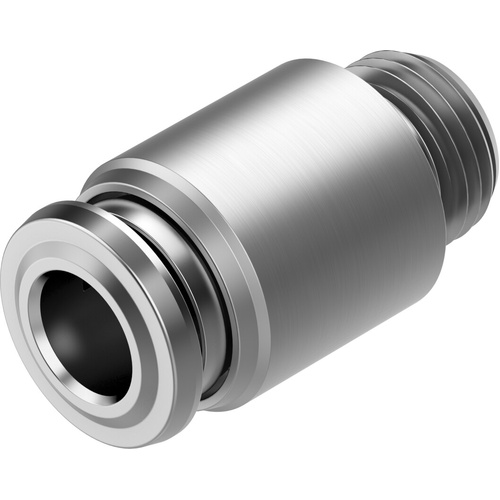

Push-in fitting

NPQR-DK-G18-Q8

8085663





GTIN: 4052568451059

Pneumatic connection, port 1
Male thread G1/8
Pneumatic connection, port 2
For tubing outside diameter of 8 mm
Operating pressure complete temperature range
-0.95 bar - 16 bar
Ambient temperature
-20 °C - 150 °C
Nominal size
5.3 mm

Technical Data

  • SizeStandard
  • Nominal size5.3 mm
  • Tubing insertion depth16.8 mm
  • Type of seal on screwed plugSealing ring
  • Mounting positionoptional
  • DesignStraight design
  • Size of pack1
  • DesignPush-pull principle
  • Symbol00997424
  • Operating pressure complete temperature range-0.095 MPa ... 1.6 MPa
  • Operating pressure complete temperature range-0.95 bar ... 16 bar
  • Operating pressure complete temperature range-13.775 psi ... 232 psi
  • Note on operating pressureWater: max. 0.7 MPa at 0 - 80 °C
  • Certificate issuing authorityNSF C0556009
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
  • Note on operating and pilot mediumLubricated operation possible
  • Corrosion resistance class CRC4 - Very high corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
  • Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
  • Suitable for use with foodSee declaration of conformity NSF/ANSI 169
  • Ambient temperature-20 °C ... 150 °C
  • Nominal torque6 Nm
  • Tolerance for nominal tightening torque± 20%
  • Product weight14.7 g
  • Type of mountingInternal hexagon, size 5 mm
  • Pneumatic connection, port 1Male thread G1/8
  • Pneumatic connection, port 2For tubing outside diameter of 8 mm
  • Colour of release ringSilver
  • Note on materialsRoHS-compliant
  • Material housingHigh-alloy stainless steel
  • Material thread sealFPM
  • Guard ring materialHigh-alloy stainless steel
  • Material release ringHigh-alloy stainless steel
  • Material tubing sealFPM
  • Material tubing clamp componentHigh-alloy stainless steel
  • Thrust ring materialPPSU





SKU 8085663
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
