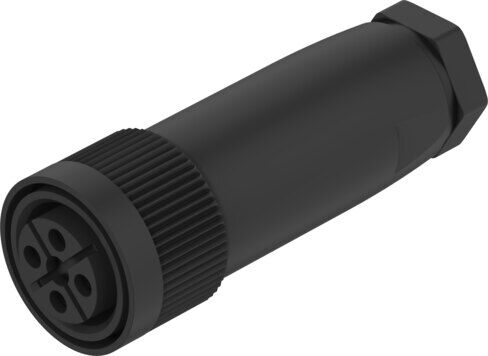

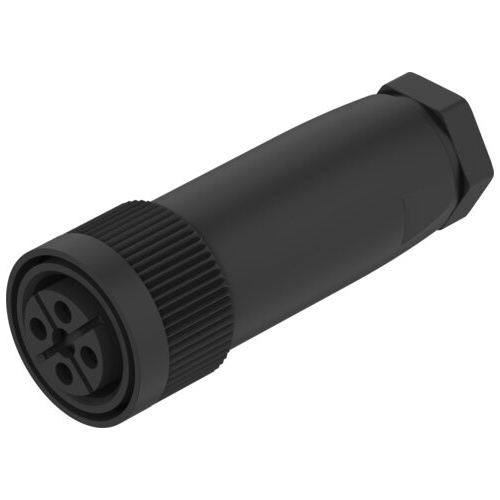

Power supply socketNTSD-GD-13,5

18526

GTIN: 4052568022273

Electrical connection
4-pin - Straight socket - Screw terminal
Connection cross section
2.5 mm²
Degree of protection
IP67



Technical Data Power supply socket NTSD-GD-13,5

  • Type of mountingWith union nut
  • Mounting positionAny
  • Product weight31 g
  • Electrical connection4-pin Straight socket Screw terminal
  • Operational voltage range AC≤250 V
  • Permissible current load16 A
  • Cable fittingPg13
  • Permissible cable diameter10 mm ... 12 mm
  • Connection cross section2.5 mm²
  • Degree of protectionIP67
  • Ambient temperature-5 °C ... 50 °C
  • Storage temperature-20 °C ... 70 °C
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Material housingPBT
  • Material electrical contactCopper alloy Brass
SKU 18526
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
