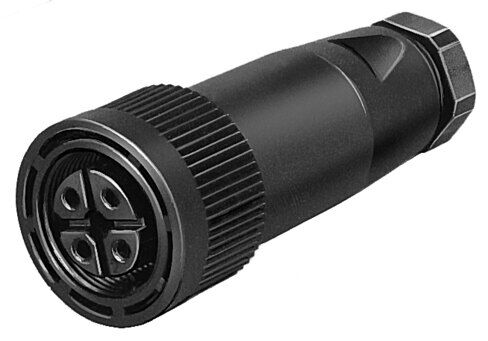

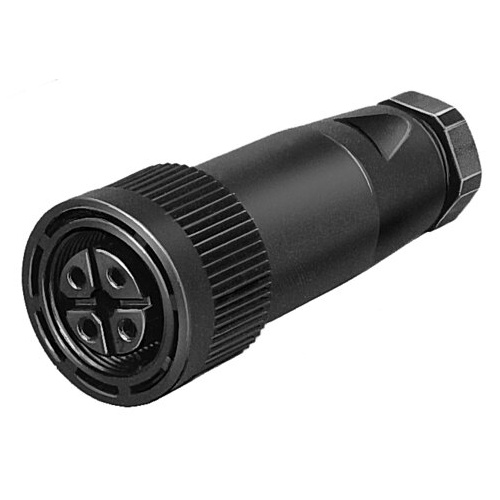

Plug socketNTSD-GD-9

18493

GTIN: 4052568002930

Electrical connection
4-pin - Straight socket - Screw terminal
Connection cross section
1.5 mm²
Degree of protection
IP67



Technical Data Plug socket NTSD-GD-9

  • Type of mountingWith union nut
  • Mounting positionAny
  • Product weight25 g
  • Electrical connection4-pin Straight socket Screw terminal
  • Operational voltage range AC≤250 V
  • Permissible current load16 A
  • Cable fittingPg9
  • Permissible cable diameter6 mm ... 8 mm
  • Connection cross section1.5 mm²
  • Degree of protectionIP67
  • Ambient temperature-5 °C ... 50 °C
  • Storage temperature-20 °C ... 70 °C
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Material housingPBT
  • Material electrical contactCopper alloy Brass
SKU 18493
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
