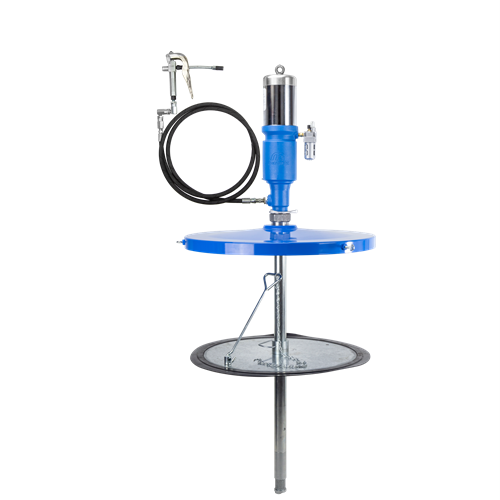

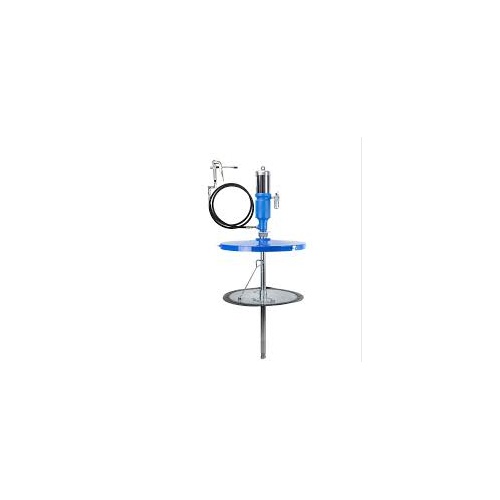

P58GLF-01 P58 GREASE PUMP LID, FOLLOWER, HOSE & GUN (W/o PUMP)

$956.00


P58 GREASE PUMP LID, FOLLOWER, HOSE & GUN (W/o PUMP)

Features & Benefits

  • Heavy duty construction - reliable long service life
  • High flow up to 6kg /min (free flow) - fast high pressure greasing
  • High-quality components to ensure reliable operation in the harshest environments.
  • Large silencer that is incorporated into the aluminium alloy pump body to prevent icing and less noise
  • Quick grease line pressure recovery - Instant greasing
  • Large pump suitable for long grease line delivery - Ideal for large workshops with long greasing distances
  • Fully repairable - Spare parts availability
  • 10 Year warranty - peace of mind
  • Low Air consumption – 23.5cfm

P58PGLF-01

Technical Specifications

  • Pressure Ratio - 58:1
  • Compatible with 180kg (400lb) drums
  • Air Pressure Operating Range - 60 to 150psi (413kPa to 1,034kPa)
  • Max Fluid Outlet Pressure - 8700psi (59,900 kPa)
  • Max Free Flow Delivery Rate - 6 kg/min (13lb/min) [@120psi pressure, 20°C (68°F)]
  • Noise Level - 85 dB(A) (@120 psi)
  • Air Inlet Size - 1/4" BSPT
  • Fluid Outlet Size - 3/8" BSPT
  • Grease viscosity up to NLGI No.2
  • Supplied with Lid and Follower suitable for 180Kgs (400lbs), Hose and B2 Booster Gun
  • Wetted Components - Aluminium, Nitrile Rubber, Zinc Plated Carbon Steel, Carbon PTFE

(P58GLF-01)

SKU P58GLF-01
Brand Macnaught
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.080m
