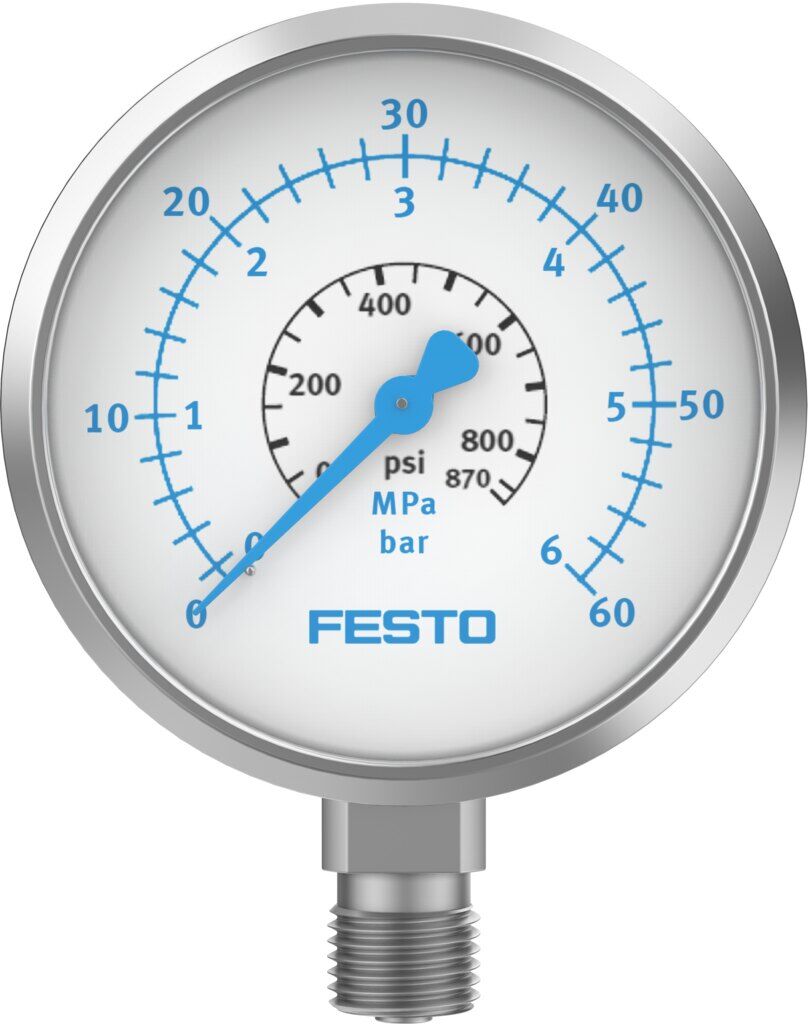

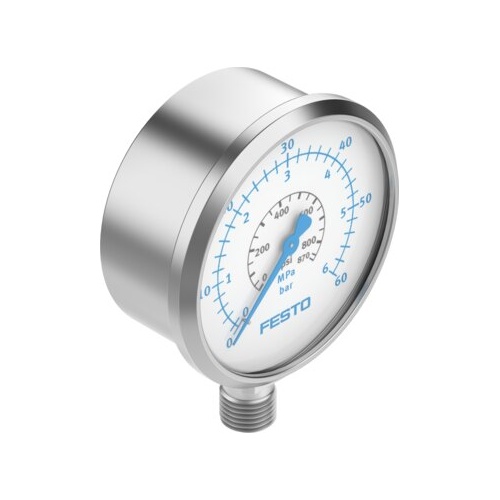

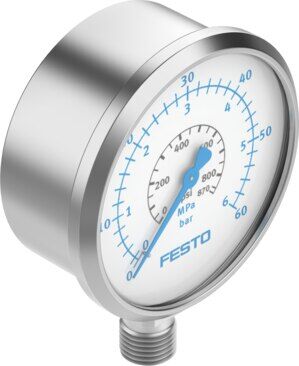

Pressure gaugePAGL-HP3-63-60-G14-RC

1908519

GTIN: 4052568264307

Type of mounting
Inline installation
Indicating range
0 bar - 60 bar
Pneumatic connection
G1/4
Measurement accuracy class
1.6



Technical Data Pressure gauge PAGL-HP3-63-60-G14-RC

  • Indicating range0 bar ... 60 bar
  • Indicating range0 MPa ... 6 MPa
  • Indicating range0 psi ... 870 psi
  • Symbol00991463
  • Conforms to standardEN 837-1
  • Nominal size of pressure gauge63
  • Explosion protectionThe information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
  • DesignBourdon tube pressure gauge
  • Type of mountingInline installation
  • Operating mediumInert gas Neutral fluids
  • Note on operating and pilot mediumNo acetylene No oxygen
  • Operating pressure0 MPa ... 6 MPa
  • Operating pressure0 bar ... 60 bar
  • Operating pressure0 psi ... 870 psi
  • Alternating load factor0.66
  • Measurement accuracy class1.6
  • Degree of protectionIP65
  • Storage temperature-40 °C ... 70 °C
  • Media temperature0 °C ... 60 °C
  • Ambient temperature0 °C ... 60 °C
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Note on materialsRoHS compliant
  • Position of connectionRadial, underneath
  • Pneumatic connectionG1/4
  • Material in contact with the mediumBrass
  • Material screwed plugBrass
  • Material housingSteel
  • Material screenHorse power
  • Housing colourSilver
  • Product weight80 g
  • ScaleTriple scale MPa (outer scale) Bar (external) psi (inner scale)



SKU 1908519
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
