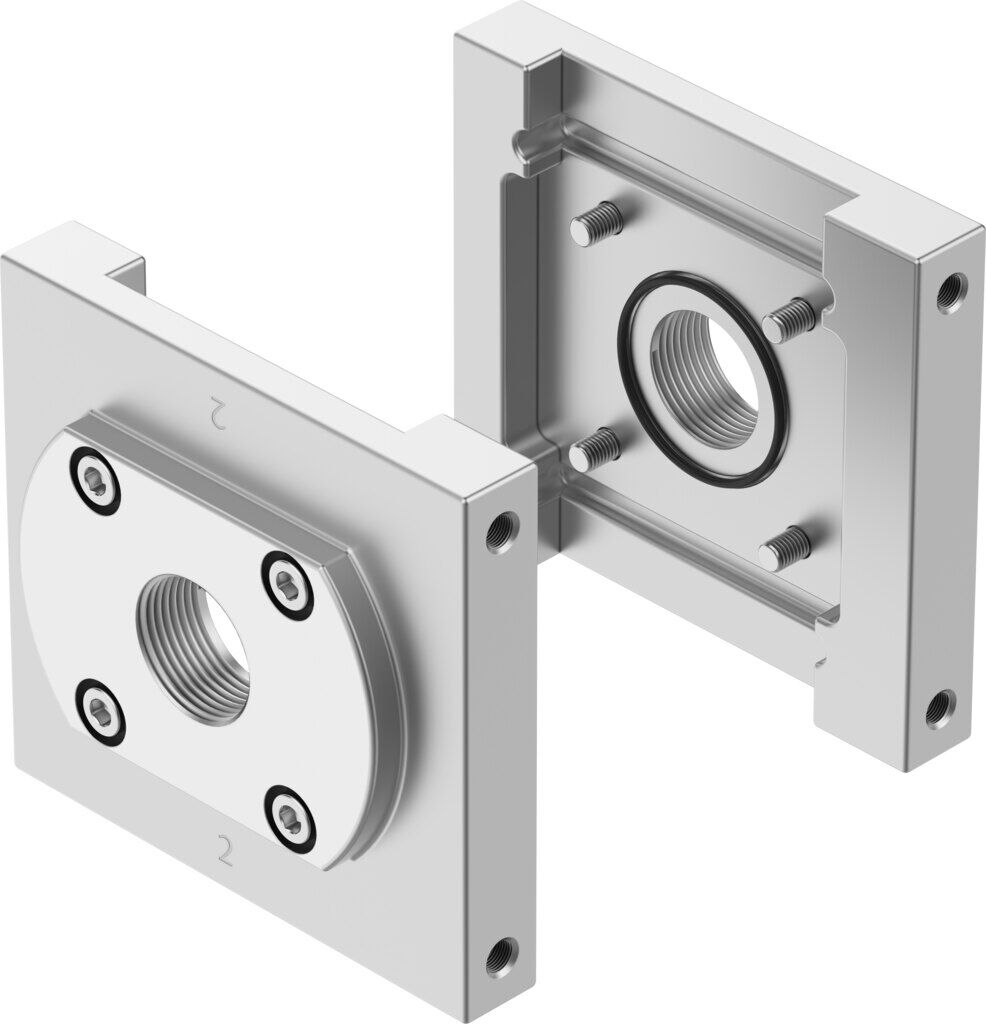

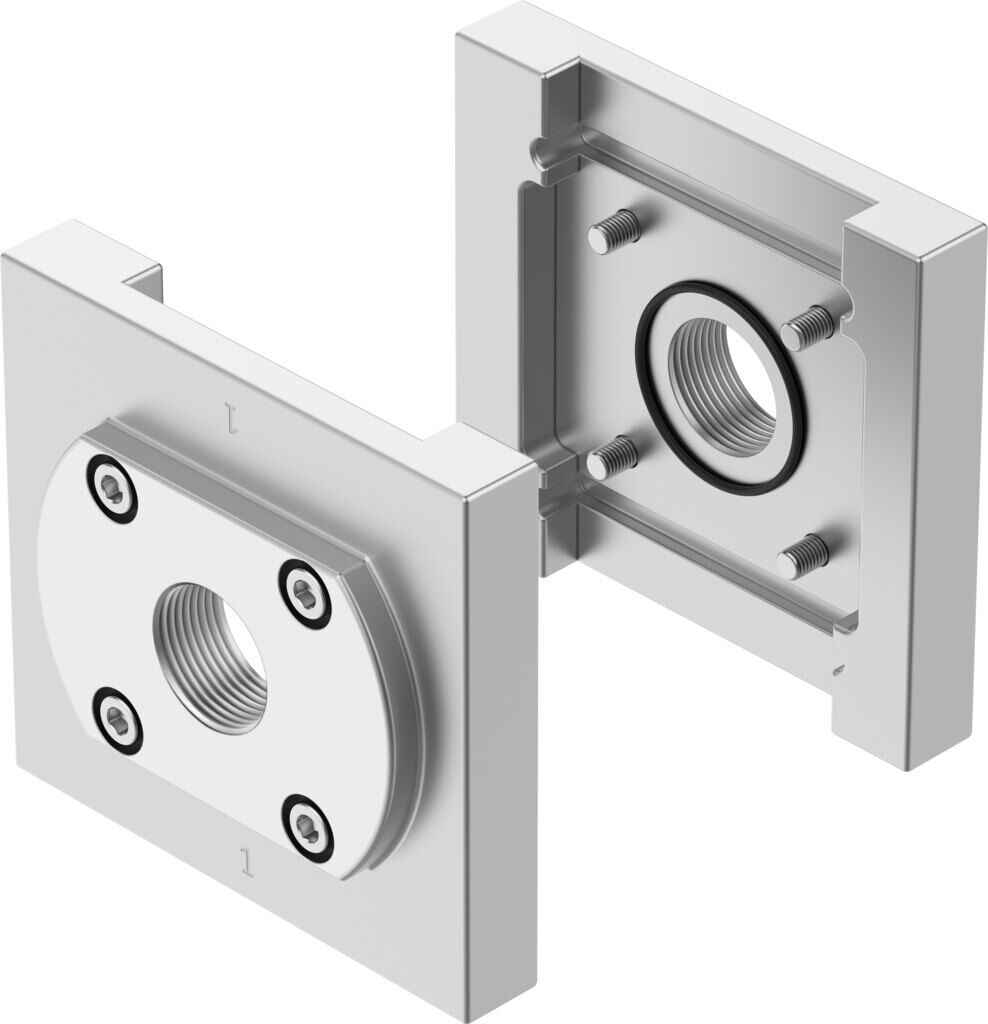

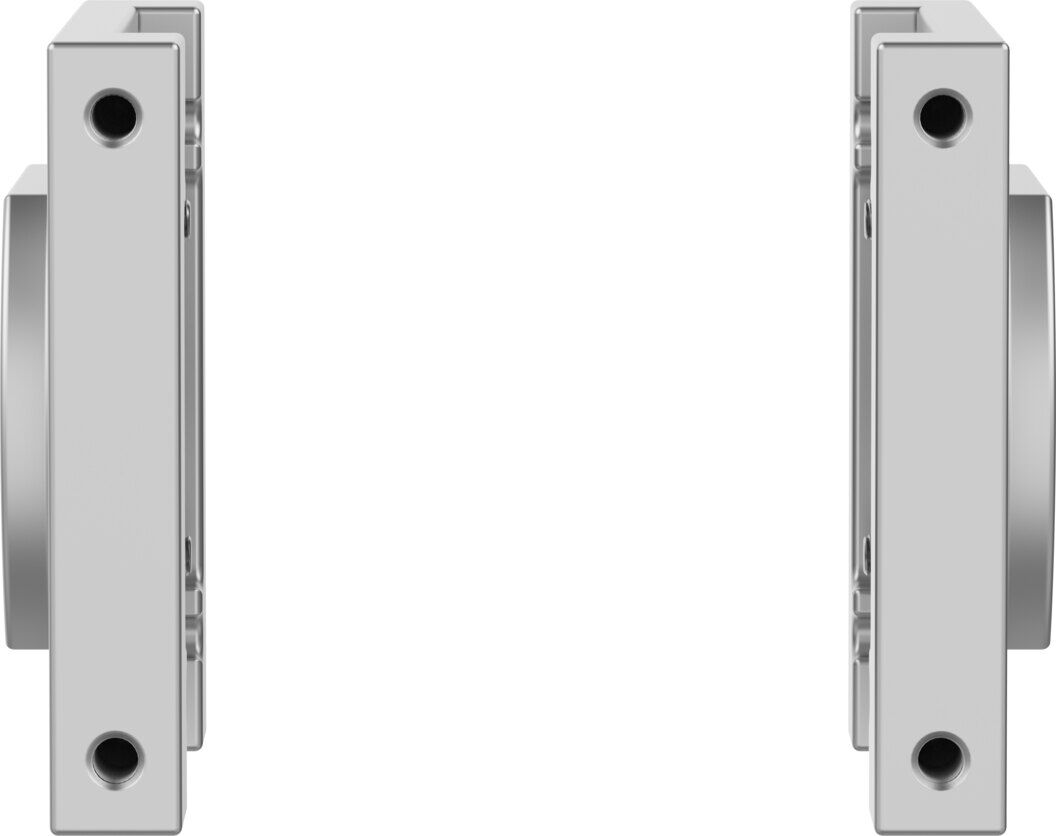

Sub-base

PAML-CP-186-HP3-G112

1629297





GTIN: 4052568263669

Technical Data

  • Size186
  • Nominal size DN54
  • SeriesL
  • Operating pressure0 MPa ... 5 MPa
  • Operating pressure0 bar ... 50 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [-:-:-]
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Storage temperature-10 °C ... 60 °C
  • Suitable for use with foodSee supplementary material information
  • Media temperature5 °C ... 60 °C
  • Ambient temperature5 °C ... 60 °C
  • Product weight4500 g
  • Pneumatic connection, port 1G1 1/2
  • Pneumatic connection, port 2G1 1/2
  • Note on materialsRoHS compliant
  • Material sub-baseWrought aluminium alloy
  • Material sealsNBR
  • Material screwsStainless steel





SKU 1629297
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
