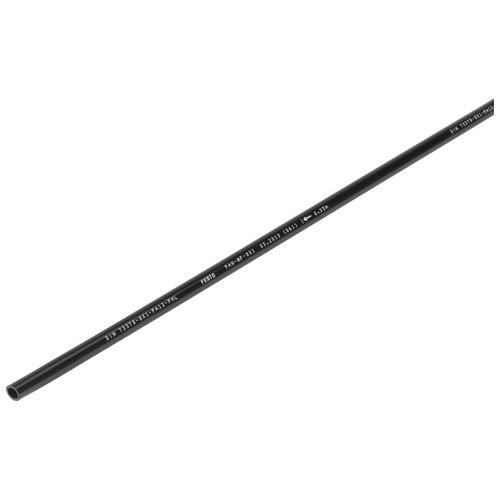

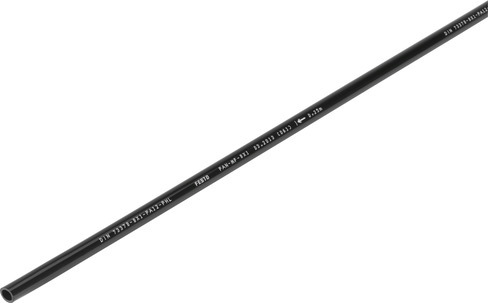

Plastic tubing PAN-MF-8X1-SW Plastic tubing 8mm tube (100m)



DATA SHEET

PAN-MF-8X1-SW

570359

Outside diameter
8 mm
Inside diameter
6 mm
Temperature-dependent operating pressure
-0.95 bar - 19 bar
Ambient temperature
-60 °C - 100 °C

GTIN: 4052568058227

Technical Data

  • Outside diameter8 mm
  • Flow-relevant bending radius50 mm
  • Inside diameter6 mm
  • Min. bending radius35 mm
  • Conforms to standardDIN 73378-PA12-PHL
  • Tubing characteristicsSuitable for energy chains
  • Temperature-dependent operating pressure-0.095 MPa ... 1.9 MPa
  • Temperature-dependent operating pressure-0.95 bar ... 19 bar
  • Temperature-dependent operating pressure-13.775 psi ... 275.5 psi
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Mineral oil
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature-60 °C ... 100 °C
  • Product weight according to length0.022 kg/m
  • Pneumatic connectionFor push-in connector O.D. 8 mm
  • ColourBlack
  • Shore hardnessD 65 +/-3
  • Note on materialsRoHS-compliant
  • Material tubingPA12-P



OD-TUBING_EN.PDF

1-1

Plastic tubing

Plastic tubing

PAN-MF-8X1-SW

570359

  • Polyamide
  • High thermal and mechanical load capacities
  • Meets the requirements to DIN 73378 "Polyamide tubing for use in motor vehicles"
SKU 570359
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
