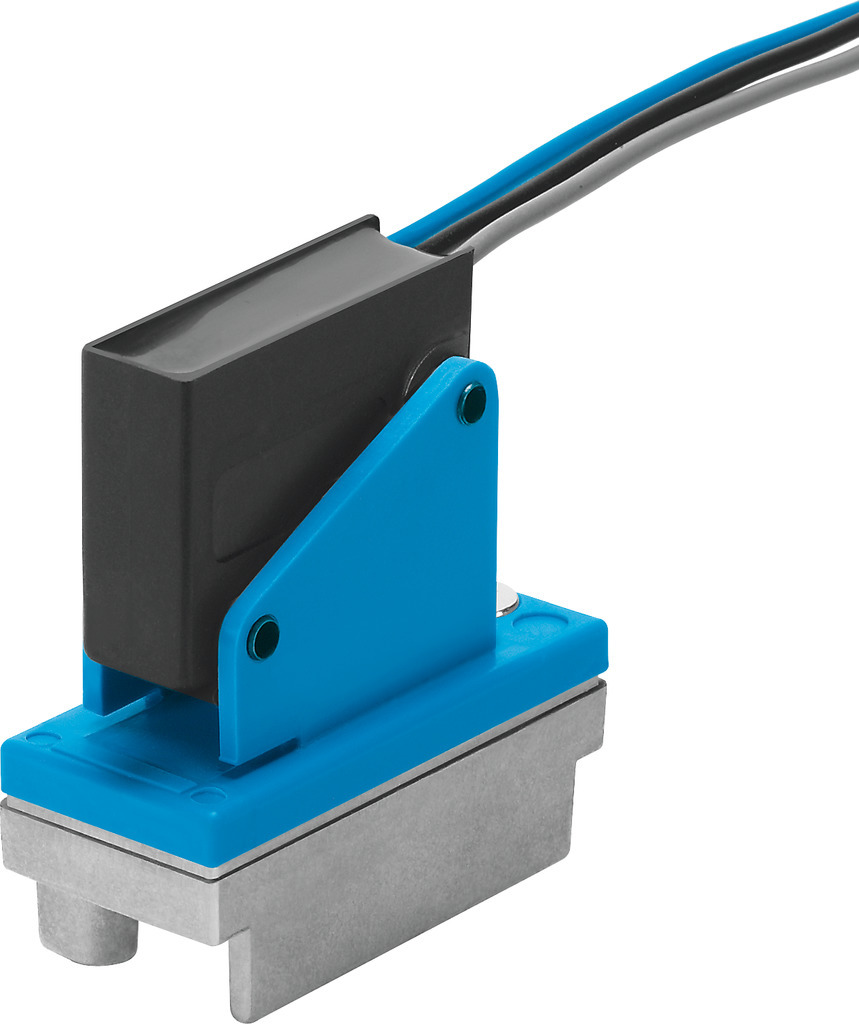

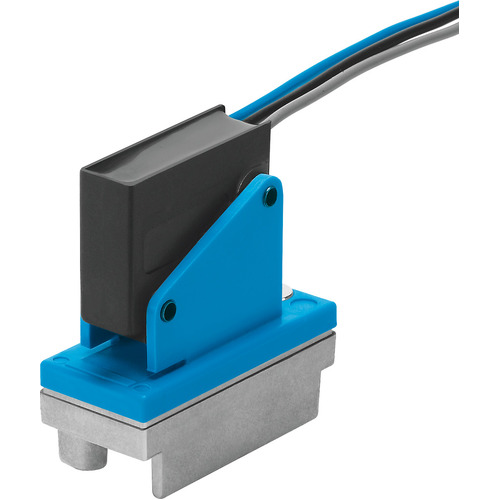

PE converter FESTO

PE-1/8-1N-SW

6484

Technical Data

• Conforms to standardEN 60947-5-1

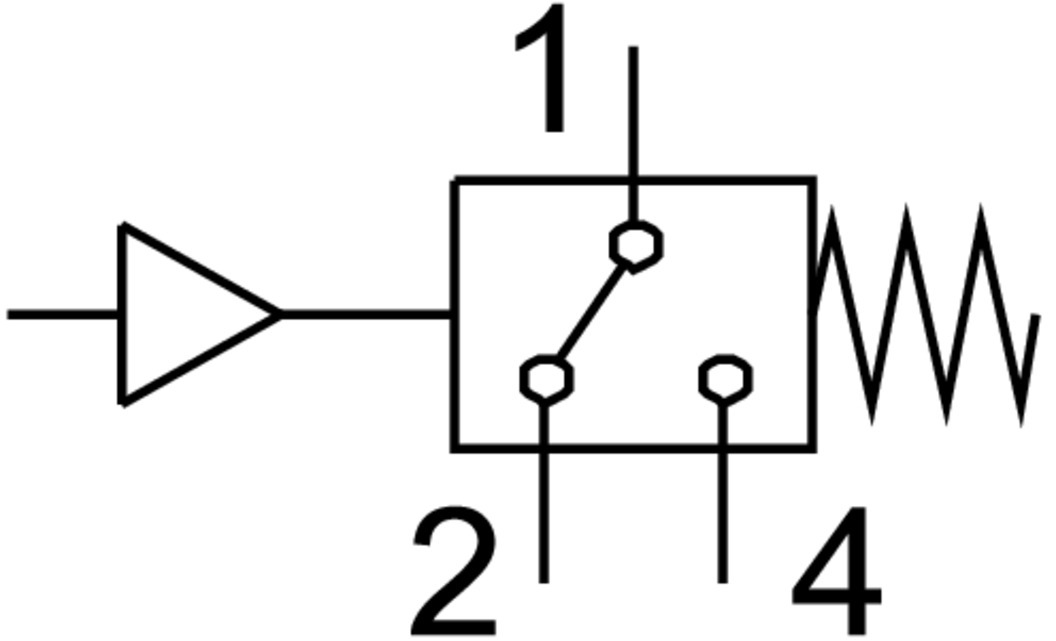

• Symbol00995409
• CE mark (see declaration of conformity)To EU Low Voltage Directive
• UKCA marking (see declaration of conformity)To UK regulations for electrical equipment
• Measured variableRelative pressure
• Measurement methodPneumatic/electric pressure transducer
• Operating pressure0 MPa ... 0.8 MPa
• Operating pressure0 bar ... 8 bar
• Max. overload pressure12 bar
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible
• Media temperature0 °C ... 60 °C
• Ambient temperature0 °C ... 60 °C
• Switching outputContacting
• Switching functionThreshold value with fixed hysteresis
• Switching element functionChangeover switch
• Switch-on point max.2 bar
• Switch-off point min.0.5 bar
• Max. switching frequency1 Hz
• Min. load current100 mA
• Operational voltage range AC12 V ... 250 V
• Operational voltage range DC12 V ... 250 V
• Utilisation category - inductive loadAC-14 DC-13
• Utilisation category - resistive loadAC-12 DC-12
• Electrical connection3 connector leads
• Electrical connection 1, connector systemOpen end
• Cable length0.5 m
• Material cable sheathPVC
• Type of mountingOn 1n mounting frame With through-hole
• Mounting positionoptional
• Pneumatic connectionG1/8
• Product weight50 g
• Material housingSteel VMQ (silicone)
• Material switch contactSilver
• Material electrical connectionTin-plated
• Material membraneTPE-U(PU)
• Setting optionsPermanently set
• Degree of protectionIP67
• Insulation voltage2000 V
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Pollution degree3

GTIN: 4052568001230

Downloads

M5COMPACT_EN.PDF

Technical data

CAD data

Links

Spare parts
