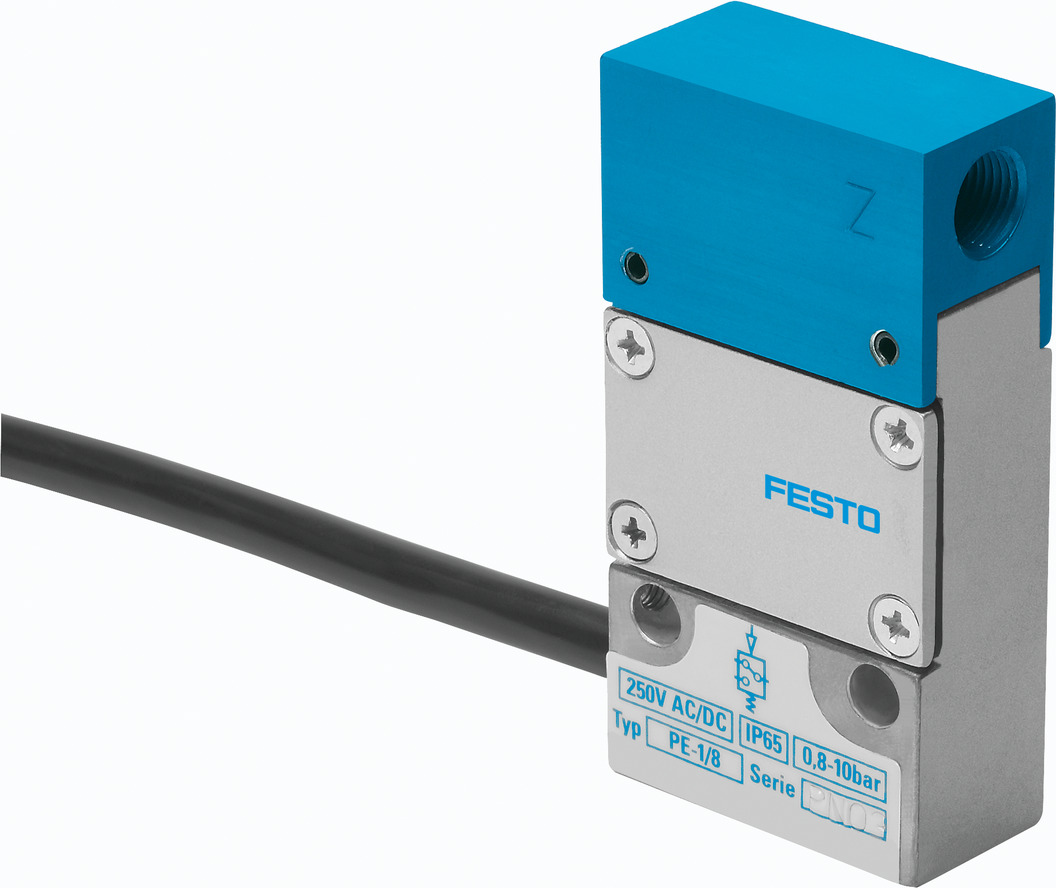

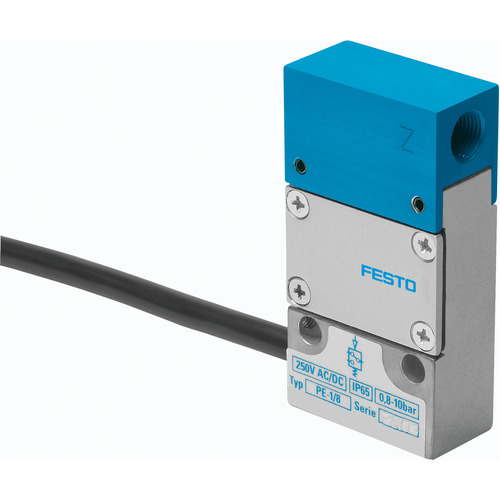

FESTO PE-1/8 PE converter 3344

PE-1/8

$626.66
RRP $701.90
SAVE $75.24 (11%)


PE converter

PE-1/8

3344

Technical Data

  • Conforms to standardEN 60947-5-1

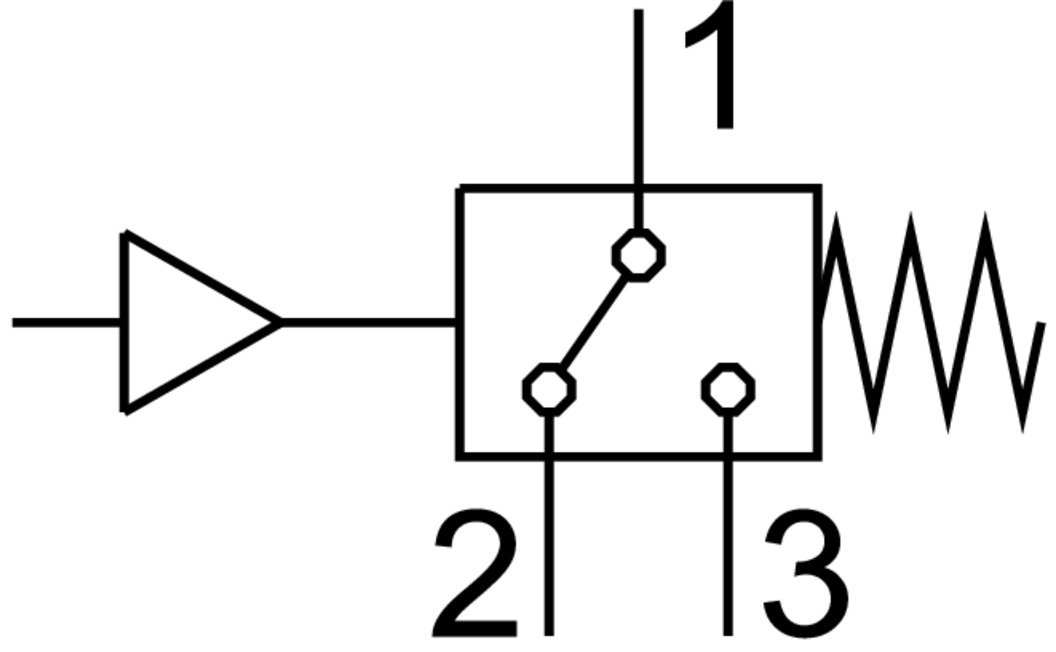

  • Symbol00991470
  • ApprovalCCC
  • CE mark (see declaration of conformity)To EU Low Voltage Directive
  • UKCA marking (see declaration of conformity)To UK regulations for electrical equipment
  • Measured variableRelative pressure
  • Measurement methodPneumatic/electric pressure transducer
  • Operating pressure0.08 MPa ... 1 MPa
  • Operating pressure0.8 bar ... 10 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible
  • Ambient temperature-10 °C ... 60 °C
  • Switching outputContacting
  • Switching functionThreshold value with fixed hysteresis
  • Switching element functionChangeover switch
  • Switch-on point max.0.8 bar
  • Switch-off point min.0.2 bar
  • Max. switching output voltage AC250 V
  • Max. switching output voltage DC250 V
  • Utilisation category - inductive loadAC-14 DC-13
  • Utilisation category - resistive loadAC-12 DC-12
  • Electrical connectionCable
  • Electrical connection 1, connection typeCable
  • Electrical connection 1, connector systemOpen end
  • Cable length1 m
  • Material cable sheathPVC
  • Type of mountingWith through-hole
  • Mounting positionoptional
  • Pneumatic connectionG1/8
  • Product weight225 g
  • Material housingDie-cast zinc
  • Material membraneChloroprene rubber
  • Setting optionsPermanently set
  • Degree of protectionIP65
  • Insulation voltage2000 V
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Pollution degree3

GTIN: 4052568110284

Downloads

M5COMPACT_EN.PDF

Technical data

Links

Spare parts

PE converterPE converter

(3344)

SKU 3344
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
