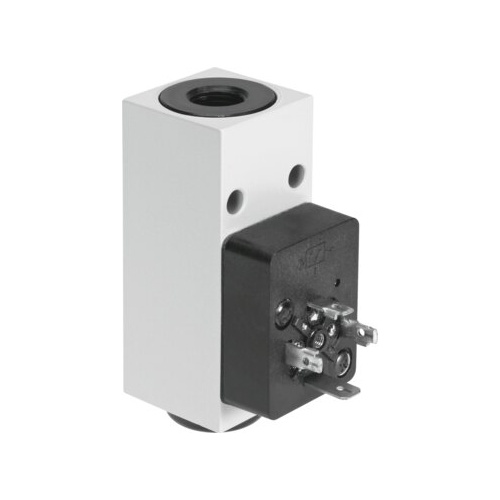

Pressure switchPEV-1/4-B-OD

175250

GTIN: 4052568014261

Technical Data Pressure switch PEV-1/4-B-OD

  • Conforms to standardEN 60947-5-1
  • Symbol00991471
  • ApprovalCCC
  • CE mark (see declaration of conformity)To EU Low Voltage Directive
  • UKCA marking (see declaration of conformity)To UK regulations for electrical equipment
  • Explosion protectionThe information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
  • Note on materialsRoHS compliant
  • Measured variableRelative pressure
  • Measurement methodPneumatic/electric pressure transducer
  • Operating pressure0.1 MPa ... 1.2 MPa
  • Operating pressure1 bar ... 12 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Media temperature-20 °C ... 80 °C
  • Ambient temperature-20 °C ... 80 °C
  • Switching element functionChangeover switch
  • Max. switching frequency3 Hz
  • Max. switching output voltage AC250 V
  • Max. switching output voltage DC125 V
  • Max. output current5000 mA
  • Min. load current1 mA at 24 V 10 mA at 10 V 100 mA at 5 V
  • Utilisation category - inductive loadAC-14 DC-13
  • Utilisation category - resistive loadAC-12 DC-12
  • Electrical connectionType A Plug To DIN 43650 Square design
  • Type of mountingWith through-hole
  • Mounting positionAny
  • Pneumatic connectionG1/4
  • Product weight194 g
  • Material housingDie-cast aluminium
  • Material switch contactSilver
  • Switching status indicationYellow LED
  • Setting range threshold value1 bar ... 12 bar
  • Degree of protectionIP65
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L







SKU 175250
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
