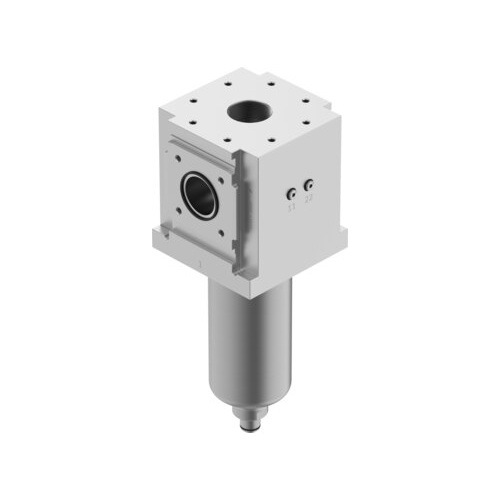

Micro filter

PFML-186-HP3-AST

1364705





GTIN: 4052568263003

Max. standard flow rate for clean air class
10220 l/min
Ambient temperature
5 °C - 60 °C
Operating pressure
0 bar - 50 bar
Grade of filtration
0.01 µm

Technical Data

  • SeriesL
  • Size186
  • DesignFibre filter
  • Grade of filtration0.01 µm
  • Condensate drainManual
  • Symbol00991519
  • Operating pressure0 MPa ... 5 MPa
  • Operating pressure0 bar ... 50 bar
  • Operating mediumInert gases
  • Note on operating and pilot mediumLubricated operation not possible
  • Air purity class at outputCompressed air to ISO 8573-1:2010 [1:4:2]
  • Max. standard flow rate for clean air class10220 l/min
  • Min. standard flow rate for clean air class3406 l/min
  • Filter efficiency99.99998 %
  • Max. condensate volume200 ml
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364 zone III
  • Suitable for use with foodSee supplementary material information
  • Media temperature5 °C ... 60 °C
  • Ambient temperature5 °C ... 60 °C
  • Storage temperature-10 °C ... 60 °C
  • CE mark (see declaration of conformity)In accordance with EU Pressure Equipment Directive
  • UKCA marking (see declaration of conformity)to UK Pressure Equipment Regulations
  • Type of mountingIn-line installation
  • Mounting positionVertical +/-5°
  • Material housingWrought aluminium alloy
  • Material filterBorosilicate fibre
  • Material bowlHigh-alloy stainless steel
  • Material sealsNBR
  • Note on materialsRoHS-compliant
  • Product weight17900 g
  • Volume3



SKU 1364705
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
