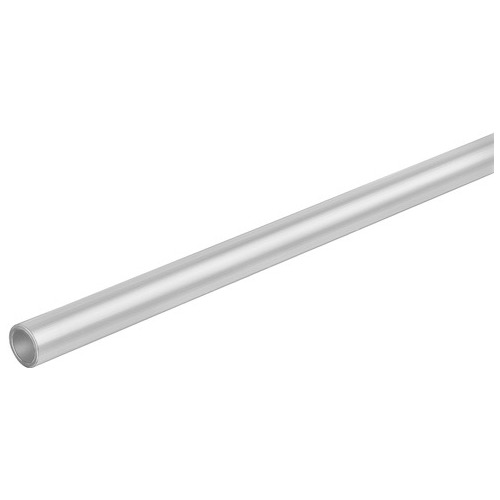

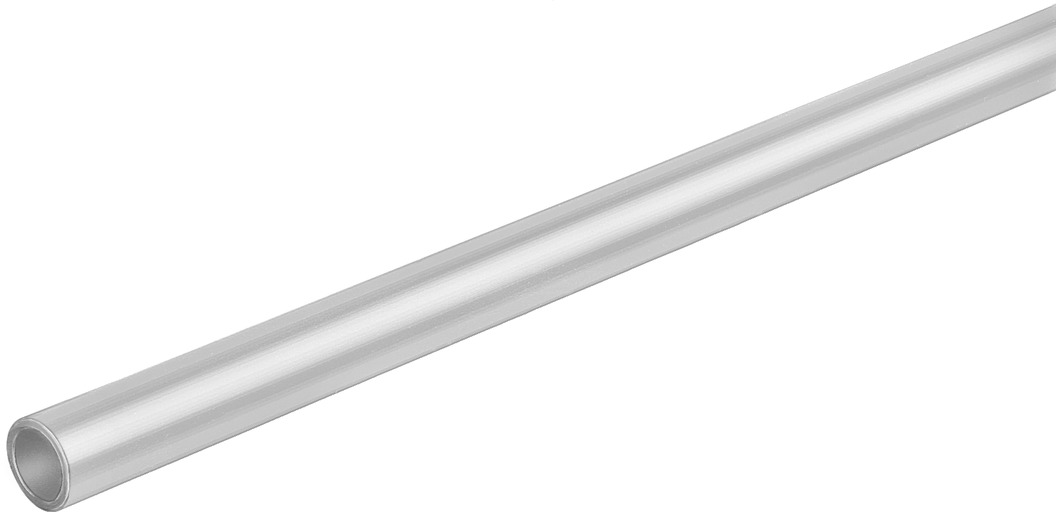

Plastic-coated metal tube (100 metre)

PM-4

9084

Outside diameter
6 mm
Inside diameter
3.92 mm
Material tubing
Wrought aluminium alloy - PE
Temperature-dependent operating pressure
-0.95 bar - 30 bar
Ambient temperature
-29 °C - 65 °C

GTIN: 4052568020354

Technical Data

  • Outside diameter6 mm
  • Flow-relevant bending radius19 mm
  • Inside diameter3.92 mm
  • Temperature-dependent operating pressure-0.95 bar ... 30 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature-29 °C ... 65 °C
  • Product weight according to length0.024 kg/m
  • ColourBlack
  • Note on materialsRoHS-compliant
  • Material tubingWrought aluminium alloy PE

Downloads

PIPING_EN.PDF

Technical data

Links

Spare parts



Outside diameter 6 mm

Inside diameter 3.92 mm

Material tubing Wrought aluminium alloy - PE

Temperature-dependent operating pressure -0.95 bar - 30 bar

Ambient temperature -29 °C - 65 °C



Plastic-coated metal tube

PM-4

9084

  • Polyethylene, aluminium
  • Can be bent straight and reshaped several times without a pipe-bending device and without being damaged
  • Resistant to deformation

Plastic-coated metal tube

SKU 9084
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
