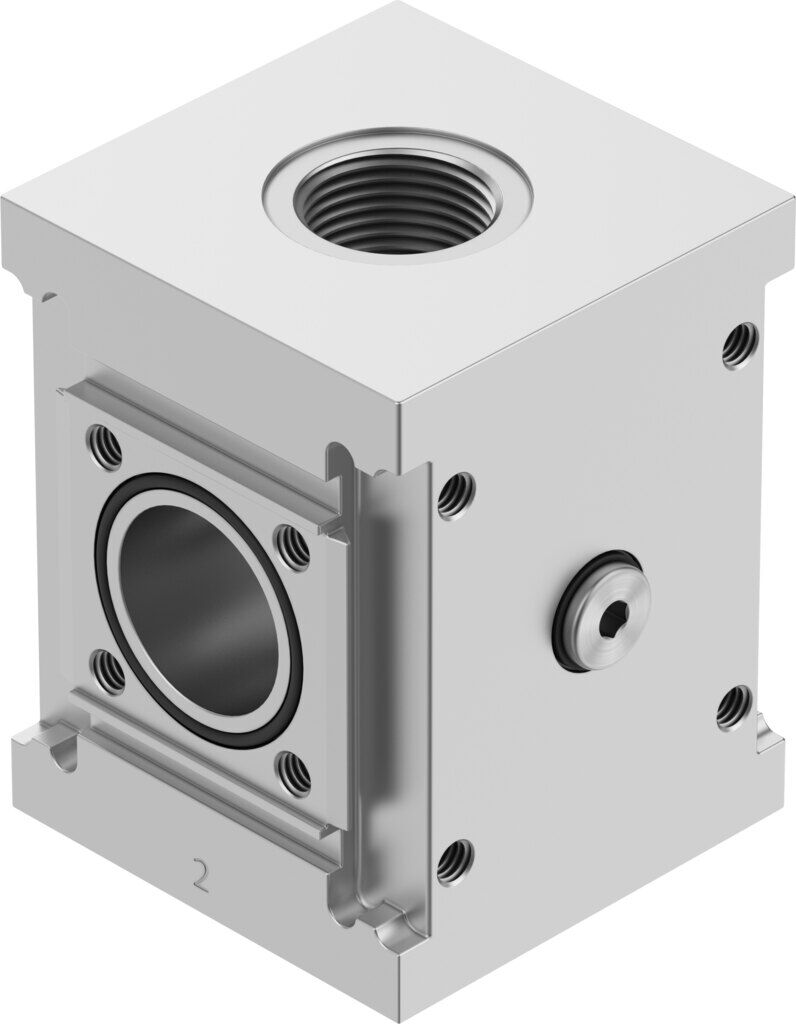

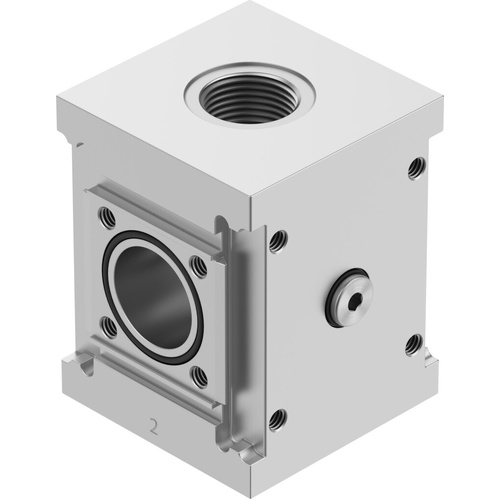

Branching module

PMBL-90-HP3

1401366





GTIN: 4052568263027

Ambient temperature
5 °C - 60 °C
Operating pressure
0 bar - 50 bar

Technical Data

  • Size90
  • Nominal size DN36
  • SeriesL
  • Mounting positionoptional
  • DesignBranching module
  • Symbol00991510
  • Operating pressure0 MPa ... 5 MPa
  • Operating pressure0 bar ... 50 bar
  • CE mark (see declaration of conformity)In accordance with EU Pressure Equipment Directive
  • UKCA marking (see declaration of conformity)to UK Pressure Equipment Regulations
  • Operating mediumCompressed air to ISO 8573-1:2010 [-:-:-]
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364 zone III
  • Storage temperature-10 °C ... 60 °C
  • Suitable for use with foodSee supplementary material information
  • Media temperature5 °C ... 60 °C
  • Ambient temperature5 °C ... 60 °C
  • Product weight2000 g
  • Note on materialsRoHS-compliant
  • Material sealsNBR
  • Material housingWrought aluminium alloy



SKU 1401366
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
