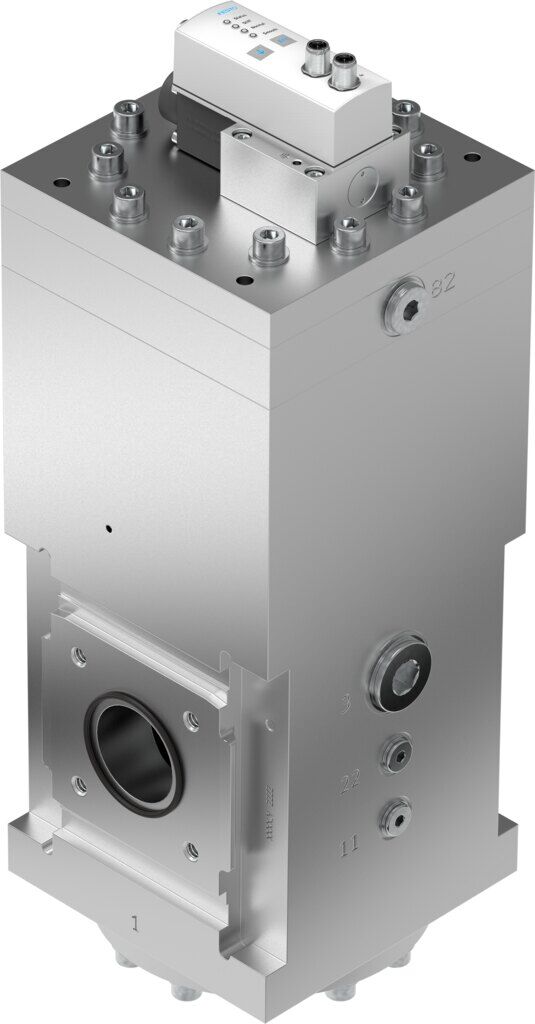

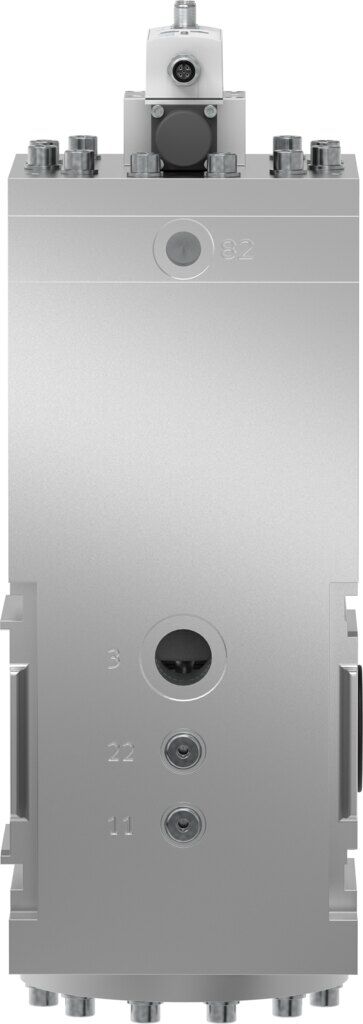

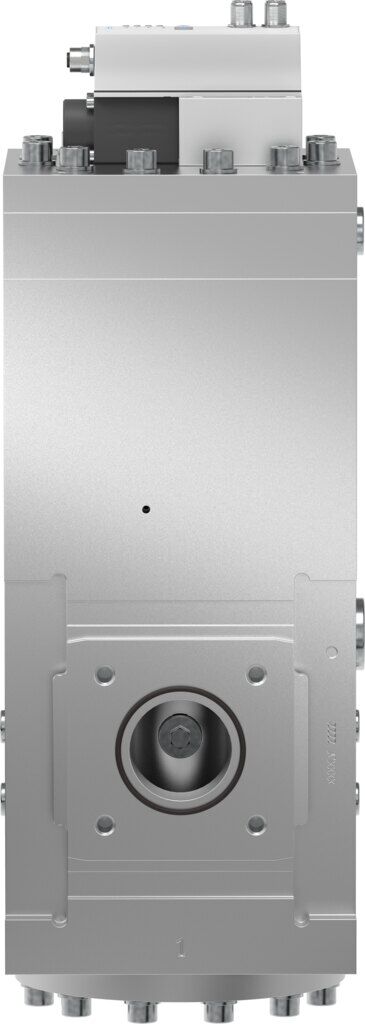

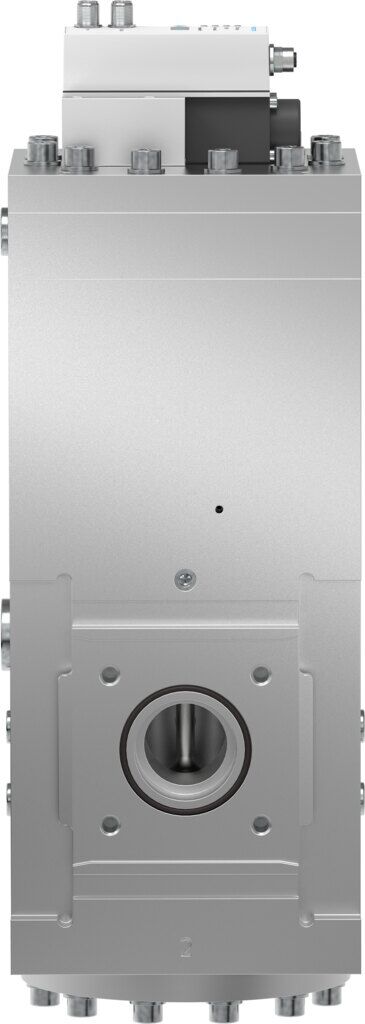

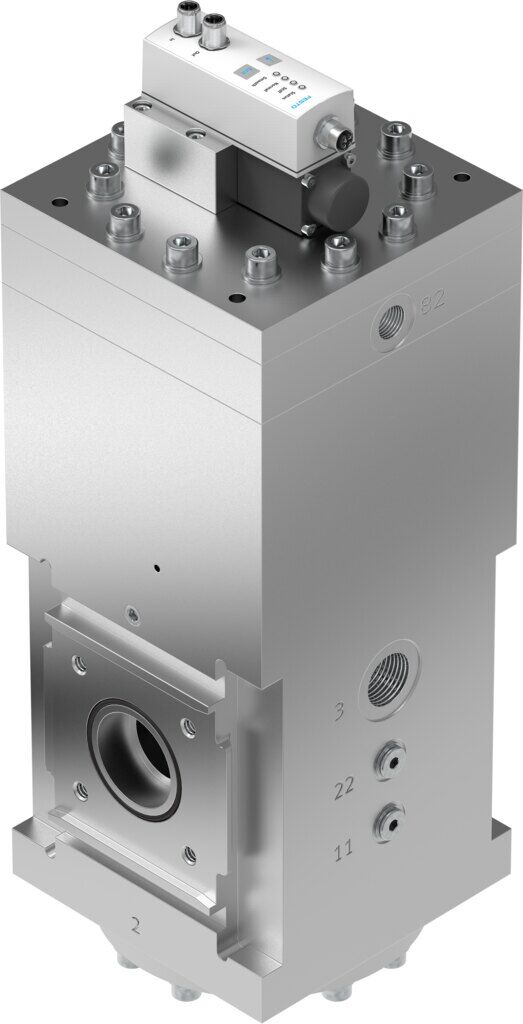

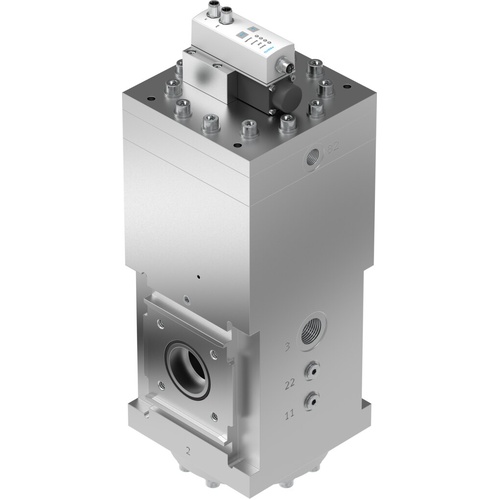

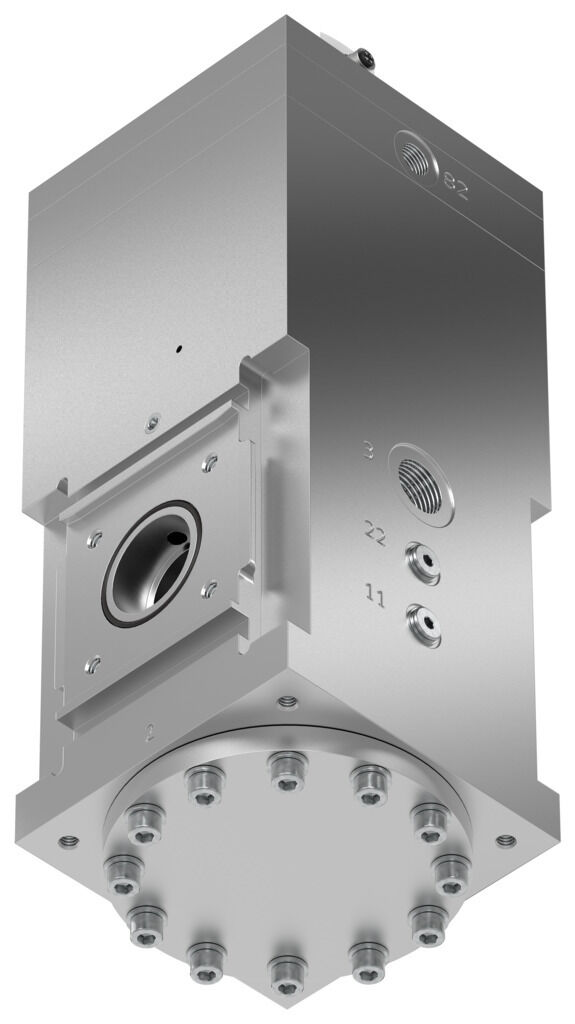

Electrical pressure regulator

PREL-186-HP3-V1-A-40CFX-1

1709211





GTIN: 4052568264024



Pneumatic connection, port 1
G1
Operating pressure
0 bar - 50 bar
Pressure regulation range
0.4 bar - 40 bar
Max. pressure hysteresis
0.806 bar

Technical Data

  • Size186
  • Nominal size DN45
  • SeriesL
  • Mounting positionVertical
  • Type of actuationElectric
  • DesignElectrically adjustable pressure regulator
  • Controller functionOutput pressure constant Via primary pressure compensation With secondary venting

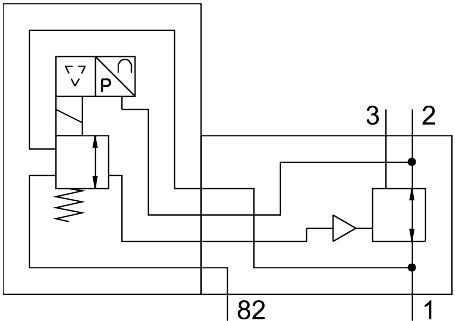

  • Symbol00995417
  • Operating pressure0 MPa ... 5 MPa
  • Operating pressure0 bar ... 50 bar
  • Pressure regulation range0.4 bar ... 40 bar
  • Max. pressure hysteresis0.806 bar
  • Nominal operating voltage DC24 V
  • Signal range analogue output4 - 20 mA
  • Signal range analogue input0 - 10 V
  • SETPOINT/ACTUAL valuesVoltage type 0 - 10 V
  • ApprovalSpecial Equipment Type Test Certification
  • CE mark (see declaration of conformity)In accordance with EU Pressure Equipment Directive
  • UKCA marking (see declaration of conformity)to UK Pressure Equipment Regulations
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gases
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364 zone III
  • Storage temperature-10 °C ... 60 °C
  • Suitable for use with foodSee supplementary material information
  • Media temperature5 °C ... 50 °C
  • Ambient temperature5 °C ... 50 °C
  • Electrical connection, INPlug connector, M12, 5-pin, A-coded
  • Electrical connection, OUTPlug connector, M12, 5-pin, A-coded
  • Type of mountingOn service unit With accessories
  • Pneumatic connection, port 1G1
  • Pneumatic connection, port 11G1/4
  • Pneumatic connection, port 2G1
  • Pneumatic port 22G1/4
  • Pneumatic connection, port 3G1
  • Pneumatic port 82G1/2
  • Note on materialsRoHS-compliant
  • Material underneath coverAnodised aluminium
  • Material springSpring steel
  • Material housingAnodised aluminium
SKU 1709211
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
