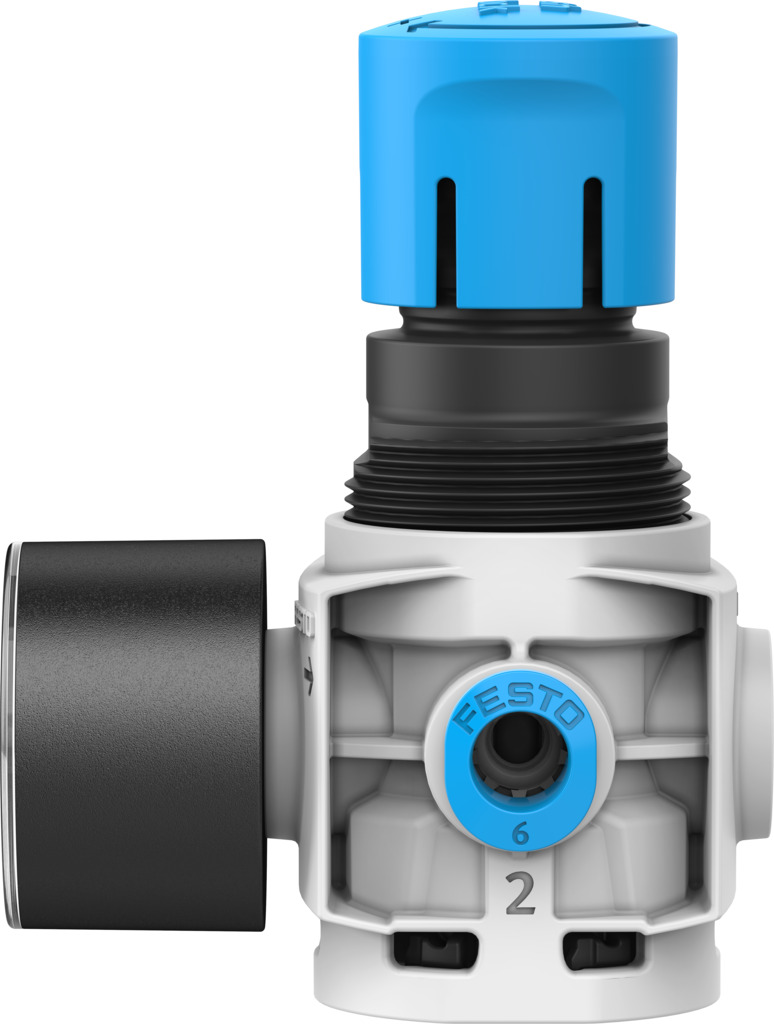

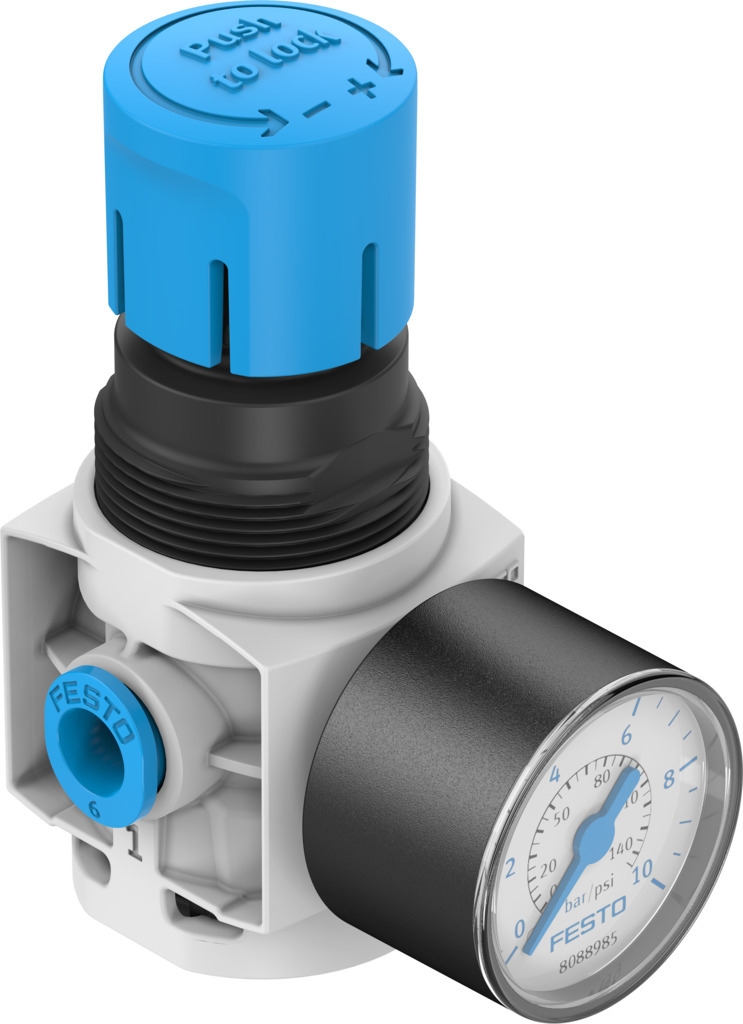

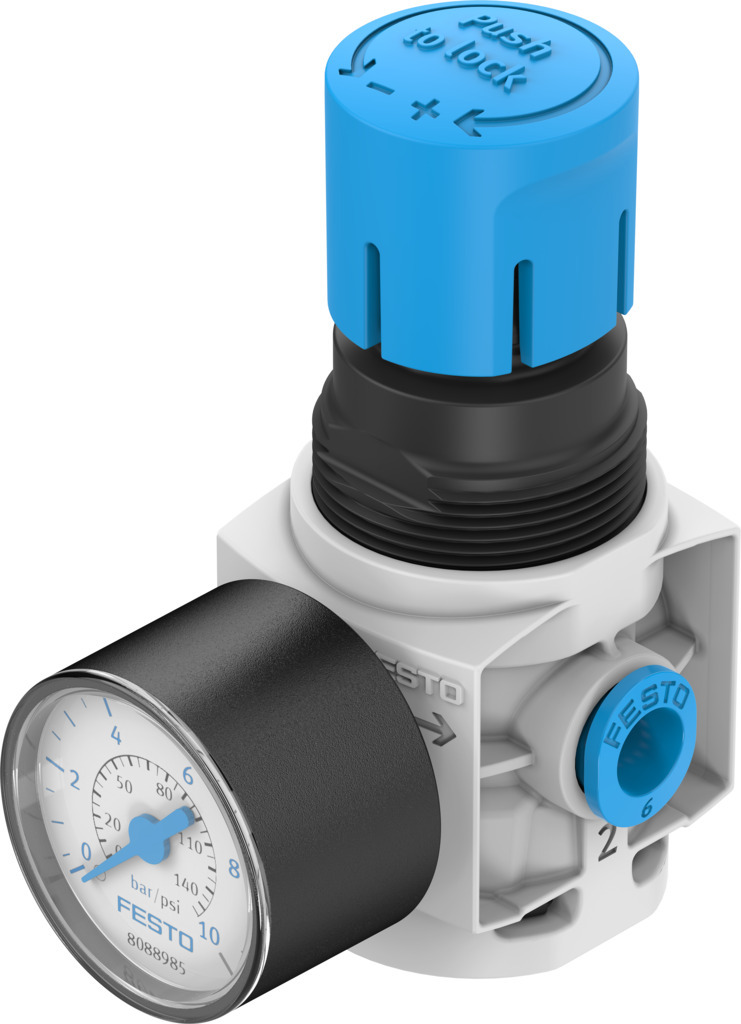

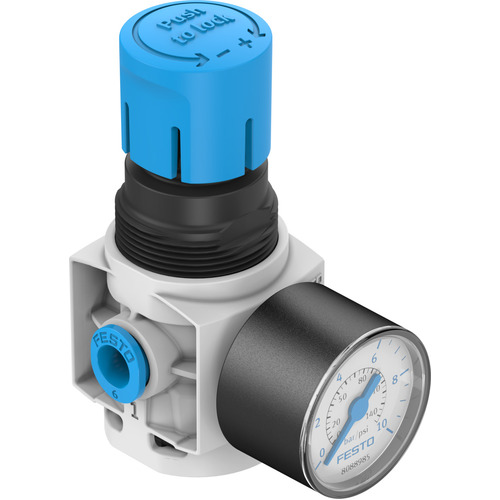

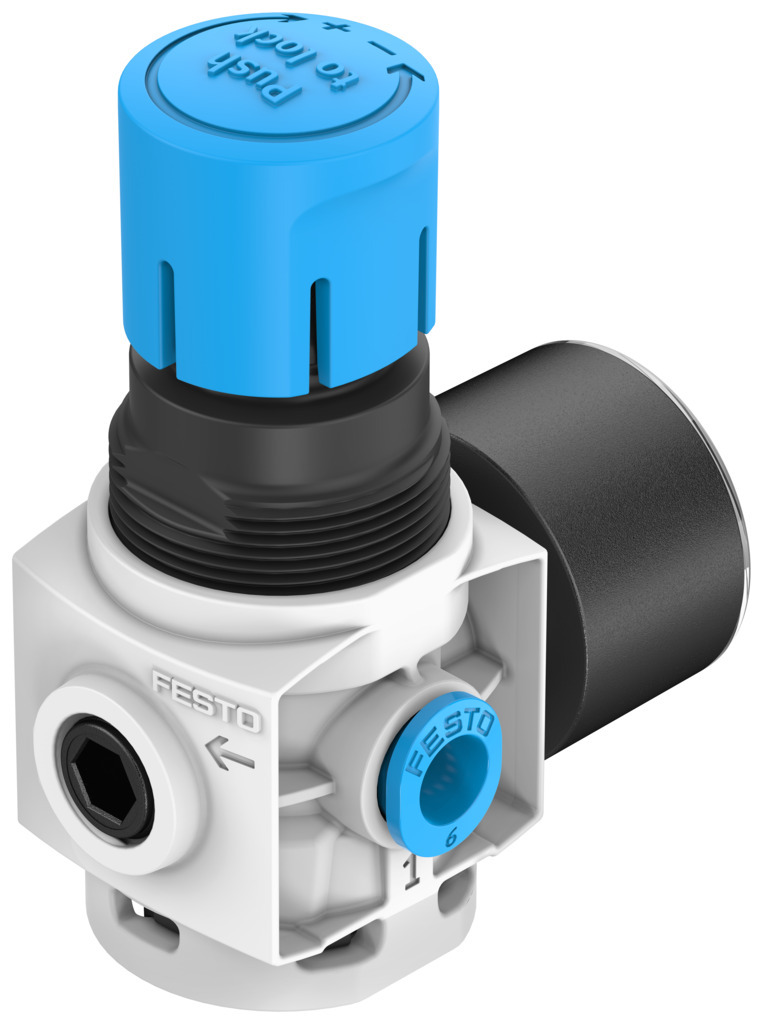

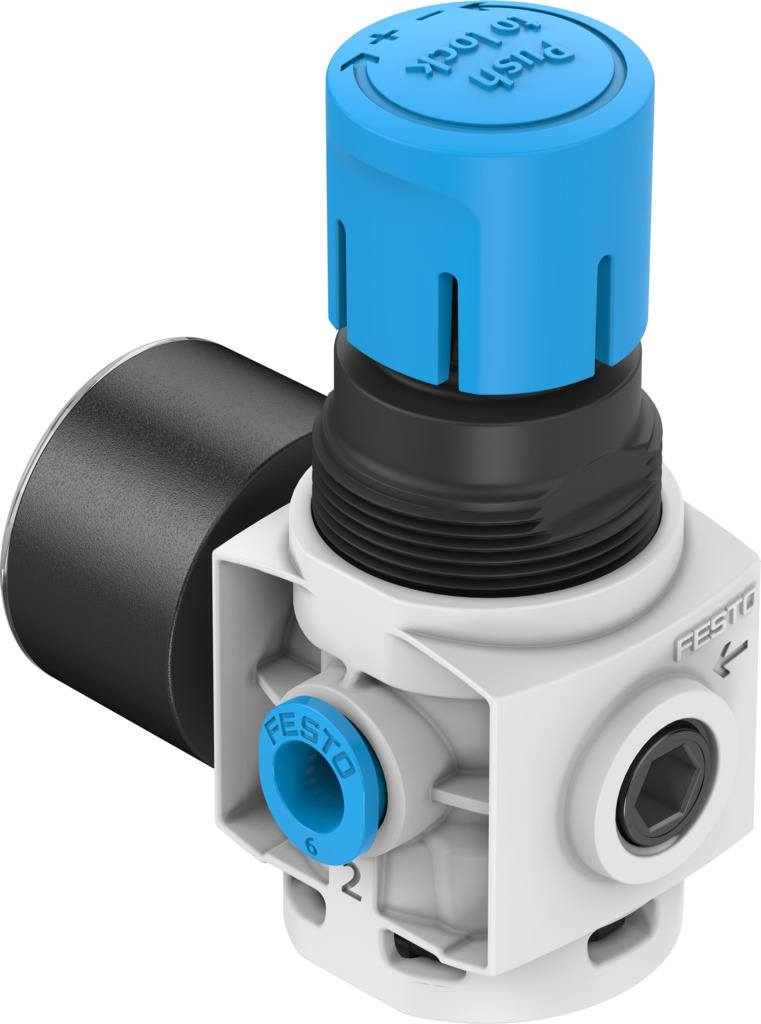

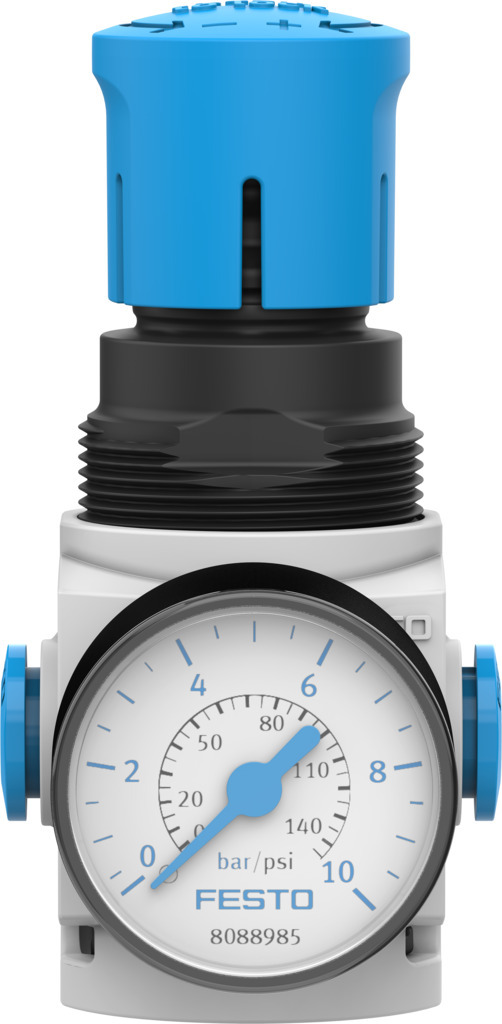

Pressure regulator MS2-LR-QS6-D6-AR-BAR-F1A-B

Pressure regulator

MS2-LR-QS6-D6-AR-BAR-F1A-B

8167261

GTIN: 4052568606107

Downloads

MS_LR_B_EN.PDF

Technical data

Reliability datasheet

Links

Spare parts

Pieces

Pneumatic connection, port 1

QS-6

Standard nominal flow rate (standardised to DIN 1343)

350 l/min

Pressure regulation range

0.5 bar - 7 bar

Max. pressure hysteresis

0.25 bar

Technical Data

Size2
Series MS
Actuator lock Rotary knob with detent
Mounting position optional
Design Directly actuated diaphragm regulator
Controller function Output pressure constant With secondary venting With return flow function

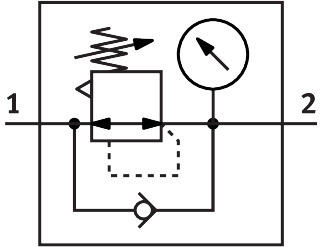

Symbol 00991558
Displayable units bar psi
Pressure gauge (ANALOG) or Pressure display (DIGITAL) With pressure gauge
Operating pressure 0.1 MPa ... 0.8 MPa
Operating pressure 1 bar ... 8 bar
Pressure regulation range 0.5 bar ... 7 bar
Max. pressure hysteresis 0.025 MPa
Max. pressure hysteresis 0.25 bar
Max. pressure hysteresis3.625 psi
Standard nominal flow rate (standardised to DIN 1343) 350 l/min
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Suitability for the production of Li-ion batteries Metals with more than 1% by mass of copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils
Cleanroom class Class 4 according to ISO 14644-1
Storage temperature -5 °C ... 50 °C
Media temperature -5 °C ... 50 °C
Ambient temperature -5 °C ... 50 °C
Product weight 36.1 g
Type of mounting Either: Front panel mounting In-line installation With accessories
Pneumatic connection, port 1QS-6
Pneumatic connection, port 2QS-6
Note on materials RoHS-compliant
Material underneath cover PA
Material seals NBR
Material rotary knob POM
Material spring High-alloy steel
Material housing PA-reinforced
Material membrane NBR
Material valve stem Wrought aluminium alloy NBR
