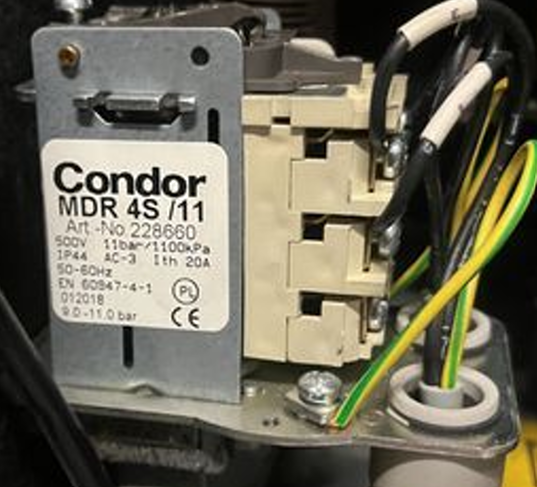

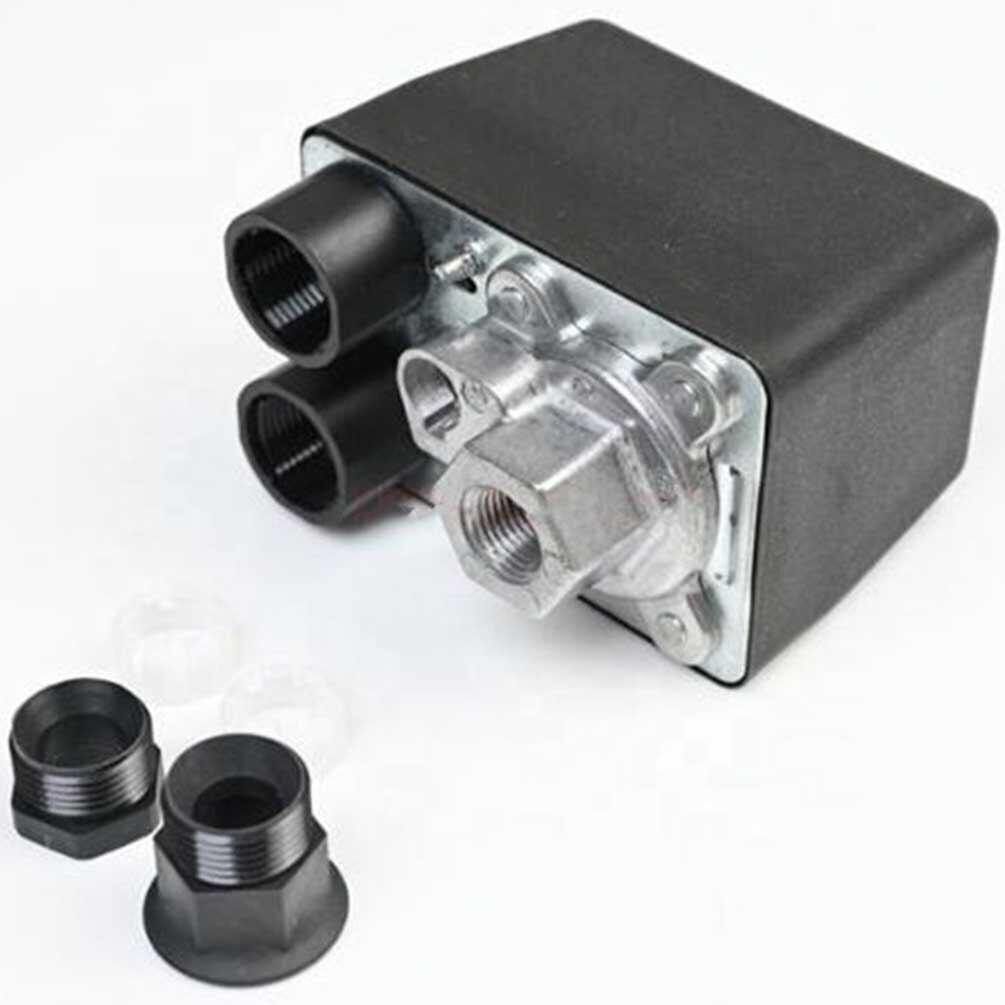

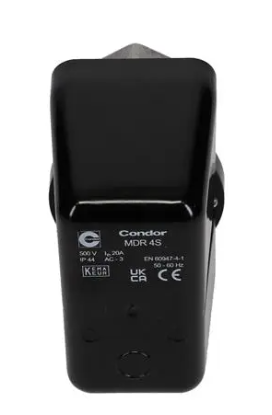

PRESSURE SWITCH 1/2 MDR4S/11 FOR PISTON COMPRESSORS



Product Specifications

Part Number

228660

Product Series/Type

MDR4

Weight

450.0 g

Series Specifications

Rated insulation voltage (Ui) 500 V

Motor switching capacity (AC 3) Ue=240 V (1~) 2.5 kW

Motor switching capacity (AC 3) Ue=230 V (3~) 4.0 kW

Motor switching capacity (AC 3) Ue=400 V (3~) 5.5 kW

Motor switching capacity (AC 3) Ue=500 V (3~) 5.5 kW

Electrical life (AC 3) Ue=240 V (3~) > 1 x 10⁵

Mechanical life > 5 x 10⁵ cycles

Max. electrical cycles per hour 120

SKU 1089038953
Model # 3745 7556 00
Brand Atlas Copco
Shipping Weight 0.0500kg
Shipping Width 0.010m
Shipping Height 0.040m
Shipping Length 0.050m
Shipping Cubic 0.000020000m3
Unit Of Measure 1
