Pressure Switch – Condor MDR3 Three phase 16-20amp – 3031108

Up to 11kw Air Compressor, 3-phase 400V

Downloads

Pressure switch MDR 3 for compressors & pumps - Condor Werke

3031108 Condor MDR3/1000 Pressure Switch 3 Phase 1000 Kpa. 16-20 Amps

Description

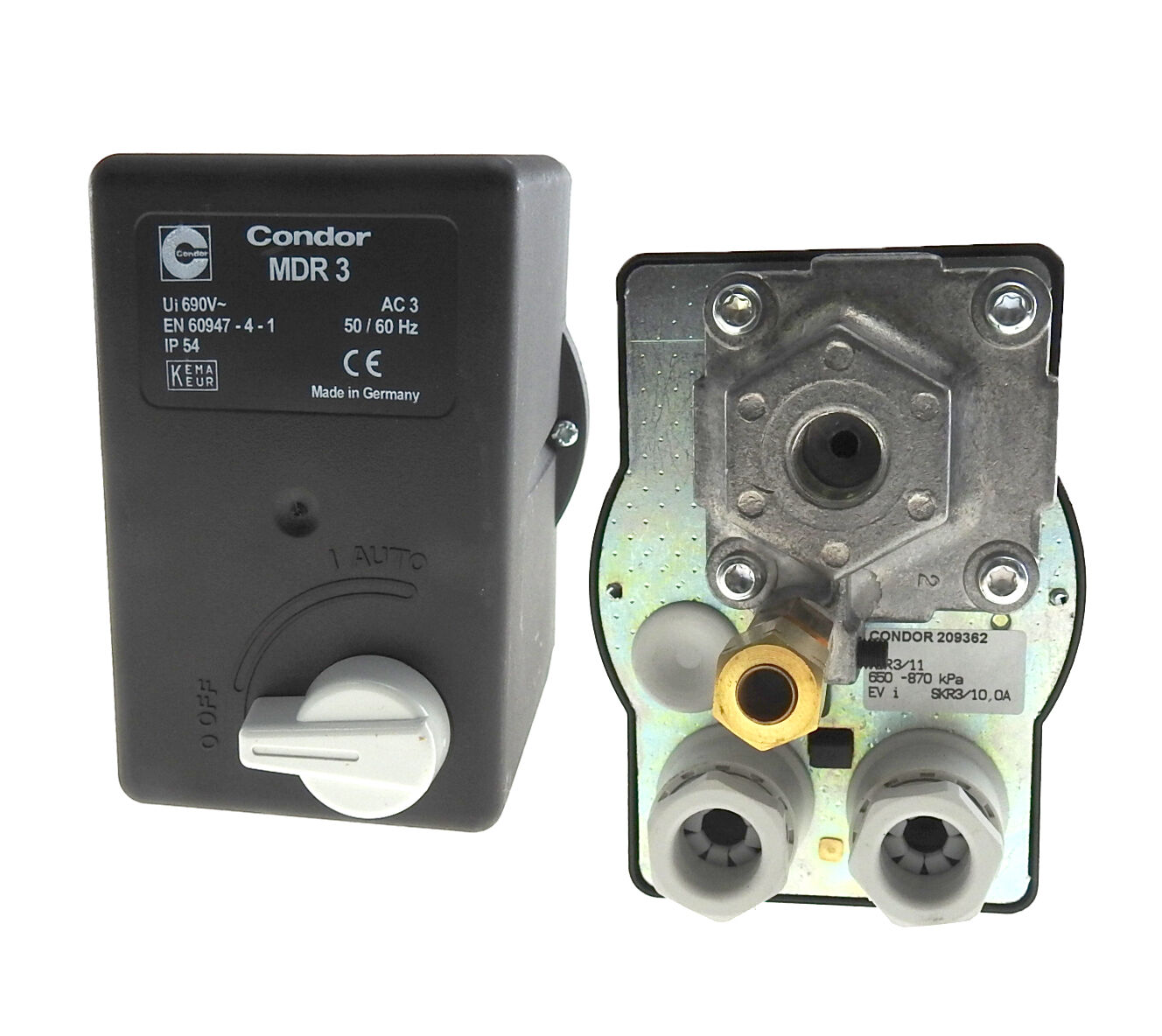

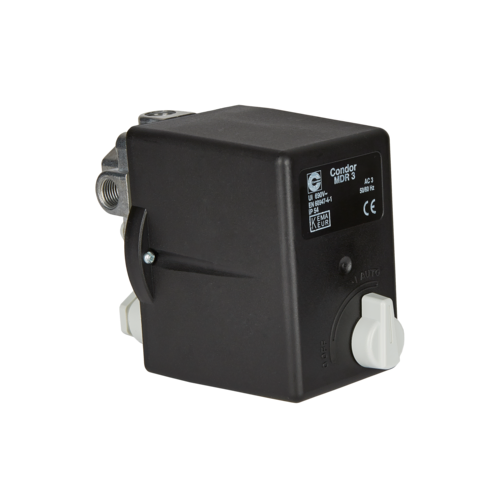

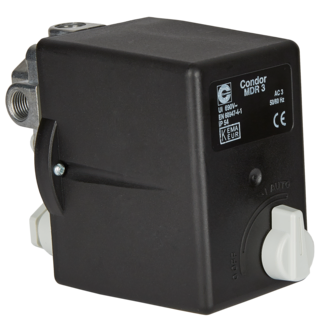

German Condor MDR3, 3 Phase, Pressure Switch with overload – 16-20 amp

1/4″ or 6mm 900 unloader – Slow pressure release device

Suit 11kw 15hp motor

This 3 Phase Pressure Switch is Fully Adjustable suitable for compressors.

The Condor MDR3 pressure switches are the world’s most famous brand and are used to regulate the tank pressure between two preset values on small (up to 145psi) electrically driven air compressors. These MDR3 are specifically designed for compressors and feature a motor protection overload. They are available with an unloader valve, which prevents compressors from starting under load, and an auto-off disconnect lever for manual cut off the compressor. A single port bottom entry.

500V Compressor Pressure Switch Features

  • 1x 1/4″ bsp ports
  • 900  Elbow Unloader 6mm nylon tube or 1/4″ copper
  • pressure range 45-175psi
  • Differential (Adjustable)
  • Factory setting  85-115psi
  • contact arrangement NC
  • 500VAC, 16-20 amp
  • IP44
  • 110D x 70W x 150H
SKU MDR33031108
Shipping Weight 2.0000kg
