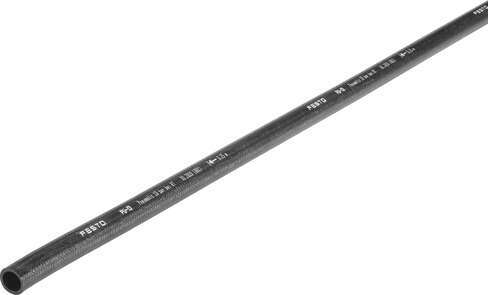

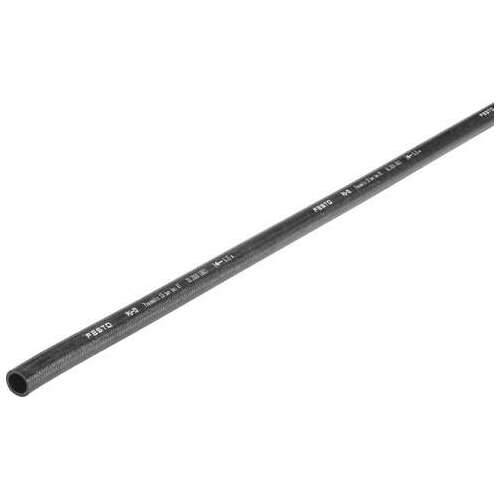

Plastic tubing OD17.6mm. ID 13mm. PU Black tube hose

PU-13-SW For barbed fitting inside diameter of 13 mm with union nut

12133

Product Documentation

Technical data

Outside diameter
17.6 mm
Inside diameter
13 mm
Operating pressure complete temperature range
-0.95 bar - 10 bar
Ambient temperature
-35 °C - 60 °C

GTIN: 4052568021405

Technical Data

  • Outside diameter17.6 mm
  • Flow-relevant bending radius83 mm
  • Inside diameter13 mm
  • Operating pressure complete temperature range-0.95 bar ... 10 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-35 °C ... 60 °C
  • Product weight according to length0.133 kg/m
  • Pneumatic connectionFor barbed fitting inside diameter of 13 mm with union nut
  • ColourBlack
  • Shore hardnessA 86 +/-3
  • Note on materialsRoHS-compliant
  • Material tubingTPE-U(PU)

ID-TUBING_EN.PDF

Plastic tubing

PU-13-SW

12133

  • Polyurethane with fabric
  • High resistance to abrasion and kinks
  • Operating media: compressed air, vacuum (PU-13)
SKU 12133
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
