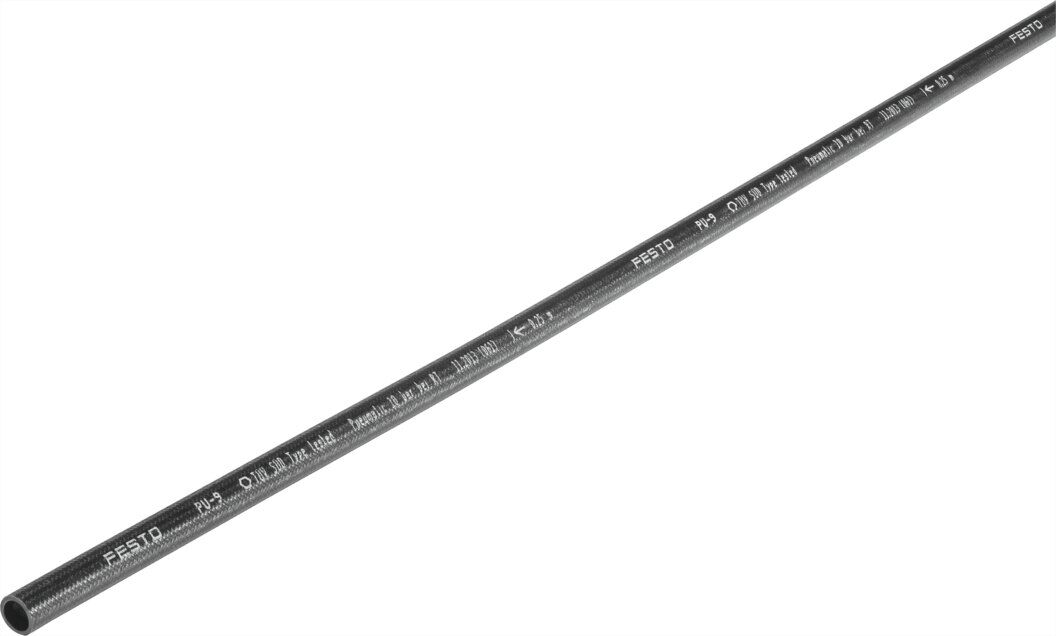

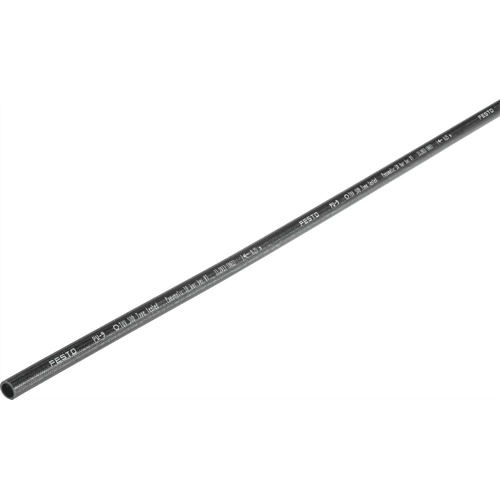

Plastic tubing

PU-9-SW

12134



Technical Data

  • Outside diameter11.6 mm
  • Flow-relevant bending radius76 mm
  • Inside diameter9 mm
  • Operating pressure complete temperature range0 bar ... 10 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-35 °C ... 60 °C
  • Product weight according to length0.056 kg/m
  • Pneumatic connectionFor barbed fitting inside diameter of 9 mm with union nut
  • ColourBlack
  • Shore hardnessA 91 +/-3
  • Note on materialsRoHS-compliant
  • Material tubingTPE-U(PU)

GTIN: 4052568021412

Outside diameter
11.6 mm
Inside diameter
9 mm
Operating pressure complete temperature range
0 bar - 10 bar
Ambient temperature
-35 °C - 60 °C
SKU 12134
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
