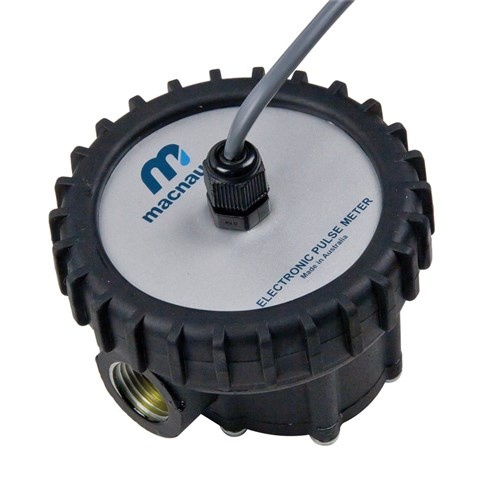

PULSE OIL METER - 3/4"BSP

PULSE OIL METER - 3/4"

Product Code: IM019P-01

Description

In-line oval gear meter with pulse output only, designed to measure lubricating oils. Flow rate up to 80L/min. Accuracy is around +/- 0.5% of reading with maximum pressure to 10,350 kPa (1,500 psi). Fly Lead is included to allow connection to other devices. Fitted with 3/4" BSP(F) ports.

Technical Specifications

  • IM019 meter with pulse output only
  • Suitable for oils up to SAE 140, automatic trans ?uid, engine oil, gear oil, hydraulic oil coolant, diesel, kerosene
  • Includes 1m ?y lead either reed switch and/or half effect sensor
  • Flow range up to 3 – 80LPM
  • Accurate reading to +/- 0.5% with maximum pressure to 10,350kPa (1,500psi)
  • 3/4” BSP(F) inlet/outlet ports
SKU IM019P-01
Brand Macnaught
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.080m
