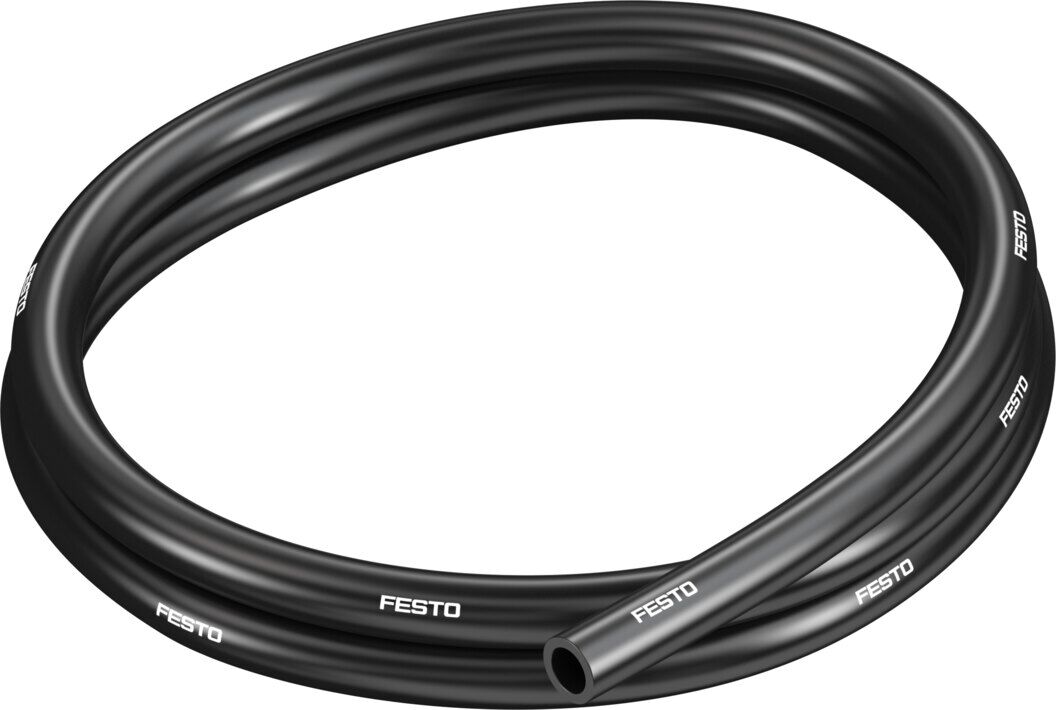

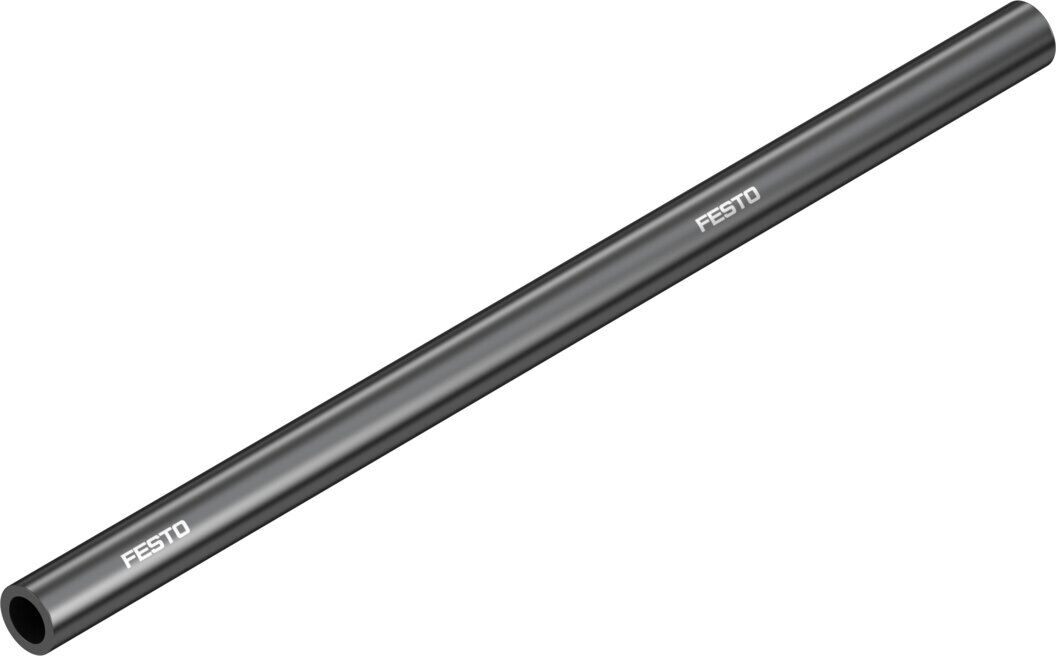

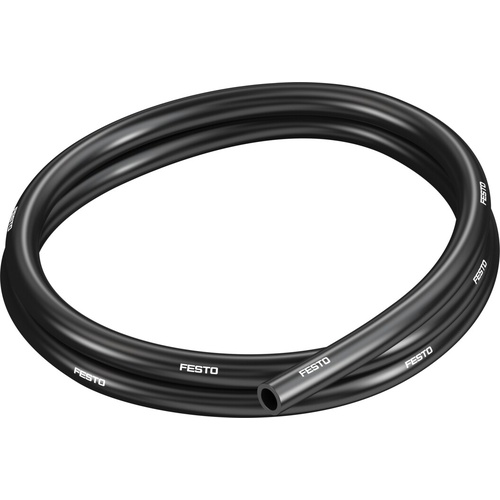

Plastic tubing (100 metre)

PUN-12X2-SW

159671





GTIN: 4052568035402


Outside diameter
12 mm
Inside diameter
8 mm
Temperature-dependent operating pressure
-0.95 bar - 10 bar
Ambient temperature
-35 °C - 60 °C


Technical Data

  • Outside diameter12 mm
  • Flow-relevant bending radius62 mm
  • Inside diameter8 mm
  • Min. bending radius33 mm
  • Instructions on useTPE-U Ester based The plastic tubing can only be installed in contact with cables if the sheathing is free from phosphoric acid esters. Otherwise the plastic tubing can get damaged.
  • Tubing characteristicsSuitable for energy chains
  • Operating pressure complete temperature range-0.095 MPa ... 0.7 MPa
  • Operating pressure complete temperature range-0.95 bar ... 7 bar
  • Operating pressure complete temperature range-13.775 psi ... 101.5 psi
  • Temperature-dependent operating pressure-0.095 MPa ... 1 MPa
  • Temperature-dependent operating pressure-0.95 bar ... 10 bar
  • Temperature-dependent operating pressure-13.775 psi ... 145 psi
  • ApprovalGerman Technical Control Board (TÜV)
  • Certificate issuing authorityB 013277 0527 00
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Fire test materialUL94 HB
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature-35 °C ... 60 °C
  • Product weight according to length0.0767 kg/m
  • Pneumatic connectionFor push-in connector outside diameter of 12 mm
  • ColourBlack
  • Shore hardnessD 52 +/-3
  • Note on materialsRoHS-compliant
  • Material tubingTPE-U(PU)





SKU 159671
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
