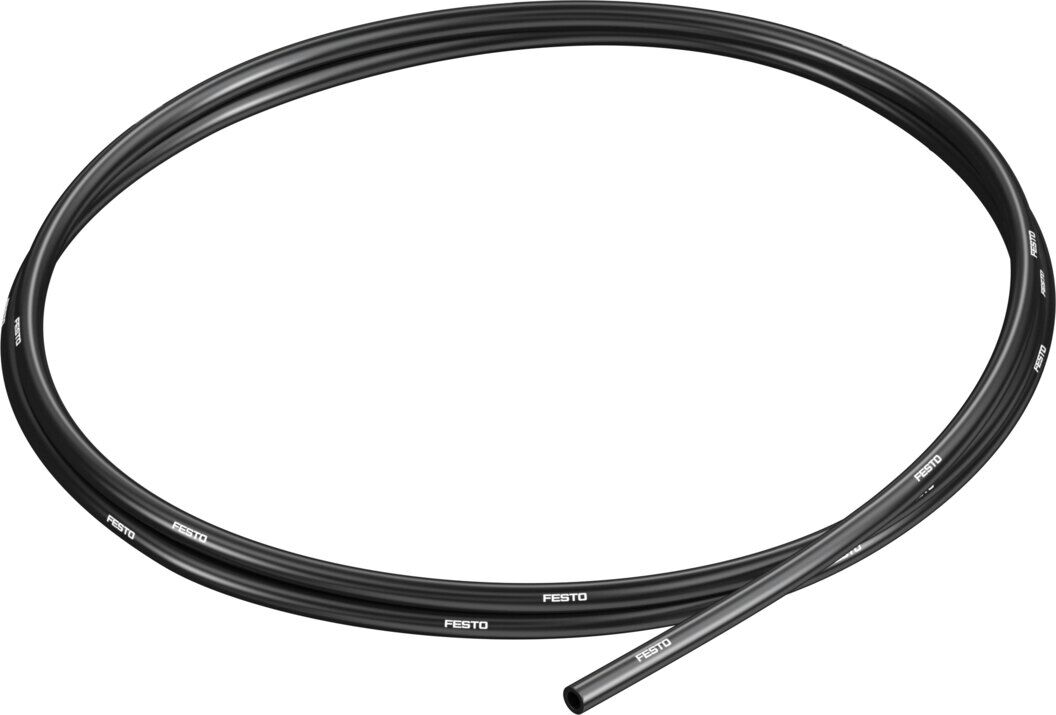

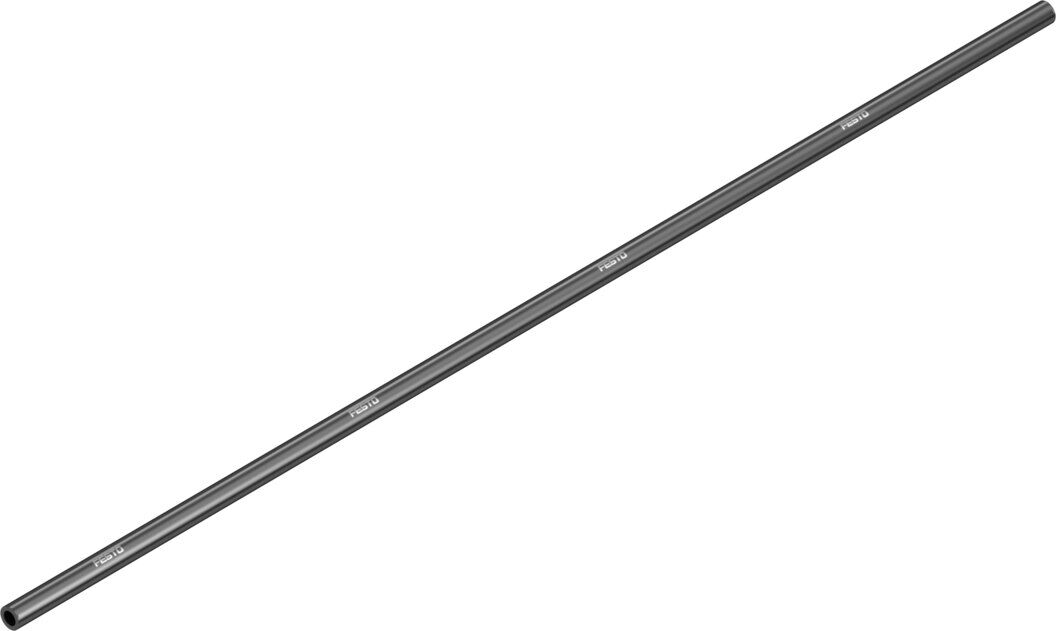

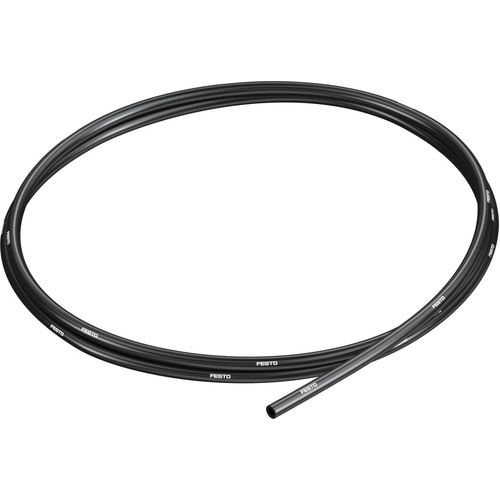

Plastic tubing (100 metre)

PUN-CM-4-SW

188882





GTIN: 4052568041496

Outside diameter
4 mm
Inside diameter
2.5 mm
Temperature-dependent operating pressure
-0.95 bar - 10 bar
Ambient temperature
-35 °C - 60 °C

Technical Data

  • Outside diameter4 mm
  • Flow-relevant bending radius17 mm
  • Inside diameter2.5 mm
  • Min. bending radius8 mm
  • Tubing characteristicsSuitable for energy chains
  • Temperature-dependent operating pressure-0.095 MPa ... 1 MPa
  • Temperature-dependent operating pressure-0.95 bar ... 10 bar
  • Temperature-dependent operating pressure-13.775 psi ... 145 psi
  • Surface resistance0.01 MOhm ... 10 MOhm
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature-35 °C ... 60 °C
  • Product weight according to length0.00993 kg/m
  • Pneumatic connectionFor push-in connector O.D. 4 mm
  • ColourBlack
  • Shore hardnessD 52 +/-3
  • Note on materialsRoHS-compliant
  • Material tubingTPE-U(PU)



SKU 188882
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
