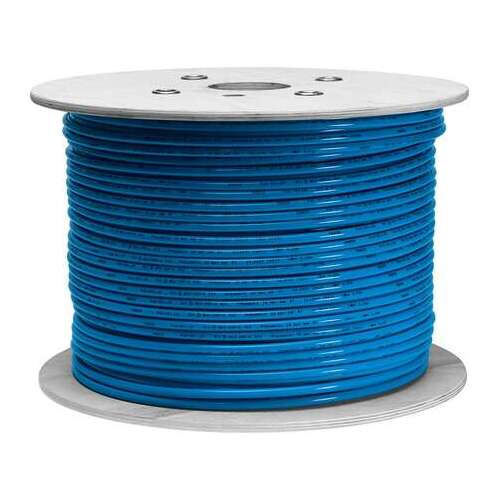

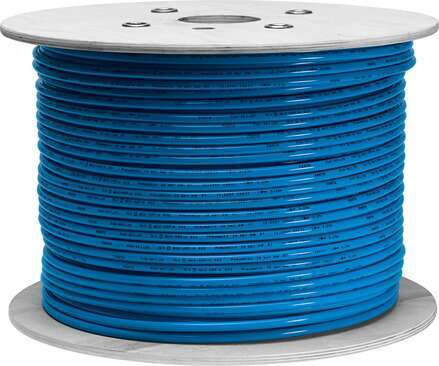

Plastic tubing 10mm PU Blue tube hose 100m

PUN-H-10X1,5-BL-300

558260

Outside diameter
10 mm
Inside diameter
7 mm
Temperature-dependent operating pressure
-0.95 bar - 10 bar
Ambient temperature
-35 °C - 60 °C


GTIN: 4052568054076'

Technical Data

  • Outside diameter10 mm
  • Flow-relevant bending radius52 mm
  • Inside diameter7 mm
  • Min. bending radius28 mm
  • Instructions on useTPE-U Ether based
  • Tubing characteristicsSuitable for energy chains
  • Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa
  • Operating pressure complete temperature range-0.95 bar ... 6 bar
  • Operating pressure complete temperature range-13.775 psi ... 87 psi
  • Temperature-dependent operating pressure-0.095 MPa ... 1 MPa
  • Temperature-dependent operating pressure-0.95 bar ... 10 bar
  • Temperature-dependent operating pressure-13.775 psi ... 145 psi
  • Note on operating pressureWater: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0–60 °C
  • ApprovalGerman Technical Control Board (TÜV)
  • Certificate issuing authorityB 013277 0527 00
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
  • Fire test materialUL94 HB
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
  • Cleanroom suitability, measured according to ISO 14644-14Element installed statically, no meaningful evaluation possible according to ISO 14644-1
  • Suitable for use with foodSee supplementary material information
  • Ambient temperature-35 °C ... 60 °C
  • Product weight according to length0.0465 kg/m
  • Pneumatic connectionFor push-in connector O.D. 10 mm
  • ColourBlue
  • Shore hardnessD 52 +/-3
  • Note on materialsRoHS-compliant
  • Material tubingTPE-U(PU)

The Global Trade Item Number (GTIN) is an international, unique number for labeling products.

DATA SHEET

OD-TUBING_EN.PDF

Plastic tubing

SKU 558260
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
