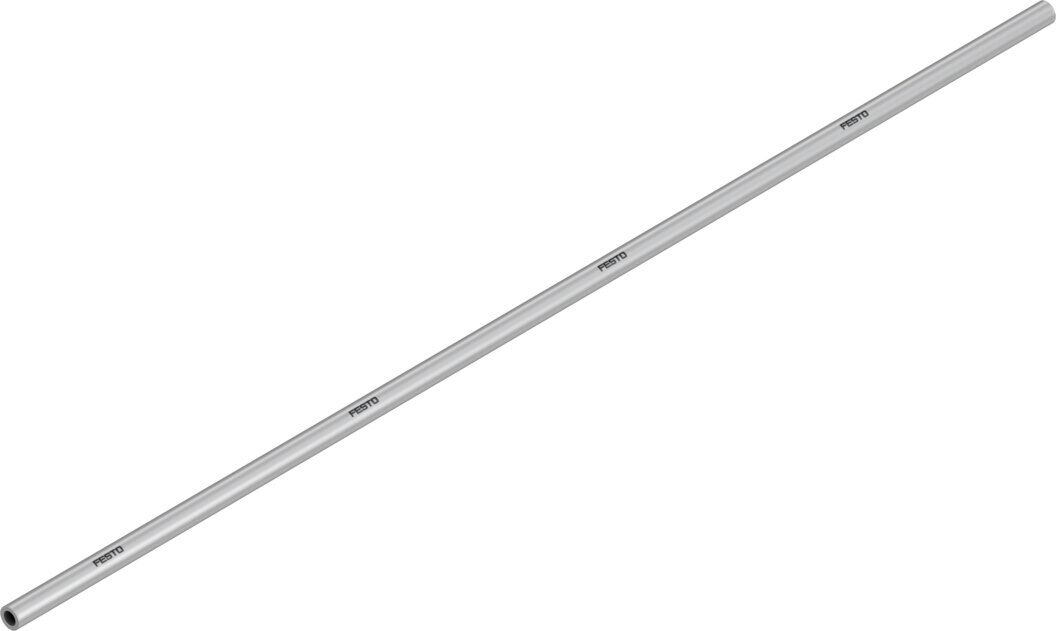

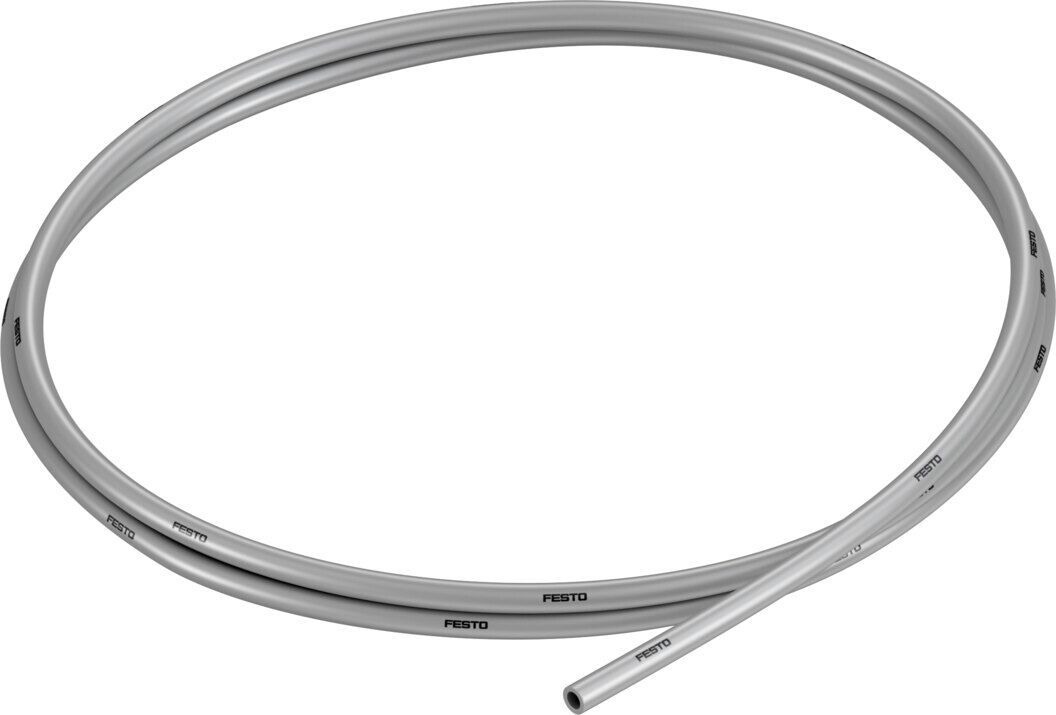

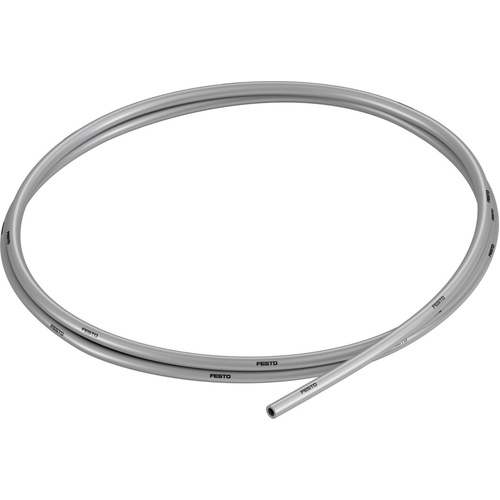

Technical Data

• Outside diameter4 mm
• Flow-relevant bending radius16 mm
• Inside diameter2.6 mm
• Min. bending radius8 mm
• Instructions on useTPE-U Ether based
• Tubing characteristicsSuitable for energy chains
• Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa
• Operating pressure complete temperature range-0.95 bar ... 6 bar
• Operating pressure complete temperature range-13.775 psi ... 87 psi
• Temperature-dependent operating pressure-0.095 MPa ... 1 MPa
• Temperature-dependent operating pressure-0.95 bar ... 10 bar
• Temperature-dependent operating pressure-13.775 psi ... 145 psi
• Note on operating pressureWater: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0–60 °C
• ApprovalGerman Technical Control Board (TÜV)
• Certificate issuing authorityB 013277 0527 00
• Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
• Fire test materialUL94 HB
• LABS (PWIS) conformityVDMA24364-B2-L
• Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
• Cleanroom suitability, measured according to ISO 14644-14Element installed statically, no meaningful evaluation possible according to ISO 14644-1
• Suitable for use with foodSee supplementary material information
• Ambient temperature-35 °C ... 60 °C
• Product weight according to length0.0085 kg/m
• Pneumatic connectionFor push-in connector O.D. 4 mm For push-in connector outside diameter of 5/32" For barbed fitting I.D. 3 mm with union nut
• ColourSilver
• Shore hardnessD 52 +/-3
• Note on materialsRoHS-compliant
• Material tubingTPE-U(PU)
