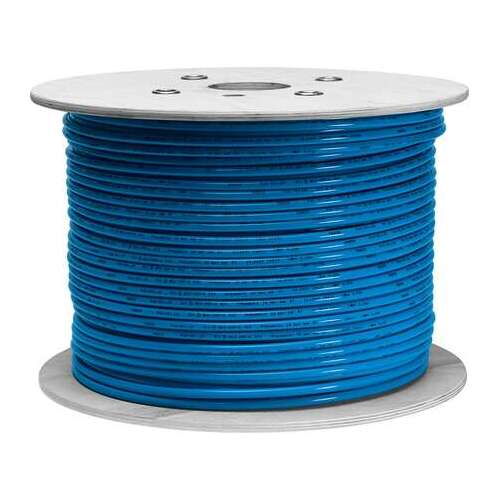

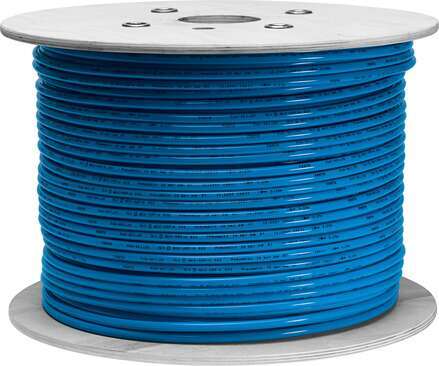

Plastic tubing 8mm PU Blue tube hose price per metre

DATA SHEET

PUN-H-8X1,25-BL-400

558259

Outside diameter
8 mm
Inside diameter
5.7 mm
Temperature-dependent operating pressure
-0.95 bar - 10 bar
Ambient temperature
-35 °C - 60 °C

GTIN: 4052568054069

Technical Data

  • Outside diameter8 mm
  • Flow-relevant bending radius37 mm
  • Inside diameter5.7 mm
  • Min. bending radius21 mm
  • Instructions on useTPE-U Ether based
  • Tubing characteristicsSuitable for energy chains
  • Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa
  • Operating pressure complete temperature range-0.95 bar ... 6 bar
  • Operating pressure complete temperature range-13.775 psi ... 87 psi
  • Temperature-dependent operating pressure-0.095 MPa ... 1 MPa
  • Temperature-dependent operating pressure-0.95 bar ... 10 bar
  • Temperature-dependent operating pressure-13.775 psi ... 145 psi
  • Note on operating pressureWater: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0–60 °C
  • ApprovalGerman Technical Control Board (TÜV)
  • Certificate issuing authorityB 013277 0527 00
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
  • Fire test materialUL94 HB
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
  • Cleanroom suitability, measured according to ISO 14644-14Element installed statically, no meaningful evaluation possible according to ISO 14644-1
  • Suitable for use with foodSee supplementary material information
  • Ambient temperature-35 °C ... 60 °C
  • Product weight according to length0.0287 kg/m
  • Pneumatic connectionFor push-in connector O.D. 8 mm For push-in connector outside diameter of 5/16" For barbed fitting inside diameter of 6 mm with union nut
  • ColourBlue
  • Shore hardnessD 52 +/-3
  • Note on materialsRoHS-compliant
  • Material tubingTPE-U(PU)



OD-TUBING_EN.PDF

Plastic tubing

SKU 558259
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
