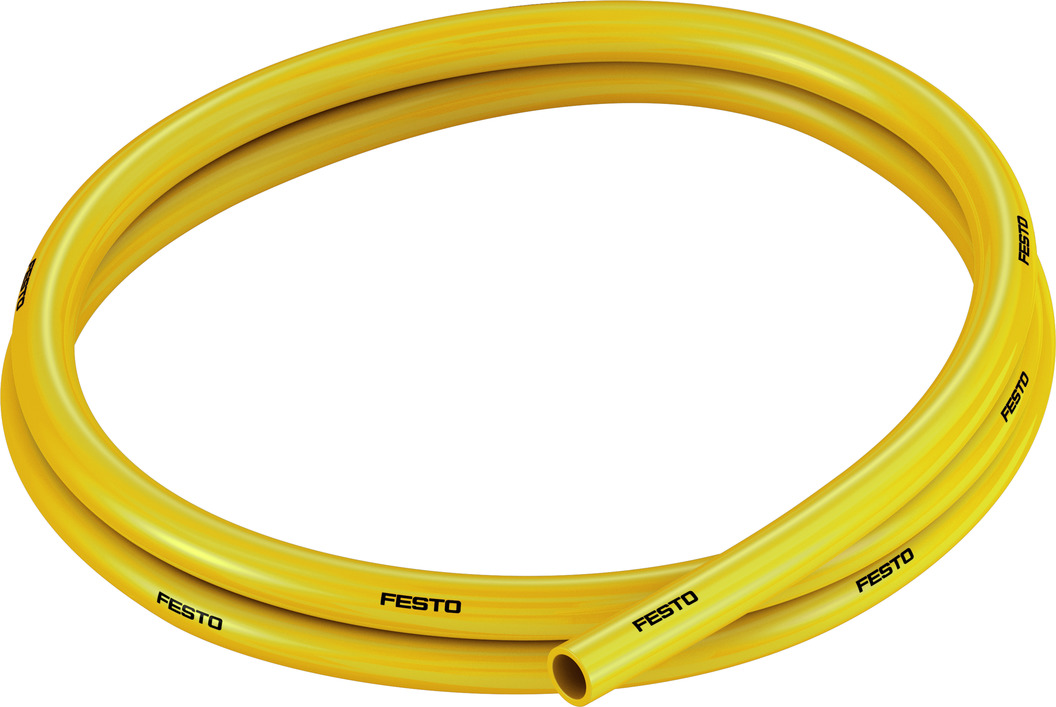

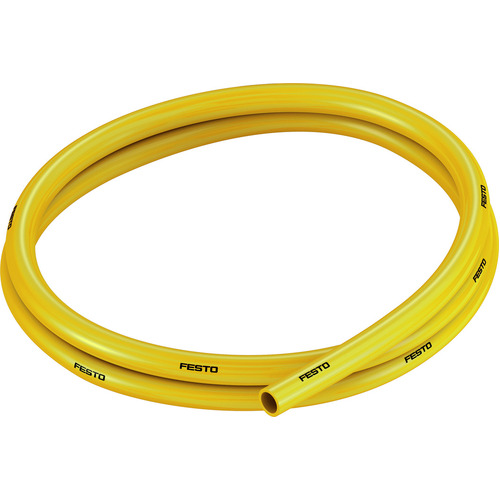

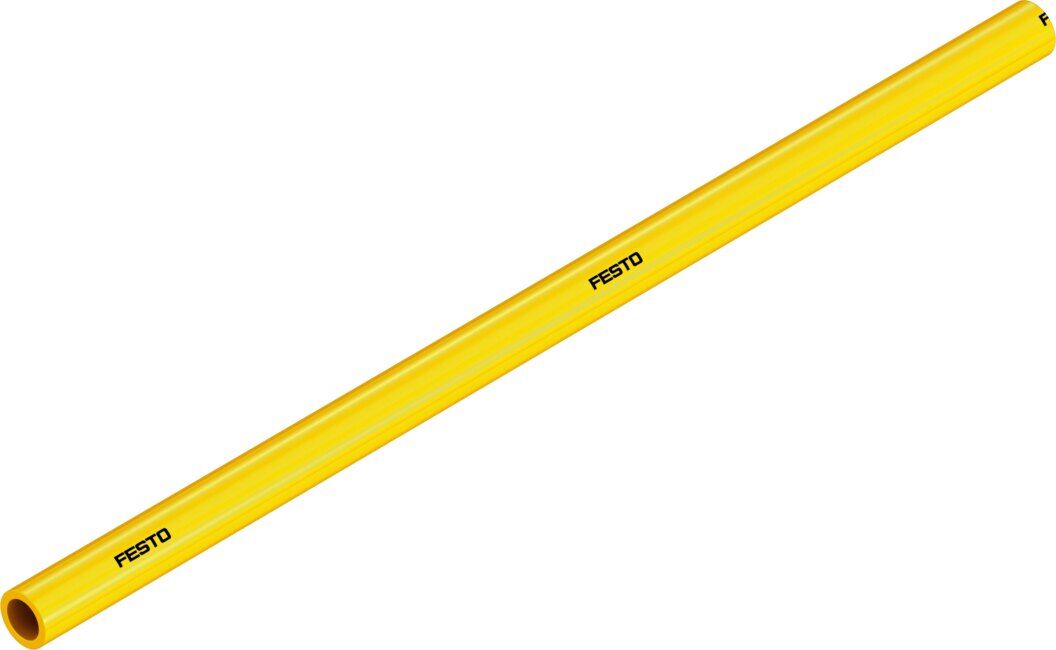

Plastic tubing (100 metre)

PUN-V0-10X2-GE-C

561720

Outside diameter
10 mm
Inside diameter
6 mm
Temperature-dependent operating pressure
-0.95 bar - 16 bar
Ambient temperature
-35 °C - 60 °C

GTIN: 4052568056582

Technical Data

  • Outside diameter10 mm
  • Flow-relevant bending radius42 mm
  • Inside diameter6 mm
  • Min. bending radius12 mm
  • Tubing characteristicsSuitable for energy chains
  • Operating pressure complete temperature range-0.095 MPa ... 0.9 MPa
  • Operating pressure complete temperature range-0.95 bar ... 9 bar
  • Operating pressure complete temperature range-13.775 psi ... 130.5 psi
  • Temperature-dependent operating pressure-0.095 MPa ... 1.6 MPa
  • Temperature-dependent operating pressure-0.95 bar ... 16 bar
  • Temperature-dependent operating pressure-13.775 psi ... 232 psi
  • Note on operating pressureFor applications with welding spatter: max. 1 MPa at 20 °C, max. 0.9 MPa at 40 °C, max. 0.7 MPa at 60 °C Water: max. 0.6 MPa at max. 50°C
  • ApprovalGerman Technical Control Board (TÜV)
  • Certificate issuing authorityB 013277 0527 00
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
  • Fire test materialUL94 V-0 (3 mm) UL94 V-2 (0.75 mm)
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature-35 °C ... 60 °C
  • Note on ambient temperatureUnpressurised use up to 90 °C
  • Product weight according to length0.064 kg/m
  • Pneumatic connectionFor push-in connector O.D. 10 mm For barbed fitting inside diameter of 6 mm
  • ColourYellow
  • Note to colourDeviates from the standard colour due to flame protection
  • Shore hardnessD 54 +/-3
  • Note on materialsRoHS-compliant
  • Material tubingTPE-U(PU)



OD-TUBING_EN.PDF

CAD data

Spare parts

Check chemical resistance

Product Documentation

Technical data

Plastic tubing

PUN-V0-10X2-GE-C

561720

  • Polyurethane
  • Flame retardant to UL 94 V0 ... V2
  • For use in the immediate vicinity of welding applications

Price per metre

Plastic tubing

SKU 561720
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
