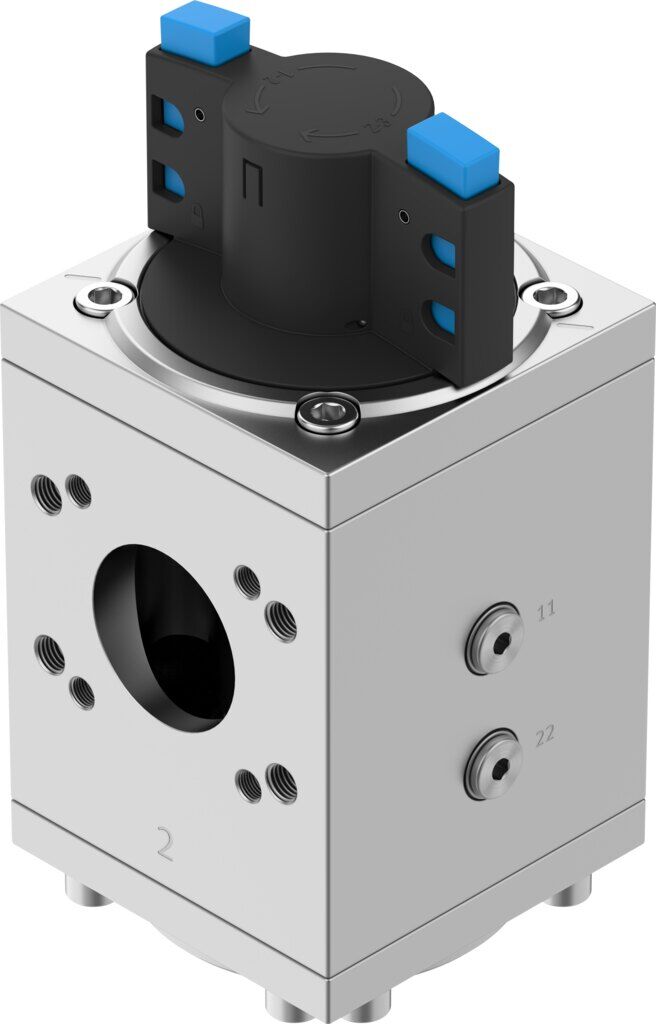

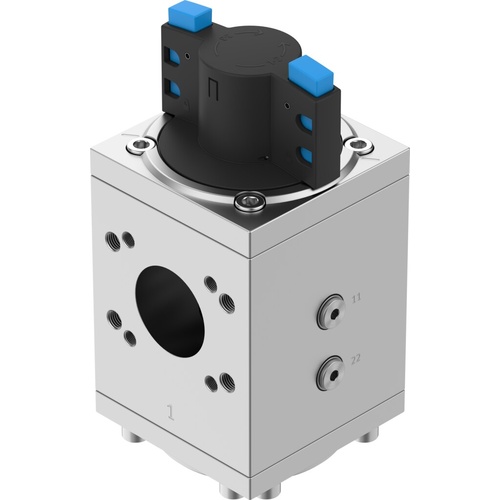

On/off valve

PVEL-H-124-HP3

1629207





GTIN: 4052568263645

Pneumatic connection, port 3
G1/2
Operating pressure
0 bar - 50 bar
Type of actuation
Manual

Technical Data

  • SeriesL
  • Nominal size DN54
  • DesignPiston gate valve
  • Type of actuationManual
  • Sealing principleSoft
  • Exhaust-air functionCannot be throttled
  • Actuator lockRotary knob with detent can be closed with accessories
  • Type of resetForce-pilot actuated
  • Type of pilotingDirect
  • Symbol00991670
  • Valve function3/2-way, double solenoid
  • Operating pressure0 MPa ... 5 MPa
  • Operating pressure0 bar ... 50 bar
  • lapUnderlap
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gas
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • Note on materialsRoHS compliant
  • LABS (PWIS) conformityVDMA24364 zone III
  • Media temperature5 °C ... 50 °C
  • Ambient temperature5 °C ... 50 °C
  • CE mark (see declaration of conformity)In accordance with EU Pressure Equipment Directive
  • UKCA marking (see declaration of conformity)to UK Pressure Equipment Regulations
  • Suitable for use with foodSee supplementary material information
  • Mounting positionAny
  • Product weight5900 g
  • Pneumatic connection, port 3G1/2
  • Material piston slideWrought aluminium alloy
  • Material sealsNBR Packaging unit
  • Material housingWrought aluminium alloy





SKU 1629207
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
