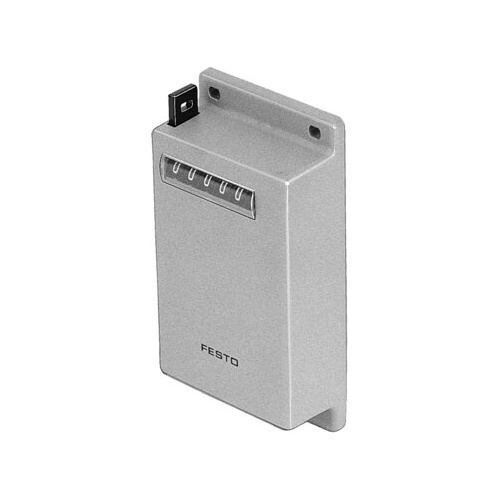

Adding counter

PZA-A-B

14992





GTIN: 4052568112684

Min. reset pressure
2 bar
Operating pressure
2 bar - 8 bar

Technical Data

  • DesignMechanical sequence counter with pneumatic drive
  • Type of resetPushbutton or pneumatic signal
  • Display6-digit
  • Drop-off pressure drive0.2 ± 0.1 bar
  • Drop-off pressure reset0.15 ± 0.1 bar
  • Response pressure drive0.6 ± 0.2 bar
  • Response pressure reset0.6 ± 0.2 bar
  • Operating pressure2 bar ... 8 bar
  • Min. reset pressure2 bar
  • Min. pulse length drive10 ms
  • Min. pulse length reset180 ms
  • Min. pause period drive15 ms
  • Min. pause period reset50 ms
  • Explosion protectionZone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation not possible
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-10 °C ... 60 °C
  • Product weight155 g
  • Type of mountingWith through-hole
  • Pneumatic connectionM5
  • Material housingABS



SKU 14992
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
