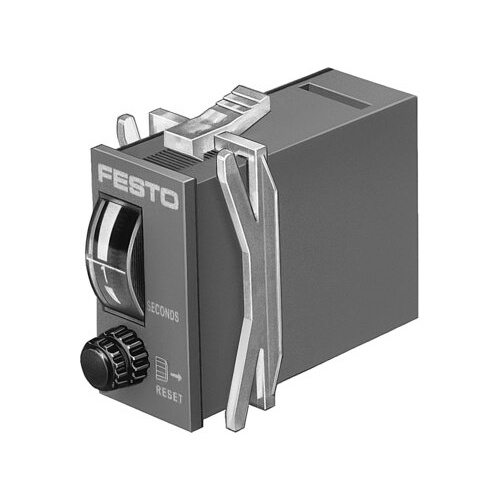

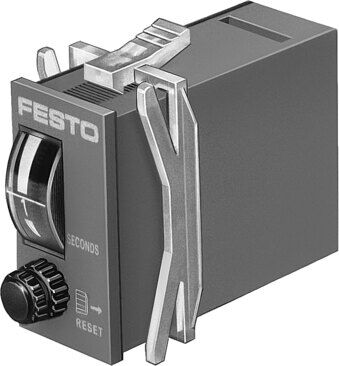

TimerPZVT-120-SEC

177616

GTIN: 4052568143886

Technical Data Timer PZVT-120-SEC

  • DesignMechanical sequence counter with pneumatic drive
  • Switch-off pressure≤0.1 bar
  • Operating pressure2 bar ... 6 bar
  • Switch-on pressure≥1.6 bar
  • Standard nominal flow rate (standardised to DIN 1343)50 l/min
  • Adjustable delay time8 s ... 120 s
  • Adjustment accuracy± 3 s
  • Pause duration for reset≥200 ms
  • Repetition accuracy of time setting± 1.2 s
  • Explosion protectionZone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation not possible
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Degree of protectionIP54 With protective cap and panel frame To IEC 60529
  • Ambient temperature-10 °C ... 60 °C
  • Product weight45 g
  • Type of mountingFront panel mounting
  • Pneumatic connectionFemale thread M5
  • Note on materialsRoHS compliant
  • Material housingABS





SKU 177616
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
