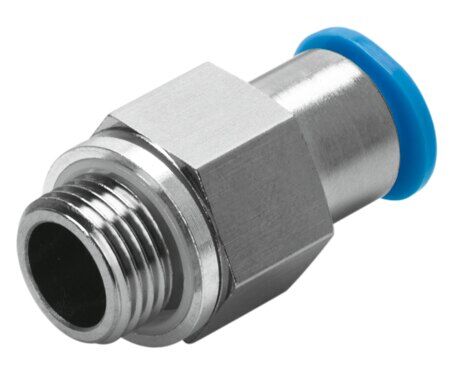

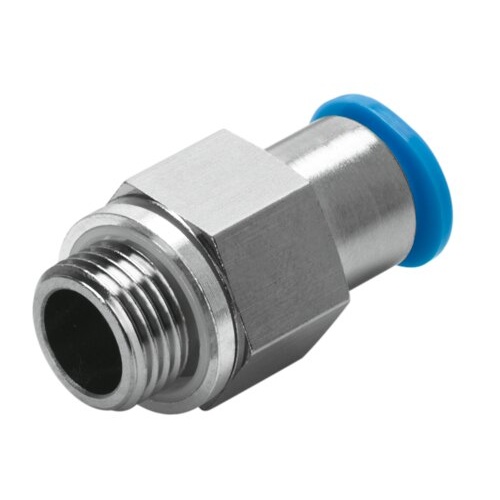

Push-in fitting, self-sealing

QSK-G3/8-12

186302





GTIN: 4052568040888

Pneumatic connection, port 1
Male thread G3/8
Pneumatic connection, port 2
For tubing outer diameter of 12 mm
Ambient temperature
-10 °C - 80 °C
Nominal size
6.1 mm
Temperature-dependent operating pressure
-0.95 bar - 14 bar

Technical Data

  • SizeStandard
  • Nominal size6.1 mm
  • Approved tubing typePAN- PAN-MF- PAN-R- PAN-V0- PEN- PFAN- PLN- PTFEN- PUN- PUN-CM- PUN-DUO- PUN-H- PUN-H-DUO- PUN-S- PUN-S-DUO- PUN-V0-
  • Tubing insertion depth29.1 mm
  • Type of seal on screwed plugSealing ring
  • Mounting positionoptional
  • DesignStraight design
  • Size of pack1
  • DesignPush-pull principle
  • Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa
  • Operating pressure complete temperature range-0.95 bar ... 6 bar
  • Operating pressure complete temperature range-13.775 psi ... 87 psi
  • Temperature-dependent operating pressure-0.095 MPa ... 1.4 MPa
  • Temperature-dependent operating pressure-0.95 bar ... 14 bar
  • Temperature-dependent operating pressure-13.775 psi ... 203 psi
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-10 °C ... 80 °C
  • Nominal torque15.5 Nm
  • Tolerance for nominal tightening torque± 20%
  • Product weight63 g
  • Type of mountingExternal hexagon, size 21 mm
  • Pneumatic connection, port 1Male thread G3/8
  • Pneumatic connection, port 2For tubing outer diameter of 12 mm
  • Colour of release ringBlue
  • Note on materialsRoHS-compliant
  • Material housingBrass, nickel-plated
  • Material release ringPOM
  • Material tubing sealNBR
  • Material tubing clamp componentHigh-alloy stainless steel
