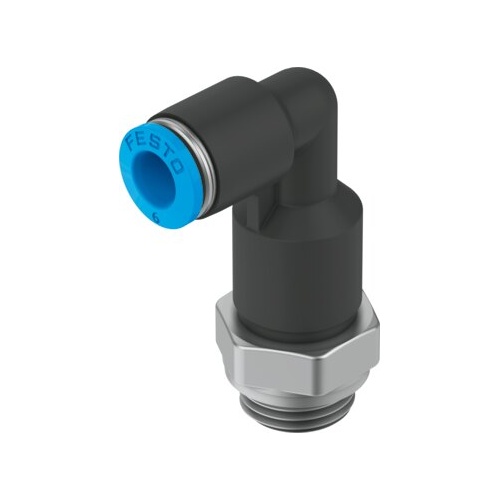

Push-in L-fitting, long

QSLL-G1/8-6-100

133016





GTIN: 4052568029074

Pneumatic connection, port 1
Male thread G1/8
Pneumatic connection, port 2
For tubing outside diameter of 6 mm
Temperature-dependent operating pressure
-0.95 bar - 14 bar
Ambient temperature
-10 °C - 80 °C
Nominal size
4.3 mm

Technical Data

  • SizeStandard
  • Nominal size4.3 mm
  • Tubing insertion depth17 mm
  • Type of seal on screwed plugSealing ring
  • Mounting positionoptional
  • DesignL-shape, long
  • Size of pack100
  • DesignPush-pull principle
  • Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa
  • Operating pressure complete temperature range-0.95 bar ... 6 bar
  • Operating pressure complete temperature range-13.775 psi ... 87 psi
  • Temperature-dependent operating pressure-0.095 MPa ... 1.4 MPa
  • Temperature-dependent operating pressure-0.95 bar ... 14 bar
  • Temperature-dependent operating pressure-13.775 psi ... 203 psi
  • Note on operating pressureWater: max. 0.6 MPa at max. 50°C
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
  • Note on operating and pilot mediumLubricated operation possible Water: G-thread only possible with sealing ring type OL as additional accessory
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
  • Ambient temperature-10 °C ... 80 °C
  • Nominal torque5.4 Nm
  • Tolerance for nominal tightening torque± 20%
  • Product weight15 g
  • Type of mountingExternal hexagon, A/F 13 mm
  • Pneumatic connection, port 1Male thread G1/8
  • Pneumatic connection, port 2For tubing outside diameter of 6 mm
  • Colour of release ringBlue
  • Material screwed plugNickel-plated brass
  • Note on materialsRoHS-compliant
  • Material housingPBT
  • Material release ringPOM
  • Material tubing sealNBR
  • Material tubing clamp componentHigh-alloy stainless steel



SKU 133016
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
