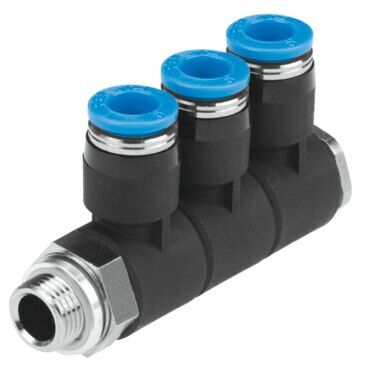

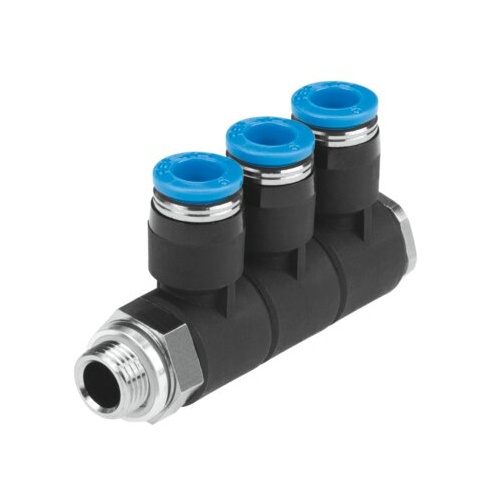

Multiple distributor QSLV3-G1/4-6

Technical Data Multiple distributor QSLV3-G1/4-6

• SizeStandard
• Nominal size3.2 mm
• Tubing insertion depth17 mm
• Type of seal on screwed plugSealing ring
• Mounting positionAny
• DesignPush-pull principle
• Size of pack1
• Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa
• Operating pressure complete temperature range-0.95 bar ... 6 bar
• Operating pressure complete temperature range-13.775 psi ... 87 psi
• Temperature-dependent operating pressure-0.095 MPa ... 1.4 MPa
• Temperature-dependent operating pressure-0.95 bar ... 14 bar
• Temperature-dependent operating pressure-13.775 psi ... 203 psi
• Note on operating pressureWater: max. 0.6 MPa at 0 - 50 °C
• Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
• Note on operating and pilot mediumLubricated operation possible Water: G-thread only possible with sealing ring type OL as additional accessory
• Corrosion resistance class CRC1 - Low corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Ambient temperature-10 °C ... 80 °C
• Nominal torque9 Nm
• Tolerance for nominal tightening torque±20%
• Product weight43 g
• Number of outputs3
• Number of supply lines1
• Pneumatic connection, port 1Male thread G1/4
• Pneumatic connection, port 2For tubing outside diameter of 6 mm
• Colour of release ringBlue
• Note on materialsRoHS compliant
• Material housingPBT
• Material hollow boltBrass, nickel-plated
• Material release ringPOM
• Material tubing sealNBR
• Material tubing clamp componentHigh-alloy stainless steel

Technical Data Multiple distributor QSLV3-G1/4-6

• SizeStandard
• Nominal size3.2 mm
• Tubing insertion depth17 mm
• Type of seal on screwed plugSealing ring
• Mounting positionAny
• DesignPush-pull principle
• Size of pack10
• Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa
• Operating pressure complete temperature range-0.95 bar ... 6 bar
• Operating pressure complete temperature range-13.775 psi ... 87 psi
• Temperature-dependent operating pressure-0.095 MPa ... 1.4 MPa
• Temperature-dependent operating pressure-0.95 bar ... 14 bar
• Temperature-dependent operating pressure-13.775 psi ... 203 psi
• Note on operating pressureWater: max. 0.6 MPa at 0 - 50 °C
• Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
• Note on operating and pilot mediumLubricated operation possible Water: G-thread only possible with sealing ring type OL as additional accessory
• Corrosion resistance class CRC1 - Low corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Ambient temperature-10 °C ... 80 °C
• Nominal torque9 Nm
• Tolerance for nominal tightening torque±20%
• Product weight43 g
• Number of outputs3
• Number of supply lines1
• Pneumatic connection, port 1Male thread G1/4
• Pneumatic connection, port 2For tubing outside diameter of 6 mm
• Colour of release ringBlue
• Note on materialsRoHS compliant
• Material housingPBT
• Material hollow boltBrass, nickel-plated
• Material release ringPOM
• Material tubing sealNBR
• Material tubing clamp componentHigh-alloy stainless steel
