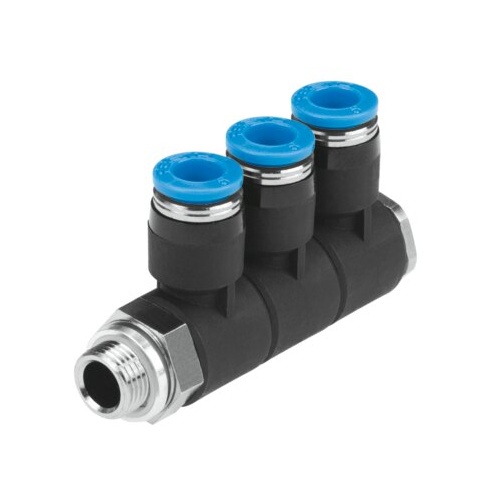

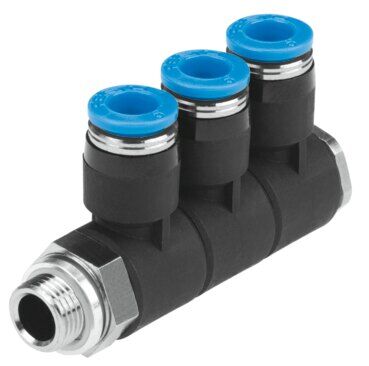

Multiple distributor QSLV3-G1/8-6

186234

GTIN: 4052568040383

Pneumatic connection, port 1
Male thread G1/8
Pneumatic connection, port 2
For tubing outside diameter of 6 mm
Number of supply lines
1
Number of outputs
3



Technical Data Multiple distributor QSLV3-G1/8-6

  • SizeStandard
  • Nominal size3.2 mm
  • Tubing insertion depth17 mm
  • Type of seal on screwed plugSealing ring
  • Mounting positionAny
  • DesignPush-pull principle
  • Size of pack10
  • Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa
  • Operating pressure complete temperature range-0.95 bar ... 6 bar
  • Operating pressure complete temperature range-13.775 psi ... 87 psi
  • Temperature-dependent operating pressure-0.095 MPa ... 1.4 MPa
  • Temperature-dependent operating pressure-0.95 bar ... 14 bar
  • Temperature-dependent operating pressure-13.775 psi ... 203 psi
  • Note on operating pressureWater: max. 0.6 MPa at 0 - 50 °C
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
  • Note on operating and pilot mediumLubricated operation possible Water: G-thread only possible with sealing ring type OL as additional accessory
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-10 °C ... 80 °C
  • Nominal torque5.4 Nm
  • Tolerance for nominal tightening torque±20%
  • Product weight35 g
  • Number of outputs3
  • Number of supply lines1
  • Pneumatic connection, port 1Male thread G1/8
  • Pneumatic connection, port 2For tubing outside diameter of 6 mm
  • Colour of release ringBlue
  • Note on materialsRoHS compliant
  • Material housingPBT
  • Material hollow boltBrass, nickel-plated
  • Material release ringPOM
  • Material tubing sealNBR
  • Material tubing clamp componentHigh-alloy stainless steel



SKU 186234
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
