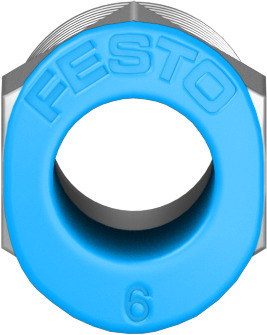

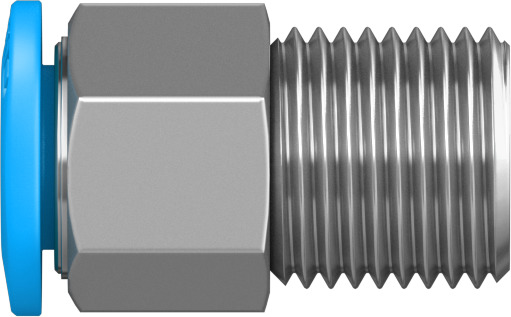

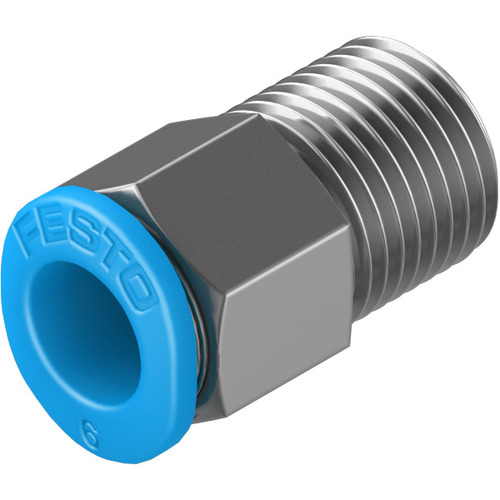

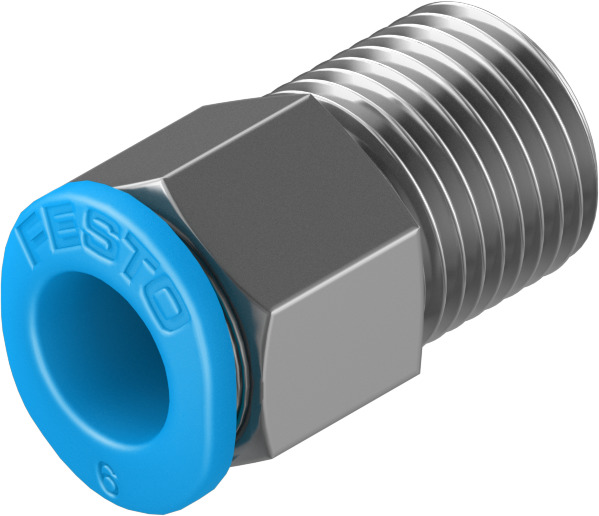

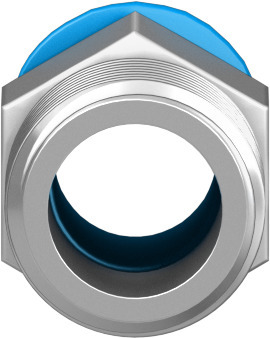

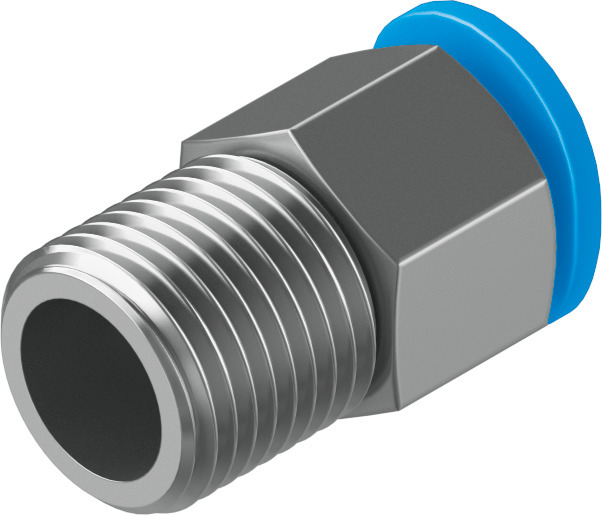

Push-in fitting

QSM-1/8-6

153307

GTIN: 4052568011291

Downloads

QSM_EN.PDF

Technical data

Links

Spare parts



Pneumatic connection, port 1

Male thread R1/8

Pneumatic connection, port 2

For tubing outside diameter of 6 mm

Temperature-dependent operating pressure -0.95 bar - 14 bar

Ambient temperature -10 °C - 80 °C

Nominal size 4.5 mm

Technical Data

  • SizeMini
  • Nominal size4.5 mm
  • Tubing insertion depth12 mm
  • Type of seal on screwed plugCoating
  • Mounting positionoptional
  • DesignStraight design
  • Size of pack10
  • DesignPush-pull principle
  • Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa
  • Operating pressure complete temperature range-0.95 bar ... 6 bar
  • Operating pressure complete temperature range-13.775 psi ... 87 psi
  • Temperature-dependent operating pressure-0.095 MPa ... 1.4 MPa
  • Temperature-dependent operating pressure-0.95 bar ... 14 bar
  • Temperature-dependent operating pressure-13.775 psi ... 203 psi
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-10 °C ... 80 °C
  • Nominal torque7 Nm
  • Tolerance for nominal tightening torque± 20%
  • Product weight6 g
  • Type of mountingExternal hexagon, size 10 mm
  • Pneumatic connection, port 1Male thread R1/8
  • Pneumatic connection, port 2For tubing outside diameter of 6 mm
  • Colour of release ringBlue
  • Note on materialsRoHS-compliant
  • Material housingBrass, nickel-plated
  • Material release ringPOM
  • Material tubing sealNBR
  • Material tubing clamp componentHigh-alloy stainless steel

Push-in fitting

Push-in fitting

Push-in fitting

SKU 153307
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
