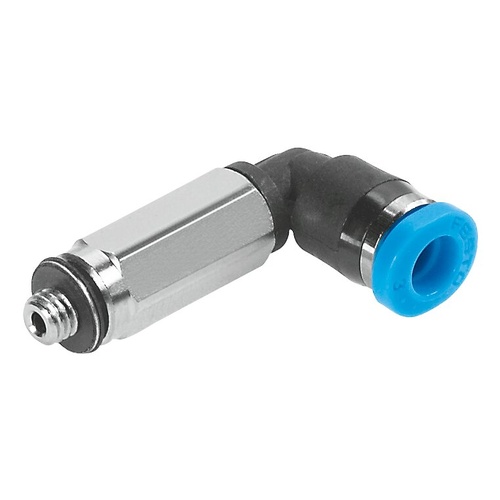

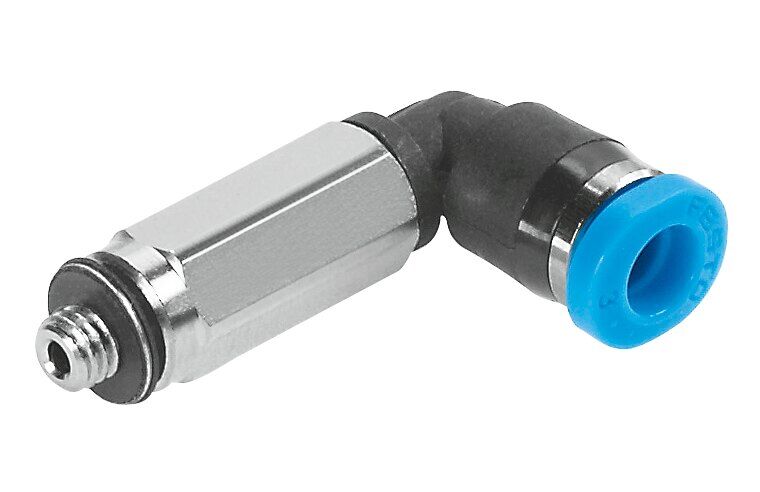

Push-in L-fitting, long

QSMLL-M5-3-100

133012





GTIN: 4052568029036

Pneumatic connection, port 1
Male thread M5
Pneumatic connection, port 2
For tubing outer diameter of 3 mm
Temperature-dependent operating pressure
-0.95 bar - 14 bar
Ambient temperature
-10 °C - 80 °C
Nominal size
1.5 mm

Technical Data

  • SizeMini
  • Nominal size1.5 mm
  • Tubing insertion depth9.5 mm
  • Type of seal on screwed plugSealing ring
  • Mounting positionoptional
  • DesignL-shape, long
  • Size of pack100
  • DesignPush-pull principle
  • Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa
  • Operating pressure complete temperature range-0.95 bar ... 6 bar
  • Operating pressure complete temperature range-13.775 psi ... 87 psi
  • Temperature-dependent operating pressure-0.095 MPa ... 1.4 MPa
  • Temperature-dependent operating pressure-0.95 bar ... 14 bar
  • Temperature-dependent operating pressure-13.775 psi ... 203 psi
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-10 °C ... 80 °C
  • Nominal torque1.2 Nm
  • Tolerance for nominal tightening torque± 20%
  • Product weight7.7 g
  • Type of mountingExternal hexagon, A/F 8 mm
  • Pneumatic connection, port 1Male thread M5
  • Pneumatic connection, port 2For tubing outer diameter of 3 mm
  • Colour of release ringBlue
  • Material screwed plugNickel-plated brass
  • Note on materialsRoHS-compliant
  • Material housingPBT
  • Material release ringPOM
  • Material tubing sealNBR
  • Material tubing clamp componentHigh-alloy stainless steel
