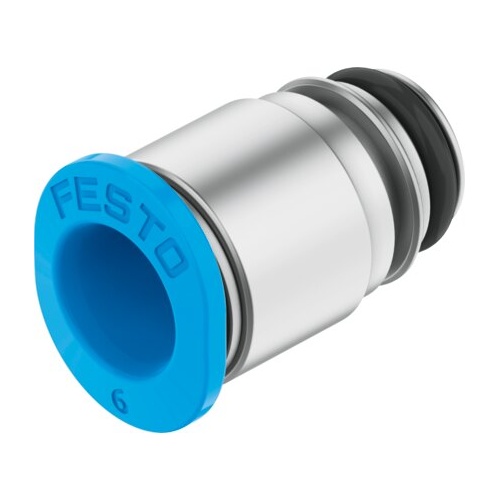

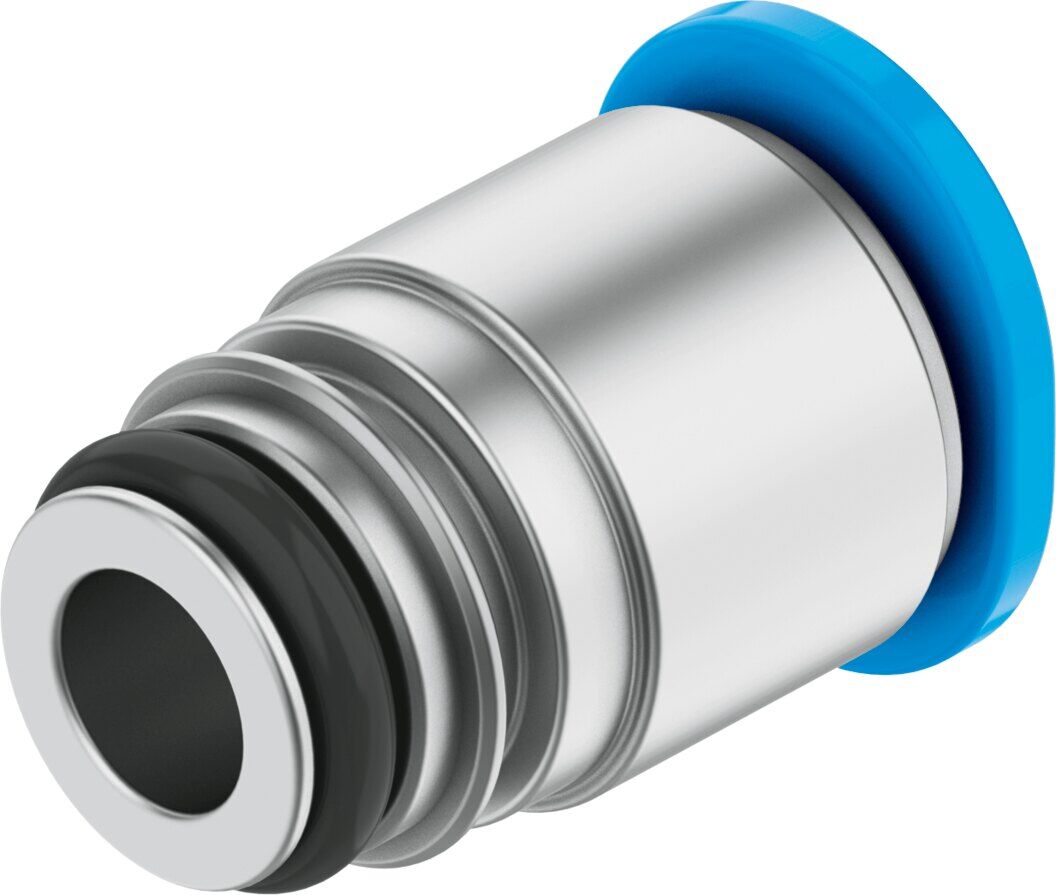

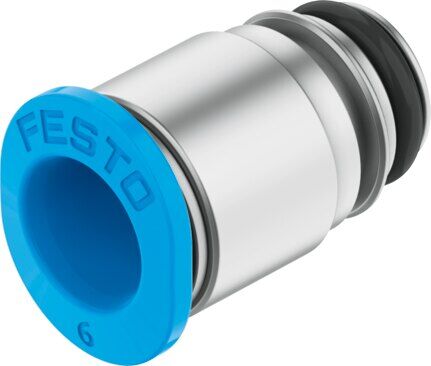

CartridgeQSP10-6

172973

GTIN: 4052568037369

Pneumatic connection, port 1
Cartridge 10 mm
Pneumatic connection, port 2
For tubing outside diameter of 6 mm
Ambient temperature
0 °C - 60 °C





Technical Data Cartridge QSP10-6

  • Tubing insertion depth12 mm
  • Type of seal on screwed plugO-ring
  • Mounting positionAny
  • DesignStraight design
  • Size of pack10
  • DesignPush-pull principle
  • Operating pressure complete temperature range-0.095 MPa ... 1 MPa
  • Operating pressure complete temperature range-0.95 bar ... 10 bar
  • Operating pressure complete temperature range-13.775 psi ... 145 psi
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature0 °C ... 60 °C
  • Product weight3.25 g
  • Type of mountingMounting pin
  • Pneumatic connection, port 1Cartridge 10 mm
  • Pneumatic connection, port 2For tubing outside diameter of 6 mm
  • Colour of release ringBlue
  • Note on materialsRoHS compliant
  • Material housingBrass, nickel-plated
SKU 172973
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
