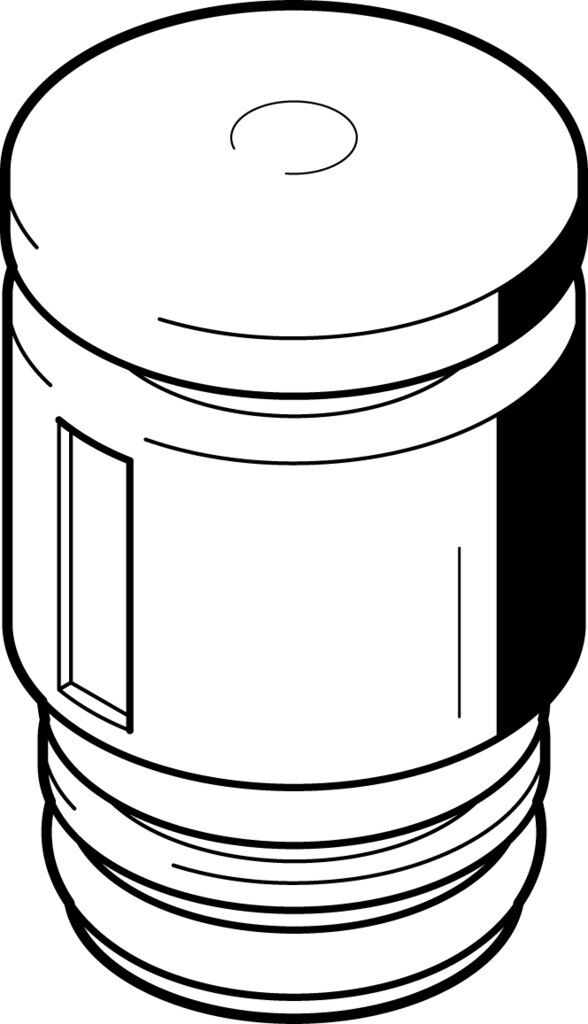

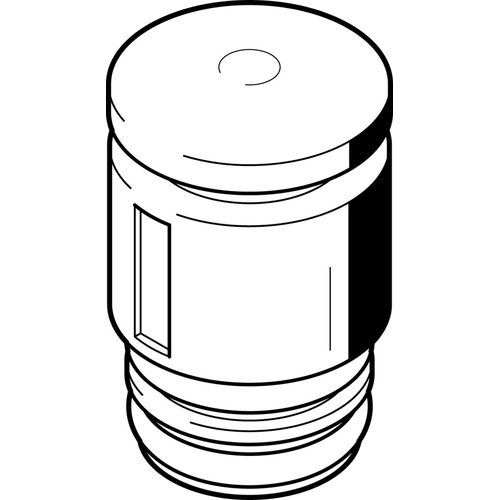

Blanking plugQSP14-PTB

172987

GTIN: 4052568037383

Pneumatic connection, port 1
Cartridge 14 mm
Ambient temperature
-10 °C - 60 °C



Technical Data Blanking plug QSP14-PTB

  • SizeStandard
  • Mounting positionAny
  • DesignStraight design
  • Size of pack1
  • Operating pressure complete temperature range0.095 MPa ... 1 MPa
  • Operating pressure complete temperature range0.95 bar ... 10 bar
  • Operating pressure complete temperature range13.775 psi ... 145 psi
  • Maritime classificationSee certificate
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-10 °C ... 60 °C
  • Product weight2.7 g
  • Type of mountingMounting pin
  • Pneumatic connection, port 1Cartridge 14 mm
  • Note on materialsRoHS compliant
  • Material housingPA
  • Material tubing sealNBR
SKU 172987
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
