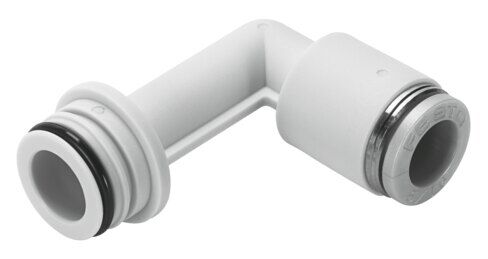

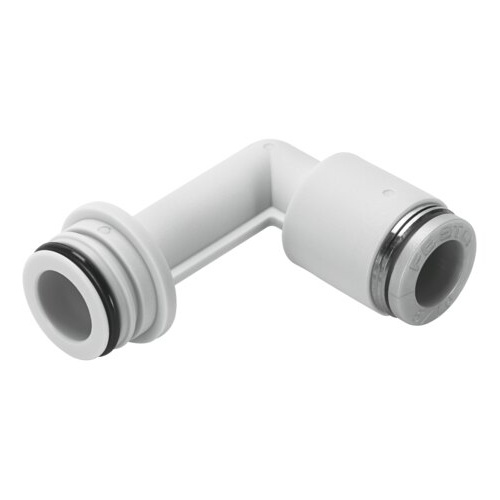

Cartridge

QSPLLKG18-3/8-U

132953





GTIN: 4052568028855

Pneumatic connection, port 1
Cartridge 18 mm
Pneumatic connection, port 2
For tubing outside diameter of 3/8"
Operating pressure complete temperature range
-0.95 bar - 10 bar
Ambient temperature
-5 °C - 60 °C
Nominal size
6.2 mm

Technical Data

  • SizeStandard
  • Nominal size6.2 mm
  • Mounting positionoptional
  • DesignL-shape, long
  • Size of pack10
  • DesignPush-pull principle
  • Operating pressure complete temperature range-0.095 MPa ... 1 MPa
  • Operating pressure complete temperature range-0.95 bar ... 10 bar
  • Operating pressure complete temperature range-13.775 psi ... 145 psi
  • Maritime classificationSee certificate
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-5 °C ... 60 °C
  • Product weight12.2 g
  • Type of mountingMounting pin
  • Pneumatic connection, port 1Cartridge 18 mm
  • Pneumatic connection, port 2For tubing outside diameter of 3/8"
  • Ambient temperature23 °F ... 140 °F
  • Colour of release ringgrey
  • Note on materialsRoHS-compliant
  • Material housingPA-reinforced
  • Material release ringPOM
  • Material tubing sealNBR
  • Material tubing clamp componentHigh-alloy stainless steel



SKU 132953
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
