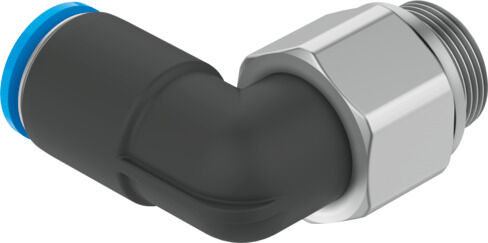

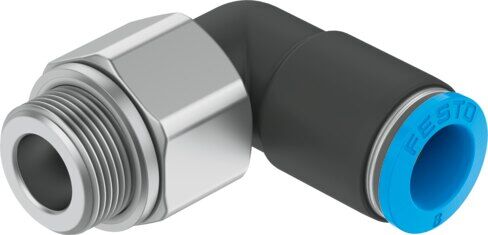

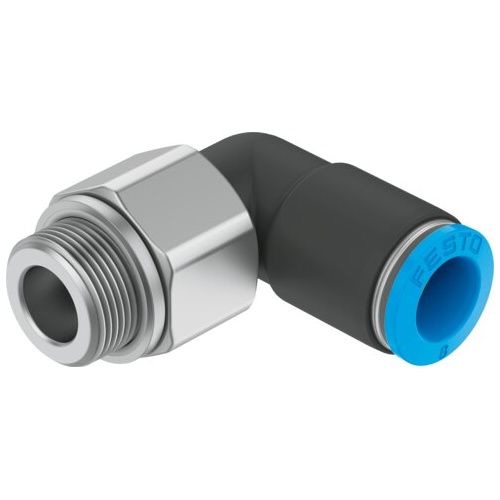

Push-in L-fitting, rotatable QSRL-G3/8-8

186290

GTIN: 4052568076115

Pneumatic connection, port 1
Male thread G3/8
Pneumatic connection, port 2
For tubing outside diameter of 8 mm
Ambient temperature
0 °C - 60 °C
Nominal size
4.6 mm
Temperature-dependent operating pressure
-0.95 bar - 14 bar

Technical Data Push-in L-fitting, rotatable QSRL-G3/8-8

  • SizeStandard
  • Nominal size4.6 mm
  • Tubing insertion depth18.2 mm
  • Type of seal on screwed plugSealing ring
  • Mounting positionAny
  • DesignL-shape
  • Size of pack1
  • DesignPush-pull principle
  • Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa
  • Operating pressure complete temperature range-0.95 bar ... 6 bar
  • Operating pressure complete temperature range-13.775 psi ... 87 psi
  • Temperature-dependent operating pressure-0.095 MPa ... 1.4 MPa
  • Temperature-dependent operating pressure-0.95 bar ... 14 bar
  • Temperature-dependent operating pressure-13.775 psi ... 203 psi
  • Max. rotational speed400 rpm
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature0 °C ... 60 °C
  • Max. radial torque0.015 Nm
  • Nominal torque15.5 Nm
  • Tolerance for nominal tightening torque±20%
  • Product weight41 g
  • Type of mountingExternal hex SW19
  • Pneumatic connection, port 1Male thread G3/8
  • Pneumatic connection, port 2For tubing outside diameter of 8 mm
  • Colour of release ringBlue
  • Material screwed plugNickel-plated brass
  • Note on materialsRoHS compliant
  • Material housingPBT
  • Material release ringPOM
  • Material tubing sealNBR
  • Material tubing clamp componentHigh-alloy stainless steel





SKU 186290
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
