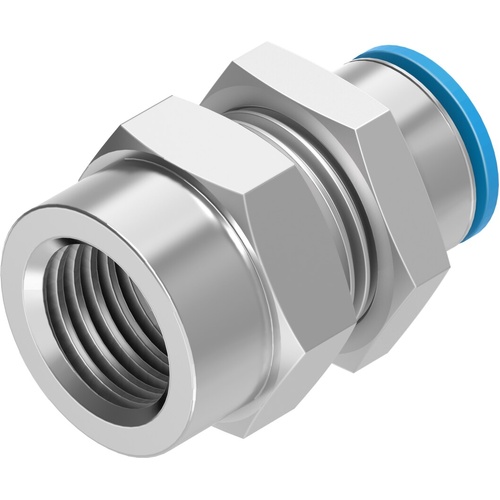

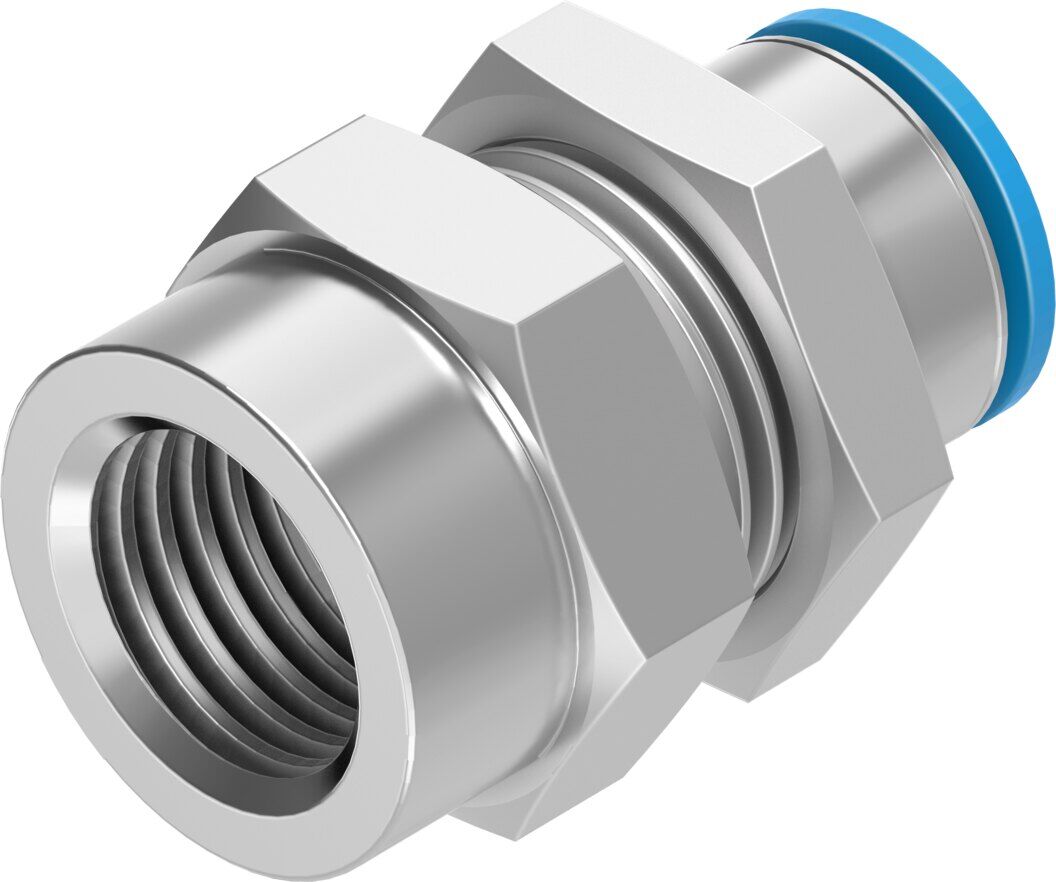

Bulkhead push-in fitting

QSSF-1/8-4-B

153162





GTIN: 4052568032500

Pneumatic connection, port 1
Female thread G1/8
Pneumatic connection, port 2
For tubing outside diameter of 4 mm
Temperature-dependent operating pressure
-0.95 bar - 14 bar
Ambient temperature
-10 °C - 80 °C
Nominal size
3 mm

Technical Data

  • SizeStandard
  • Nominal size3 mm
  • Tubing insertion depth14.9 mm
  • Mounting positionoptional
  • DesignBulkhead
  • Size of pack10
  • DesignPush-pull principle
  • Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa
  • Operating pressure complete temperature range-0.95 bar ... 6 bar
  • Operating pressure complete temperature range-13.775 psi ... 87 psi
  • Temperature-dependent operating pressure-0.095 MPa ... 1.4 MPa
  • Temperature-dependent operating pressure-0.95 bar ... 14 bar
  • Temperature-dependent operating pressure-13.775 psi ... 203 psi
  • Note on operating pressureWater: max. 0.6 MPa at max. 50°C
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
  • Note on operating and pilot mediumLubricated operation possible
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
  • Ambient temperature-10 °C ... 80 °C
  • Nominal torque7 Nm
  • Tolerance for nominal tightening torque± 20%
  • Product weight17 g
  • Type of mountingExternal hexagon, size 14 mm
  • Pneumatic connection, port 1Female thread G1/8
  • Pneumatic connection, port 2For tubing outside diameter of 4 mm
  • Colour of release ringBlue
  • Note on materialsRoHS-compliant
  • Material housingBrass, nickel-plated
  • Material release ringPOM
  • Material nutNickel-plated brass
  • Material tubing sealNBR
  • Material tubing clamp componentHigh-alloy stainless steel



SKU 153162
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
