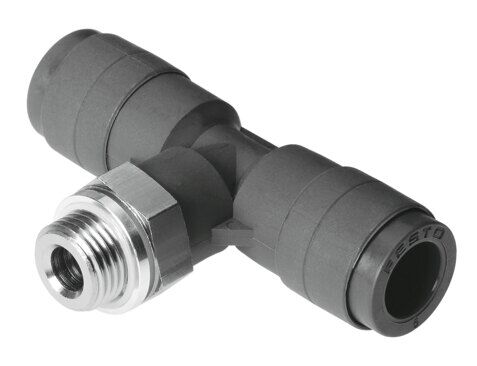

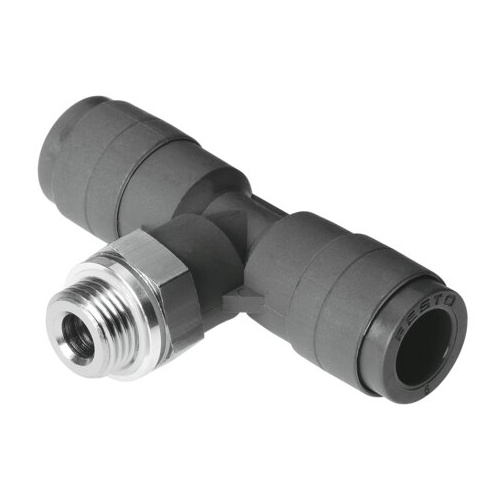

Push-in T-fitting QST-V0-G3/8-8

186342

GTIN: 4052568041281

Pneumatic connection, port 1
Male thread G3/8
Pneumatic connection, port 2
For tubing outside diameter of 8 mm
Ambient temperature
0 °C - 60 °C
Nominal size
6.7 mm
Operating pressure complete temperature range
-0.95 bar - 10 bar





Technical Data Push-in T-fitting QST-V0-G3/8-8

  • SizeStandard
  • Nominal size6.7 mm
  • Fire test materialUL94 V-0 (housing) UL94 V-0 (releasing ring)
  • Type of seal on screwed plugSealing ring
  • DesignT-shape
  • Size of pack10
  • DesignPush-pull principle
  • Operating pressure complete temperature range-0.095 MPa ... 1 MPa
  • Operating pressure complete temperature range-0.95 bar ... 10 bar
  • Operating pressure complete temperature range-13.775 psi ... 145 psi
  • Note on operating pressureWater: max. 0.6 MPa at max. 50°C
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
  • Note on operating and pilot mediumLubricated operation possible
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature0 °C ... 60 °C
  • Nominal torque15.5 Nm
  • Tolerance for nominal tightening torque±20%
  • Product weight39 g
  • Type of mountingExternal hex SW19
  • Pneumatic connection, port 1Male thread G3/8
  • Pneumatic connection, port 2For tubing outside diameter of 8 mm
  • Colour of release ringBlack
  • Material screwed plugNickel-plated brass
  • Note on materialsRoHS compliant
  • Material housingPBT
  • Material thread sealAluminium PBT
  • Material release ringPBT
  • Material tubing sealNBR
  • Material tubing clamp componentHigh-alloy stainless steel Brass
SKU 186342
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
