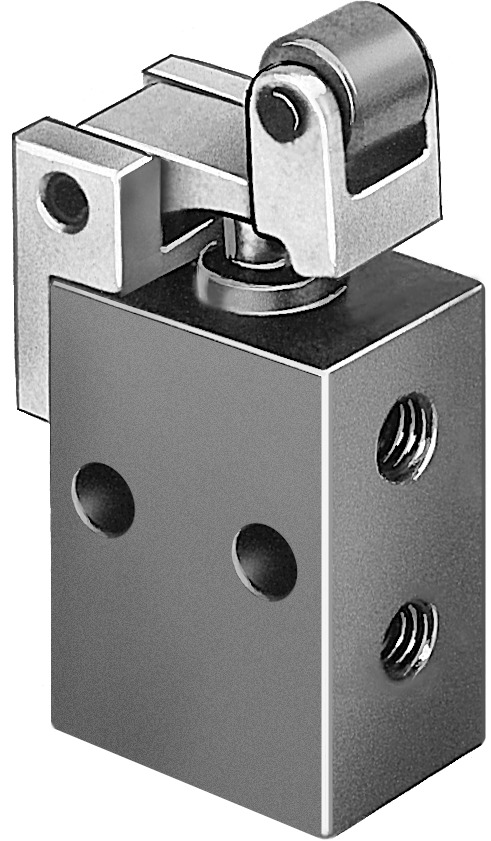

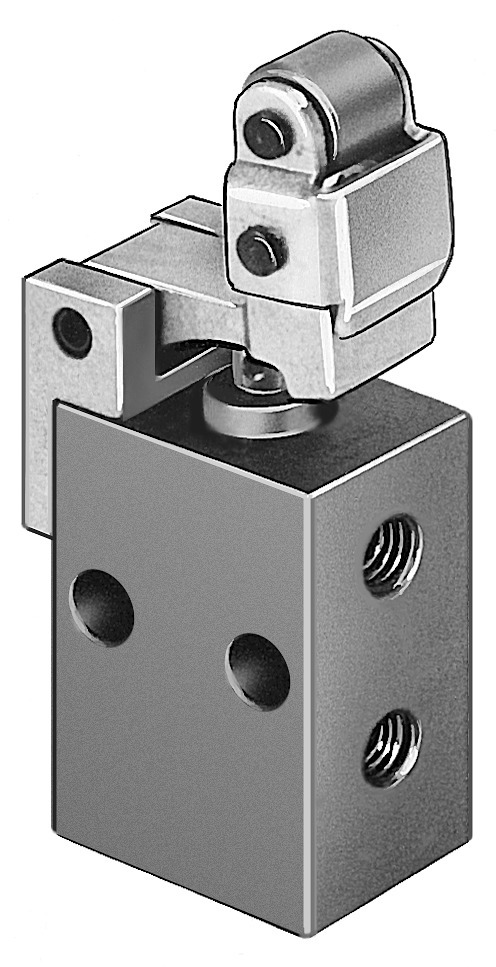

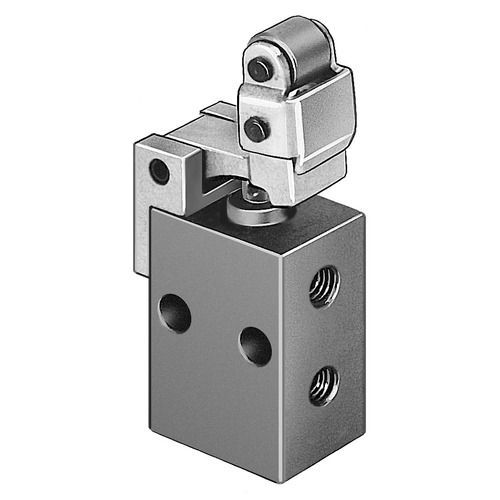

Roller lever valve

R-3-M5

3629

Technical Data

  • Valve function3/2-way, closed, monostable
  • Type of actuationMechanical
  • Standard nominal flow rate (standardised to DIN 1343)80 l/min
  • pneumatic working portM5
  • Operating pressure-0.95 bar ... 8 bar
  • DesignPoppet seat
  • Nominal size2 mm
  • Type of pilotingDirect

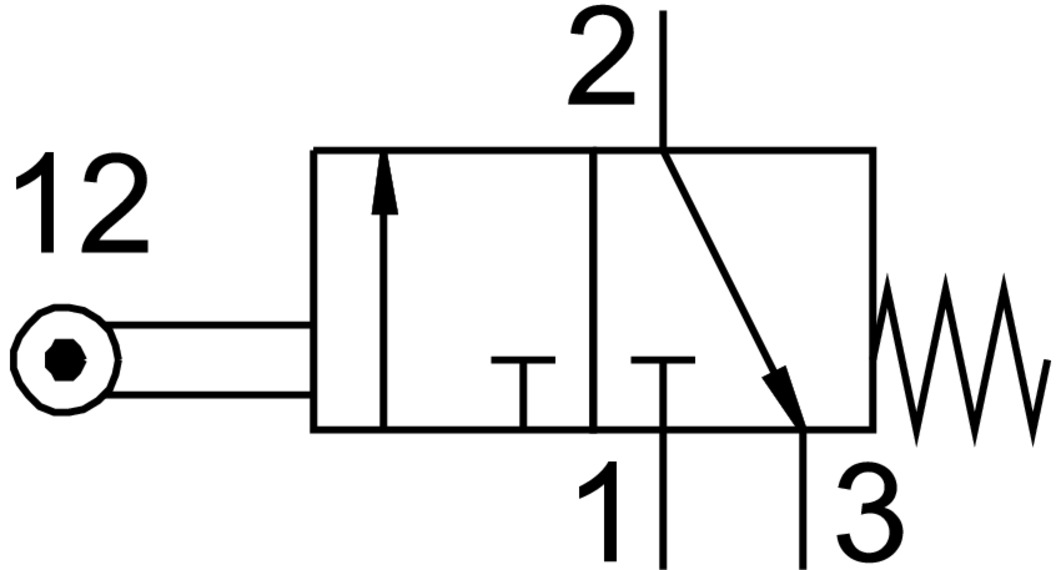

  • Symbol00991097
  • Explosion protectionZone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
  • Operating mediumCompressed air to ISO 8573-1:2010 [-:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-10 °C ... 60 °C
  • Actuating force16.5 N
  • Product weight40 g
  • Type of mountingWith through-hole
  • Pneumatic connection, port 1M5
  • Pneumatic connection, port 2M5
  • Material sealsNBR
  • Material housingDie-cast zinc

GTIN: 4052568000462

Downloads

VMEM_EN.PDF

Technical data

Reliability datasheet

Links

Spare parts

Roller lever valveRoller lever valve

SKU 3629
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
