●Easy to handle
  Easy to hold when unlocked
●Selection of pressure gauges
  Square embedded type pressure gauge, Round type pressure gauge,Digital pressure switch
●Interchangeability is maintained
  The mounting pitch for panel mounting is interchangeable between
  AR(K) and AR(K)-B, and AW(K) and AW(K)-B
  Brackets and set nuts are common to existing and new products

Specifications

Body Size30
With Backflow FunctionWith Backflow Function
Pipe Thread TypeRc
Port Size3/8
BracketWithout Bracket
Digital Pressure SwitchWithout Digital Pressure Switch
Pressure Gauge/Mounting OptionWithout Mounting Option,With Set Nut (For Panel Fitting)
Set Pressure0.05 To 0.85 Mpa Setting;X406:0.05 To 0.4 MPa Setting
Exhaust MechanismRelieving Type
Flow DirectionFlow Direction:Left To Right
KnobDownward
Unit RepresentationUnit On Product Label:MPa;Pressure Gauge In SI Units:MPa
Made To OrderStandard

Datasheet (PDF)

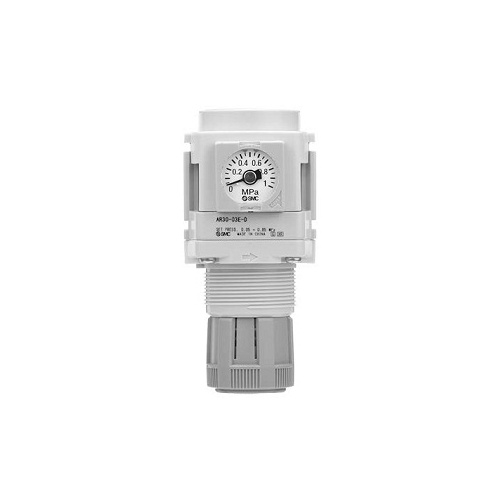

SKU AR30K-03H-D
Brand SMC
Shipping Weight 6.0000kg
Shipping Width 0.300m
Shipping Height 0.250m
Shipping Length 0.300m
