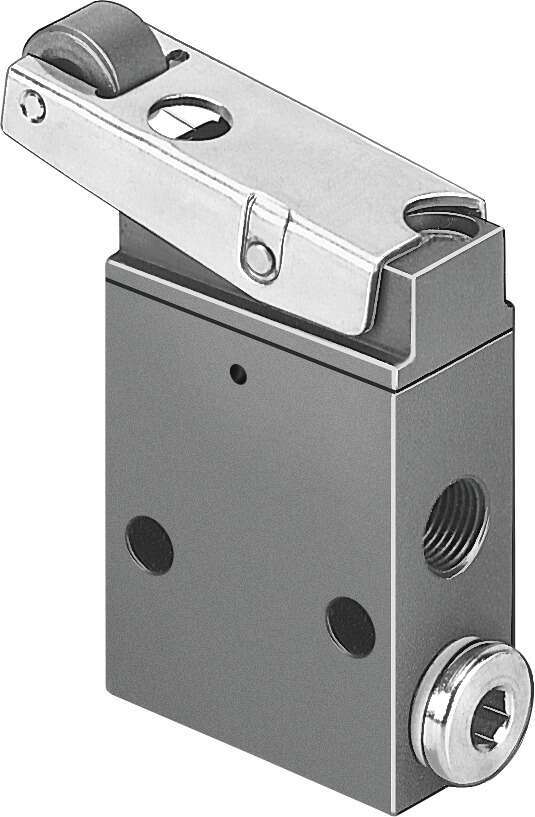

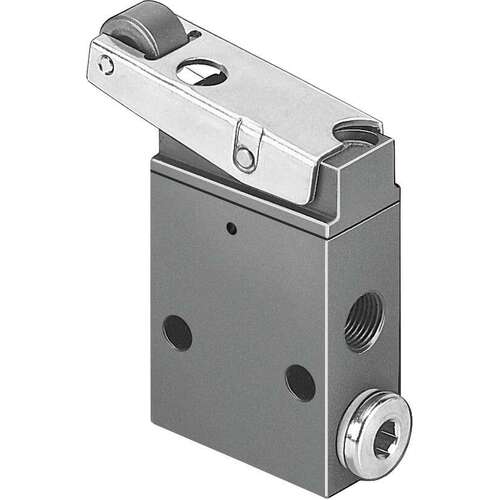

FESTO RS-3-1/8 Roller lever valve 2272

RS-3-1/8

$341.93
RRP $383.00
SAVE $41.07 (11%)


Roller lever valve

RS-3-1/8

2272



Technical Data

  • Valve function3/2-way, closed, monostable
  • Type of actuationMechanical
  • Standard nominal flow rate (standardised to DIN 1343)151 l/min
  • pneumatic working portG1/8
  • Operating pressure0.35 MPa ... 0.8 MPa
  • Operating pressure3.5 bar ... 8 bar
  • DesignPoppet seat
  • Type of resetMechanical spring
  • Nominal size3.5 mm
  • Exhaust-air functionWith flow control option
  • Sealing principleSoft
  • Mounting positionoptional
  • Type of pilotingPilot actuated
  • Pilot air supplyInternal
  • Flow directionNon-reversible

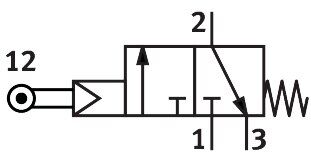

  • Symbol00991111
  • Pilot mediumCompressed air to ISO 8573-1:2010 [-:-:-]
  • Note on forced dynamizationSwitching frequency min. 1/year
  • Explosion protectionZone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
  • Operating mediumCompressed air to ISO 8573-1:2010 [-:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Actuating force1.73 N
  • Product weight104 g
  • Type of mountingWith through-hole
  • Pneumatic connection, port 1G1/8
  • Pneumatic connection, port 2G1/8
  • Pneumatic connection, port 3G1/8
  • Note on materialsRoHS-compliant
  • Material sealsNBR
  • Material housingAnodised

GTIN: 4052568000189



VMEM_EN.PDF

(2272)

SKU 2272
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
