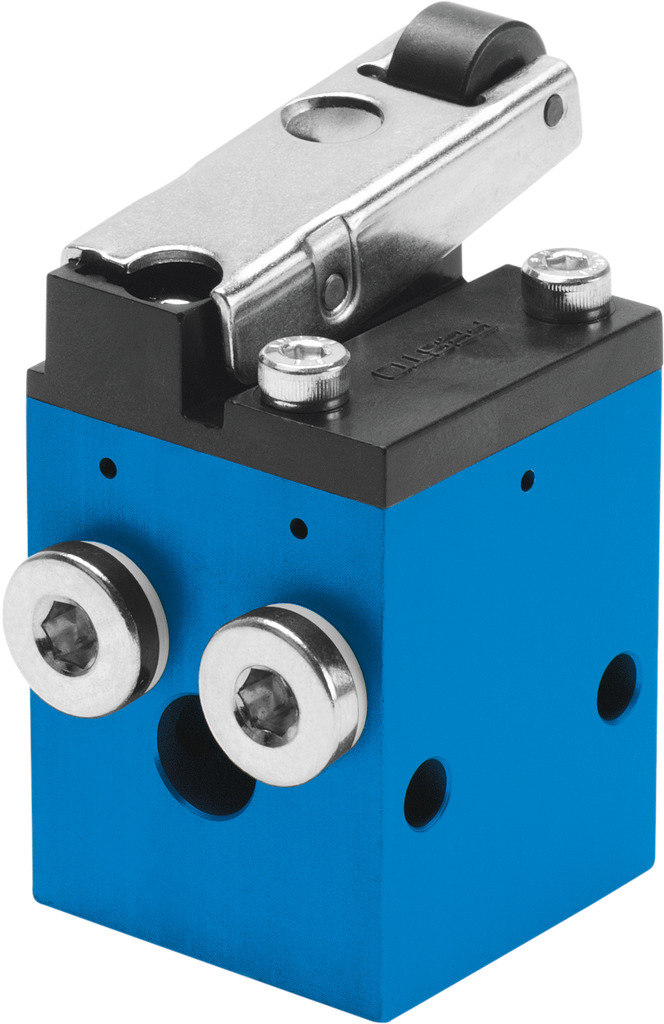

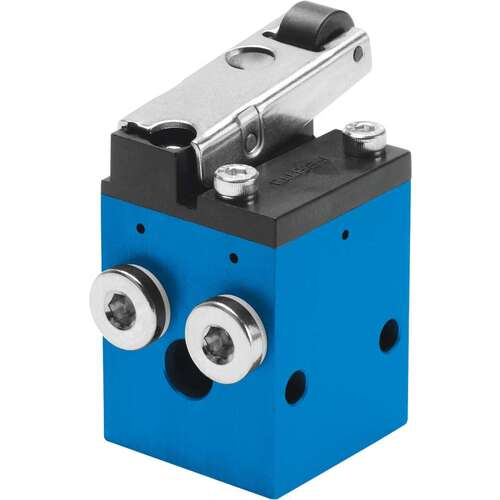

Roller lever valve

RS-4-1/8

2949

Technical Data

  • Valve function4/2-way, monostable
  • Type of actuationMechanical
  • Standard nominal flow rate (standardised to DIN 1343)128 l/min
  • pneumatic working portG1/8
  • Operating pressure0.35 MPa ... 0.8 MPa
  • Operating pressure3.5 bar ... 8 bar
  • DesignPoppet seat
  • Type of resetMechanical spring
  • Nominal size3.5 mm
  • Exhaust-air functionWith flow control option
  • Sealing principleSoft
  • Mounting positionoptional
  • Type of pilotingPilot actuated
  • Pilot air supplyInternal
  • Flow directionNon-reversible

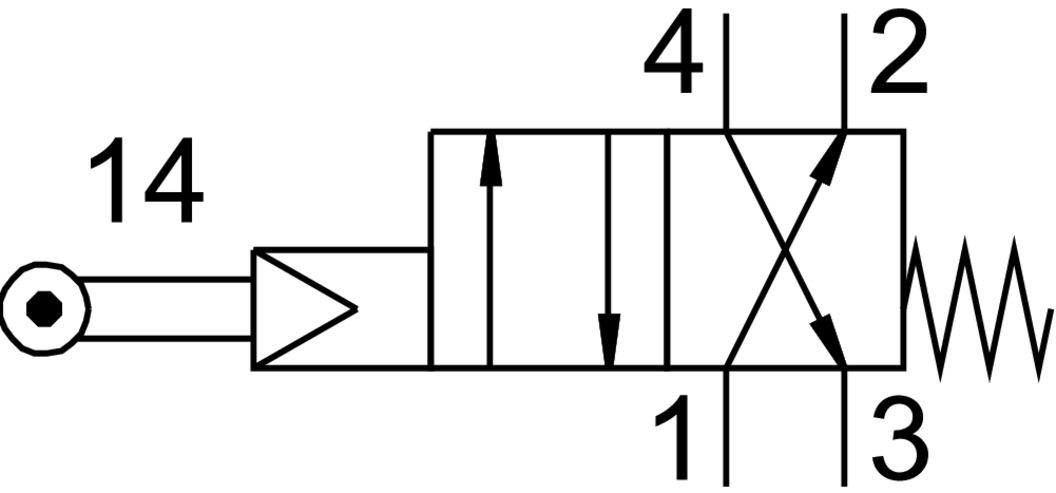

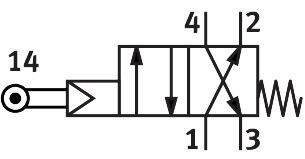

  • Symbol00991139
  • Pilot mediumCompressed air to ISO 8573-1:2010 [-:-:-]
  • Note on forced dynamizationSwitching frequency min. 1/year
  • Explosion protectionZone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
  • Operating mediumCompressed air to ISO 8573-1:2010 [-:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Actuating force1.77 N
  • Product weight230 g
  • Type of mountingWith through-hole
  • Pneumatic connection, port 1G1/8
  • Pneumatic connection, port 2G1/8
  • Pneumatic connection, port 3G1/8
  • Pneumatic connection, port 4G1/8
  • Note on materialsRoHS-compliant
  • Material sealsNBR
  • Material housingAnodised

GTIN: 4052568110253



VMEM_EN.PDF

CAD data

Spare parts

Product Documentation

Technical data

Reliability datasheet



Roller lever valve

Roller lever valve

SKU 2949
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
