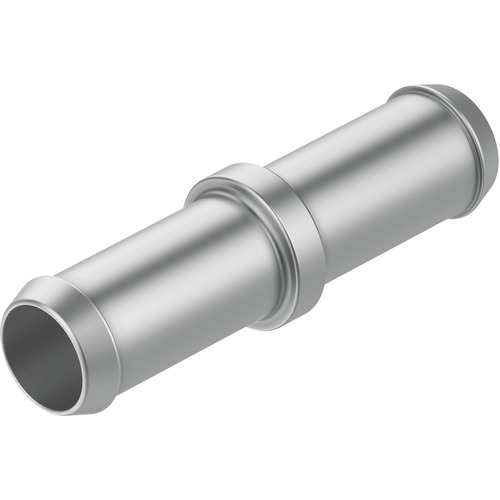

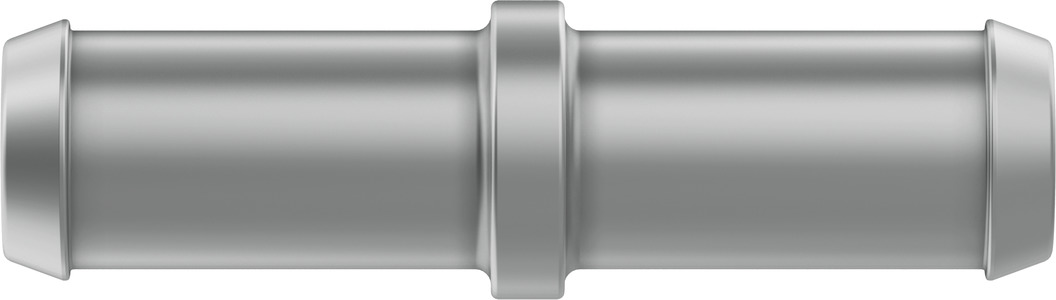

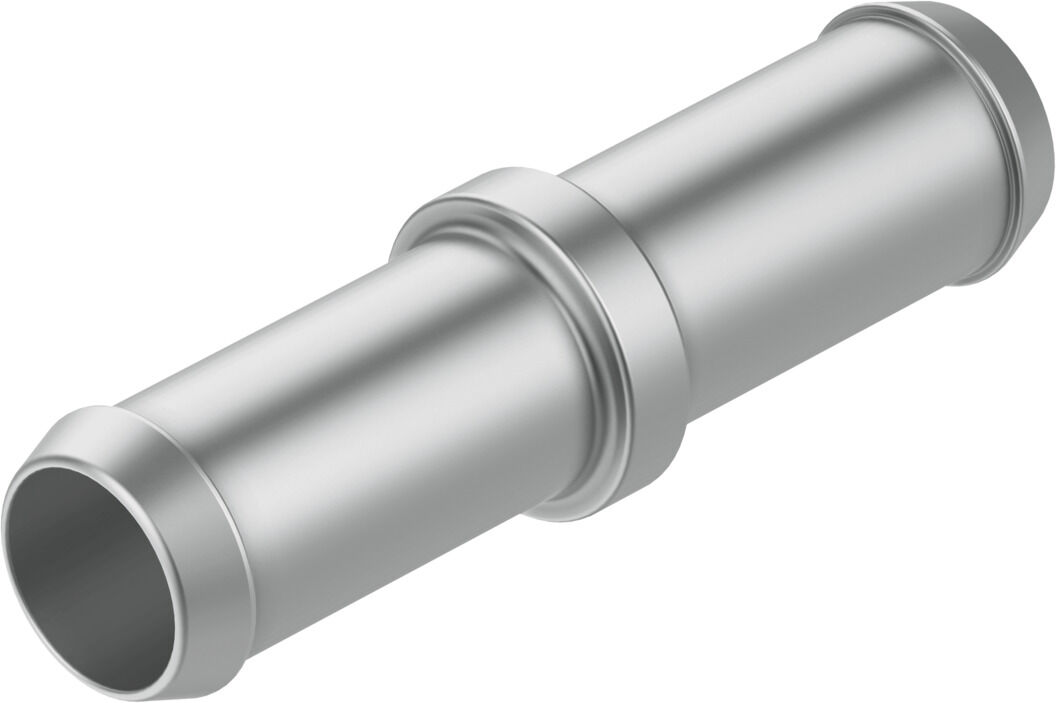

Barbed tubing connector

RTU-PK-3/4

4499

Pneumatic connection, port 1
For tubing outside diameter of 6 mm
Pneumatic connection, port 2
For tubing outside diameter of 4 mm
Nominal size
2.5 mm
Ambient temperature
0 °C - 60 °C

GTIN: 4052568019037

Technical Data

  • Nominal size2.5 mm
  • Operating pressure complete temperature range-0.095 MPa ... 1 MPa
  • Operating pressure complete temperature range-0.95 bar ... 10 bar
  • Operating pressure complete temperature range-13.775 psi ... 145 psi
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature0 °C ... 60 °C
  • Pneumatic connection, port 1For tubing outside diameter of 6 mm
  • Pneumatic connection, port 2For tubing outside diameter of 4 mm
  • Ambient temperature32 °F ... 140 °F
  • Note on materialsRoHS-compliant
  • Material housingBrass

Downloads

CN_EN.PDF

Technical data

Links

Spare parts

Pneumatic connection, port 1 - For tubing outside diameter of 6 mm

Pneumatic connection, port 2 - For tubing outside diameter of 4 mm

Nominal size - 2.5 mm

Barbed tubing connectorBarbed tubing connector

SKU 4499
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
