SE-1/4-B

FESTO

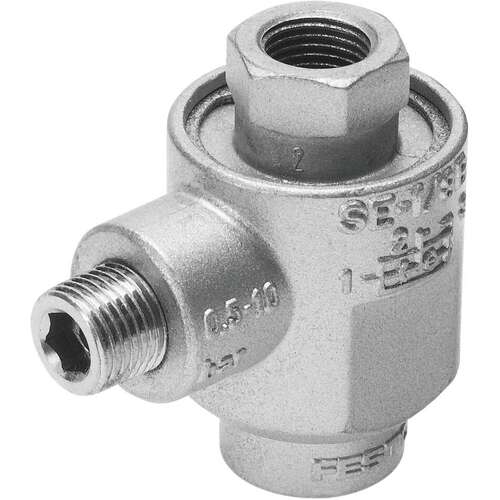

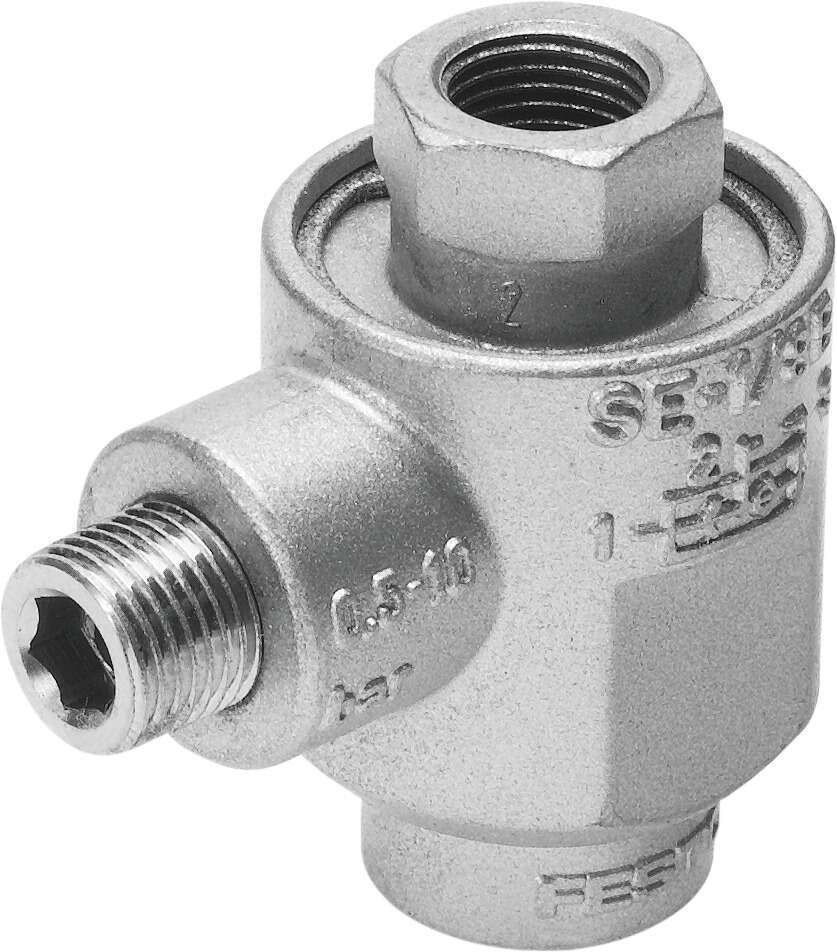

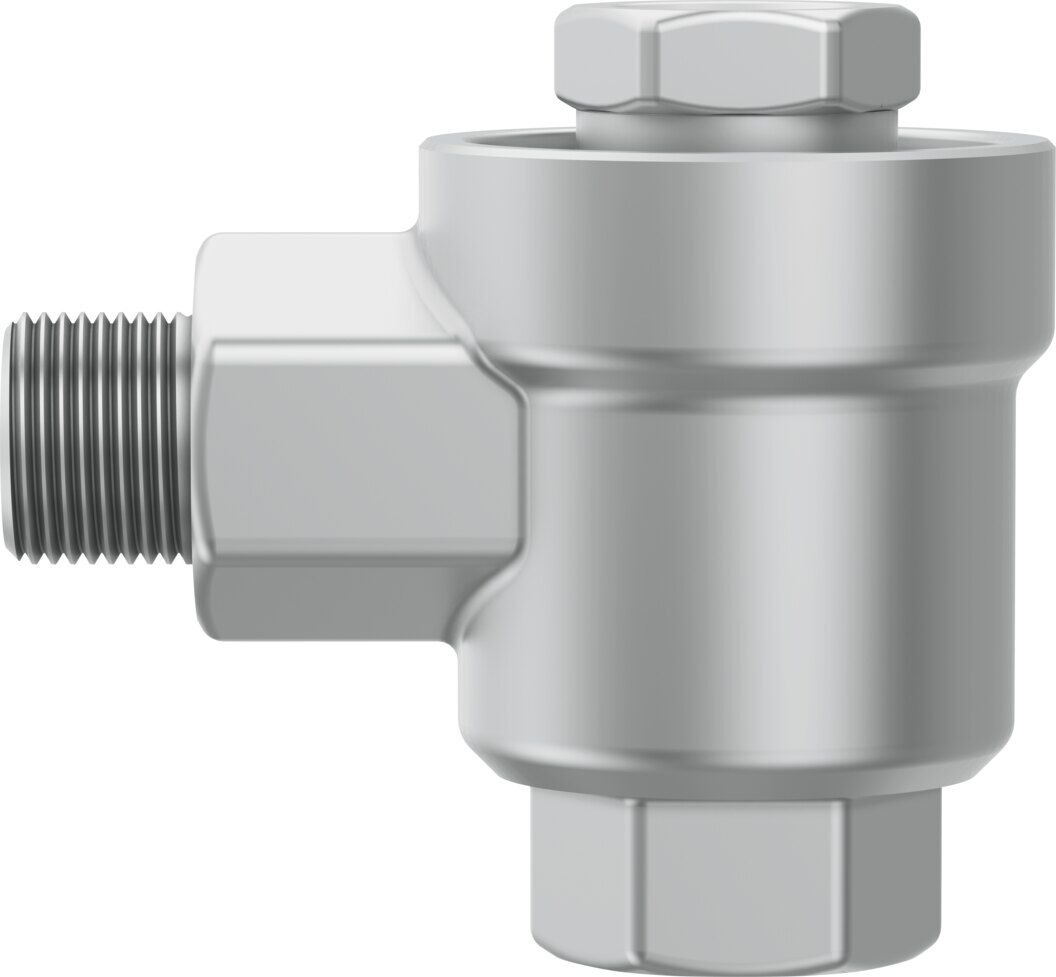

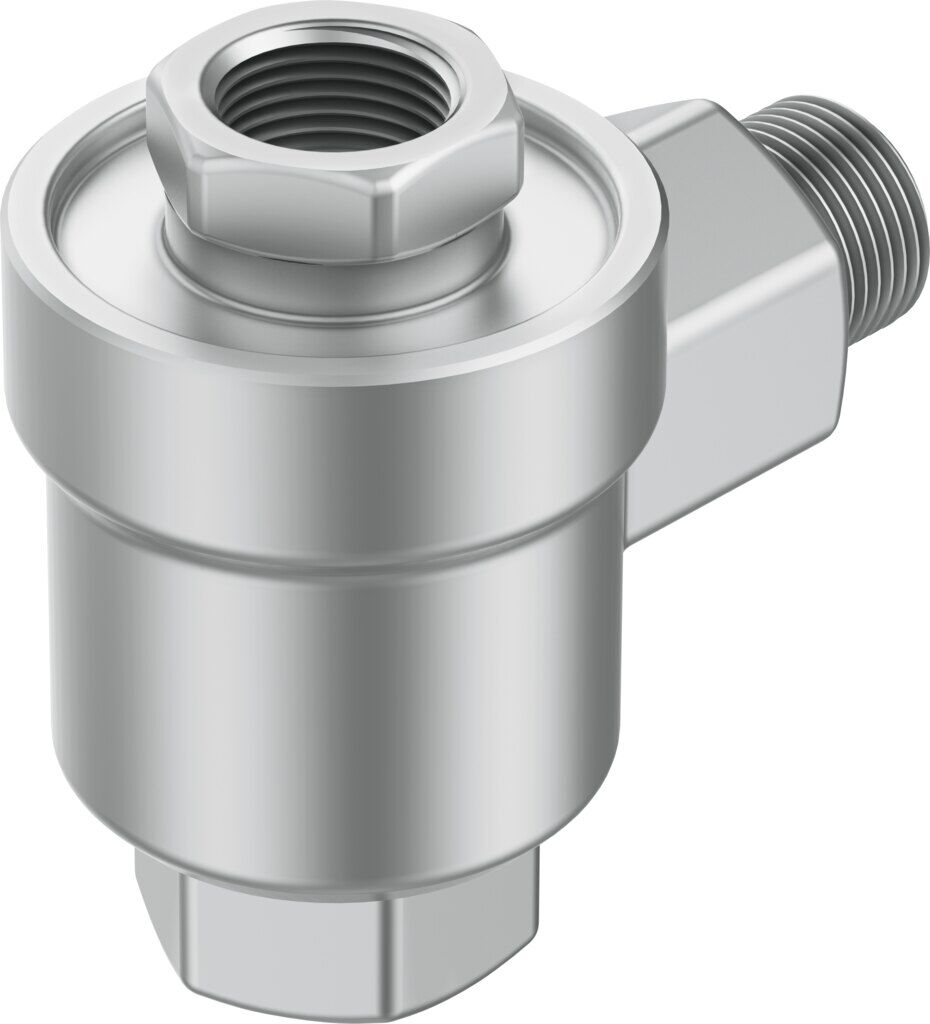

Quick exhaust valve (x10 pack)

SE-1/4-B

9686

Valve function
Quick exhaust
Pneumatic connection, port 1
G1/4
Standard nominal flow rate, exhaust 0.6->0.5 MPa (6->5 bar, 87->72.5 psi)
1200 l/min
Operating pressure
0.5 bar - 10 bar

GTIN: 4052568001988

Technical Data

  • Valve functionQuick exhaust
  • Pneumatic connection, port 1G1/4
  • Pneumatic connection, port 2G1/4
  • Type of mountingScrew-in
  • Standard nominal flow rate, exhaust 0.6->0.5 MPa (6->5 bar, 87->72.5 psi)1200 l/min
  • Standard nominal flow rate, air flow 0.6->0,5 MPa (6->5 bar, 87->72.5 psi)960 l/min
  • Operating pressure0.5 bar ... 10 bar
  • Ambient temperature-20 °C ... 75 °C
  • Material housingDie-cast zinc
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Nominal size7 mm
  • Mounting positionoptional
  • Symbol00991459
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-20 °C ... 75 °C
  • Product weight100 g
  • Pneumatic connection, port 3G1/4
  • Material sealsNBR



SEU_EN.PDF





Quick exhaust valve

Quick exhaust valve

SKU 9686
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
